Door Lock Key Cylinder Switch
Door Lock Key Cylinder Switch

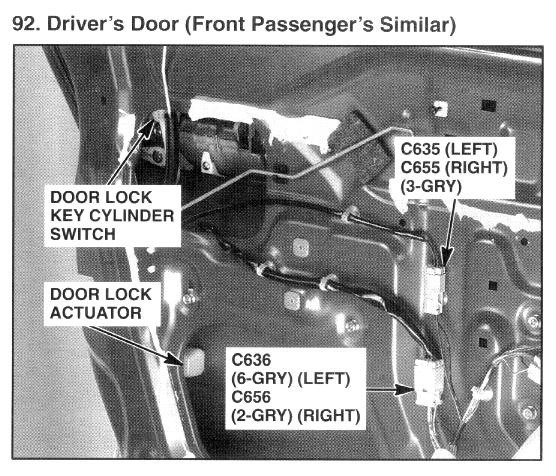

Driver's Door (Front Passenger's Similar)
