Removal and Installation

1. Disconnect the air mix control cable from the heater unit.
2. Remove the center console.
3. Remove the radio/cassette player.

Heater Control Panel Replacement:

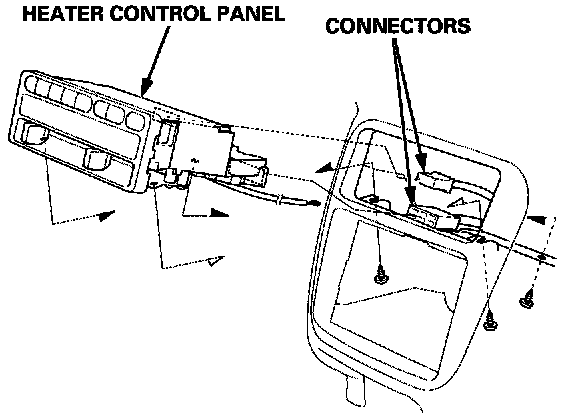

4. Remove the three self-tapping screws, then disconnect the connectors, and remove the heater control panel.

NOTE: The locking tabs are on the bottom of the connectors.

5. Install in the reverse order of removal, and adjust the air mix control cable at the heater unit. If necessary, adjust the heater valve cable.
