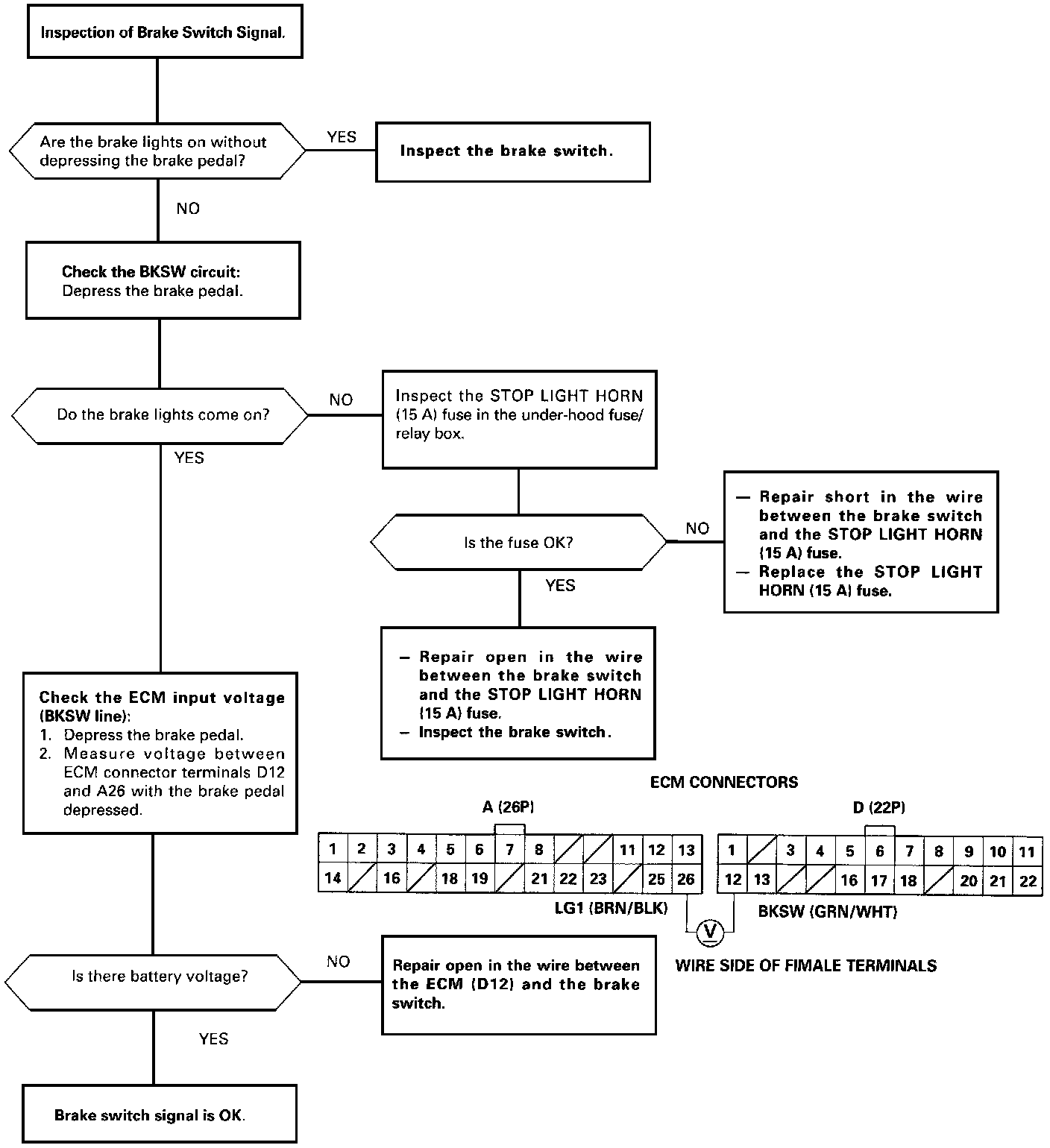

Brake Signal: Testing and Inspection




This signals the Engine Control Module (ECM) when the Brake Pedal is depressed.
