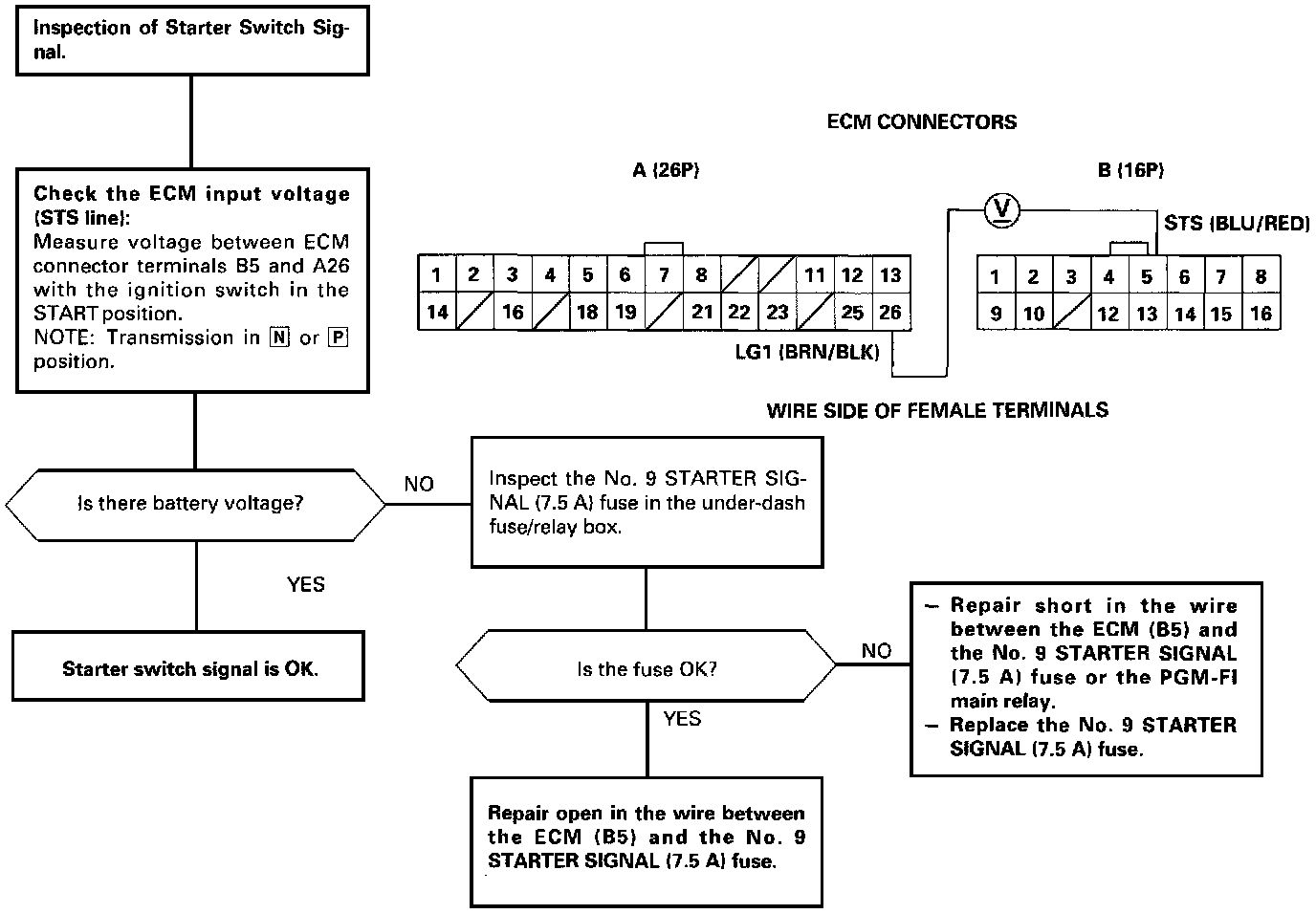

Cranking Signal: Testing and Inspection




This signals the Engine Control Module (ECM) when the Engine is cranking.
