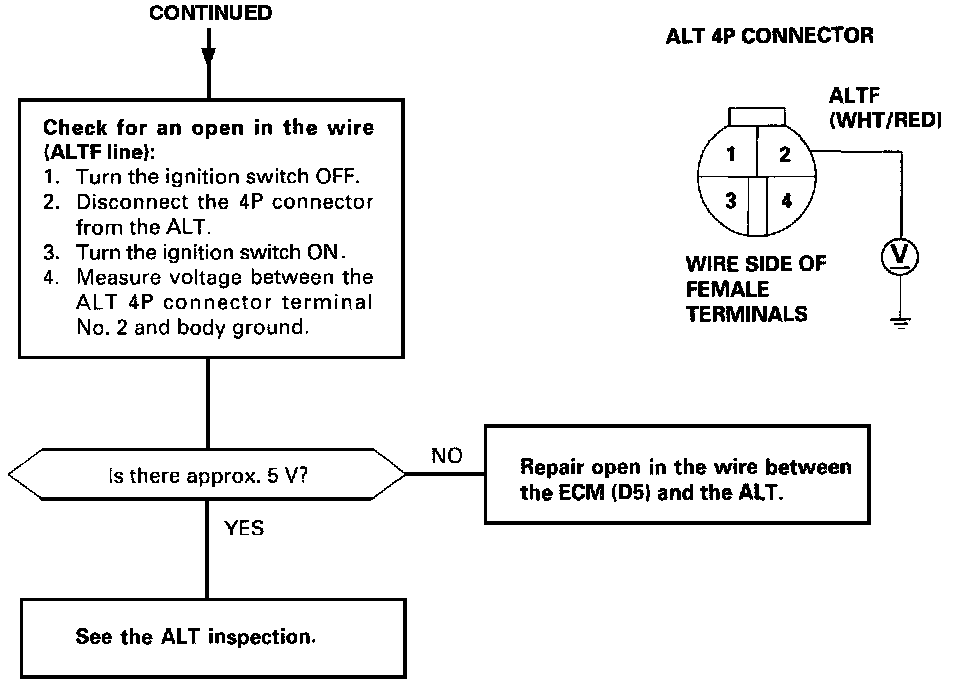

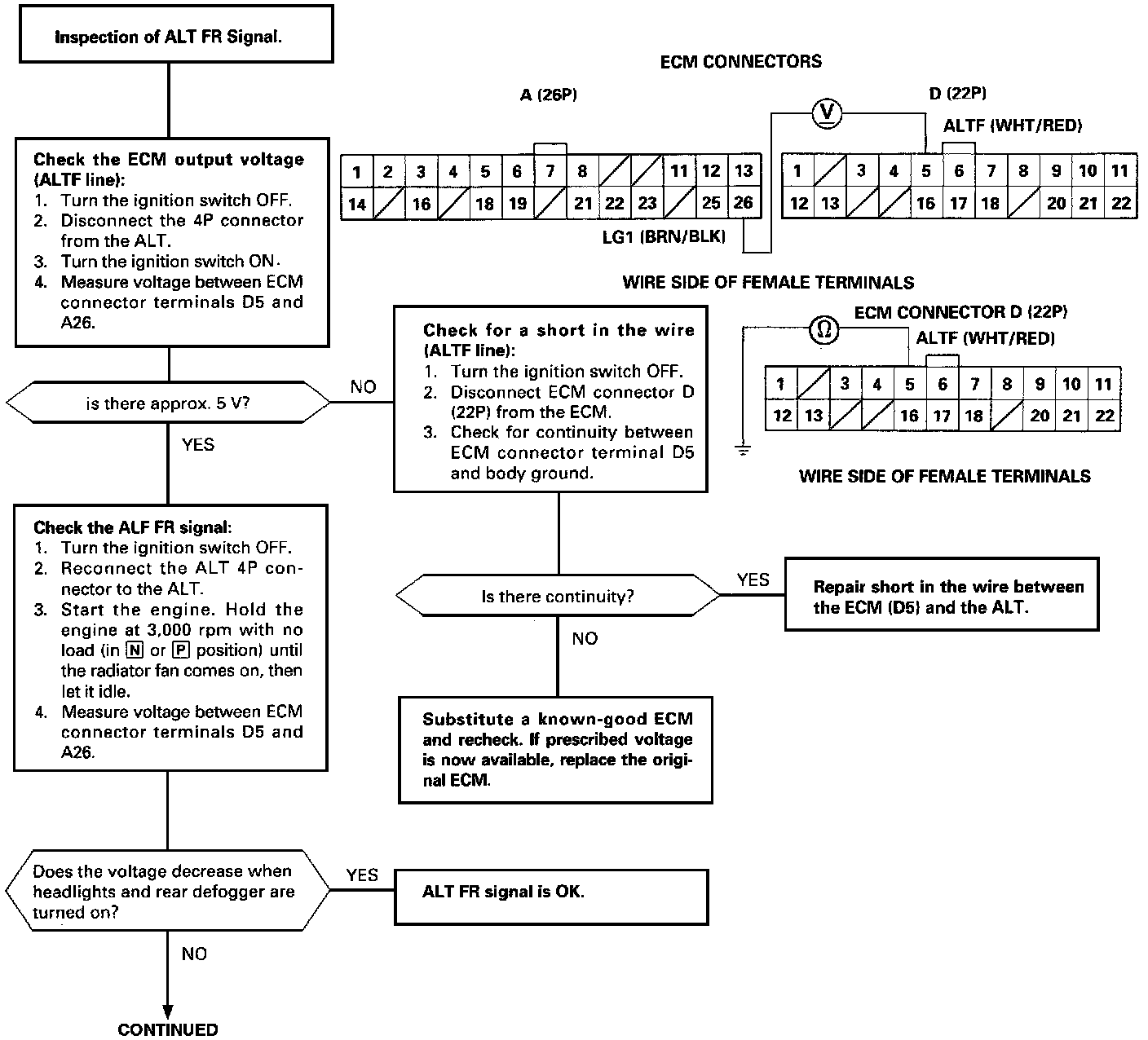

Voltage Signal: Testing and Inspection








This signals the Engine Control Module (ECM) when the Alternator is charging.
