Main Relay and Fuel Control
Main Relay and Fuel Control

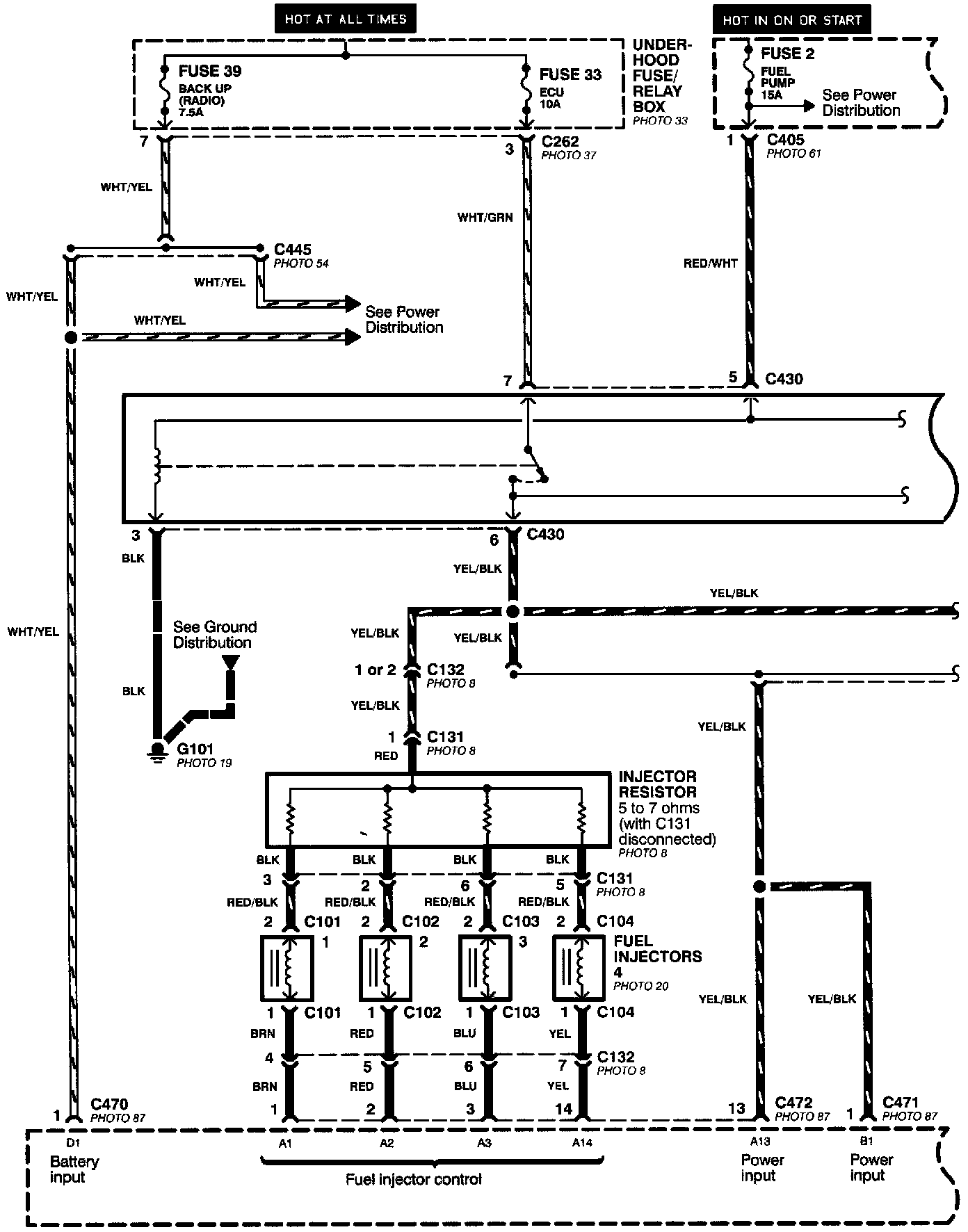

Programed Fuel Injection System (PGM-FI)-Main Relay And Fuel Control (Part 1 Of 2):

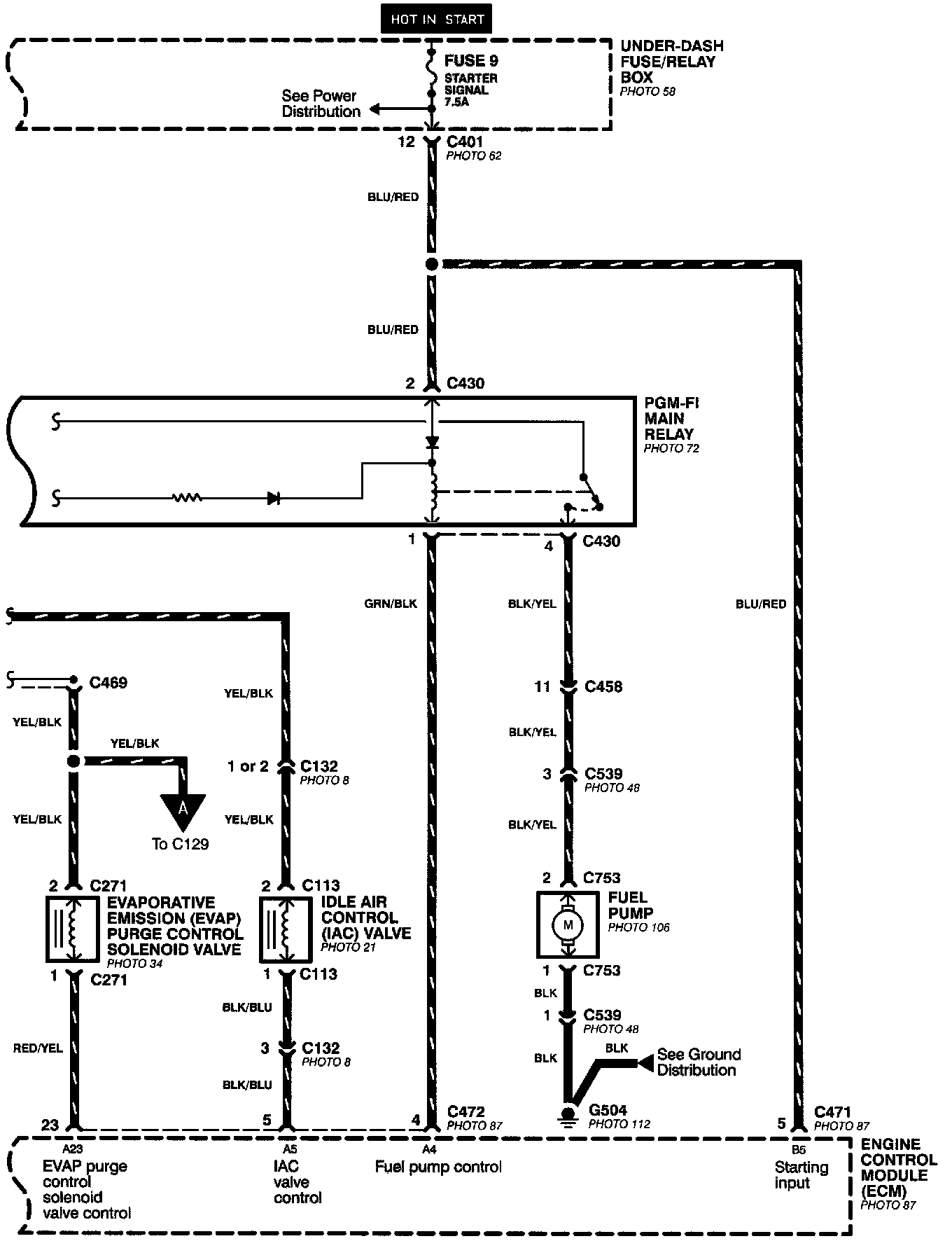

Programed Fuel Injection System (PGM-FI)-Main Relay And Fuel Control (Part 2 Of 2):
