Reassembly
1.

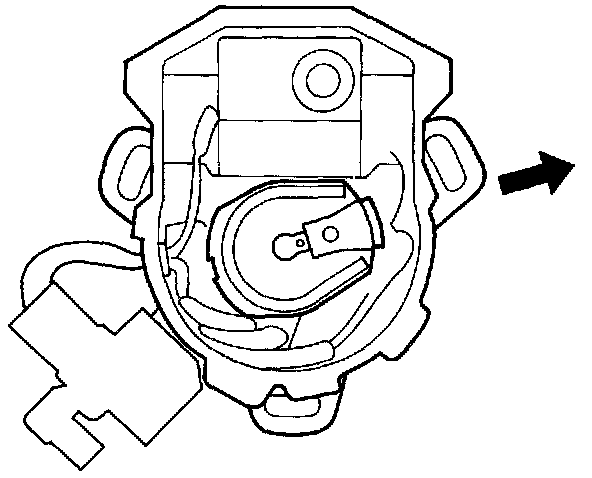

When reassembling the
Distributor, install the Distributor Ignition
(DI) Rotor, then turn it so that it faces in the direction shown (toward the No. 1 Cylinder).
2.

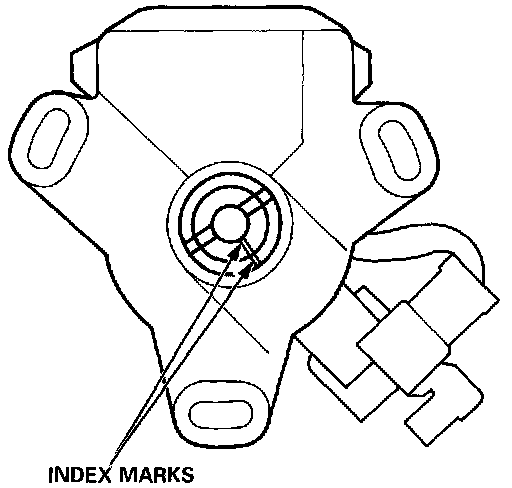

Align the index mark on the DI Housing with the index mark on the end of the Shaft.
