Removal
1.

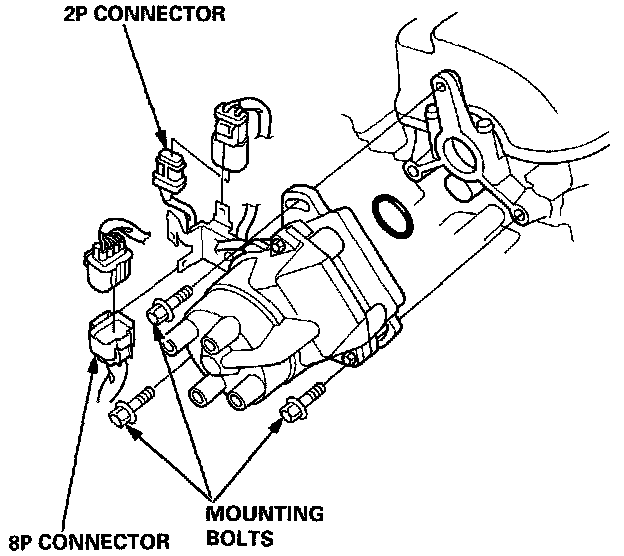

Disconnect the 2 P and 8 P Connectors from the
Distributor.
2.
Disconnect the Ignition Wires from the
Distributor Ignition
(DI) Cap.
3.
Remove the three Mounting Bolts from the
Distributor, then remove the Distributor from the Cylinder Head.
