Ignition Coil: Service and Repair
REPLACEMENT 1.

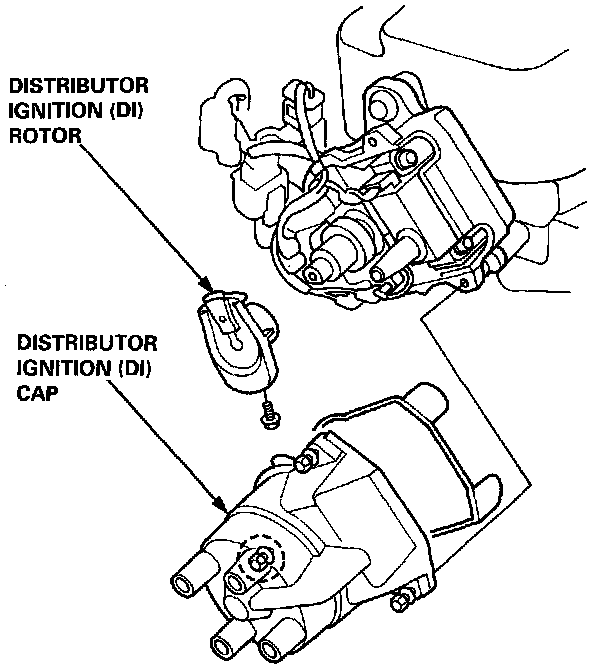

With the
Ignition Switch "OFF", remove the
Distributor Ignition
(DI) Cap and the DI Rotor.
2.
Disconnect the BLK/YEL and BLU2 wires from the Coil.
3.

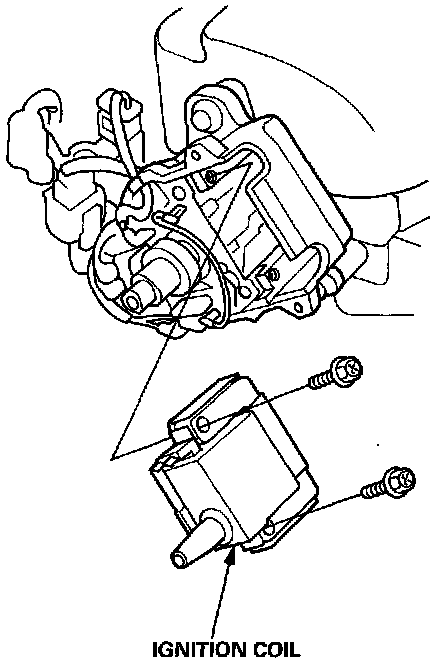

Remove the two bolts, and slide the
Ignition Coil out of the DI Housing.
