Torque Specifications
Intake:

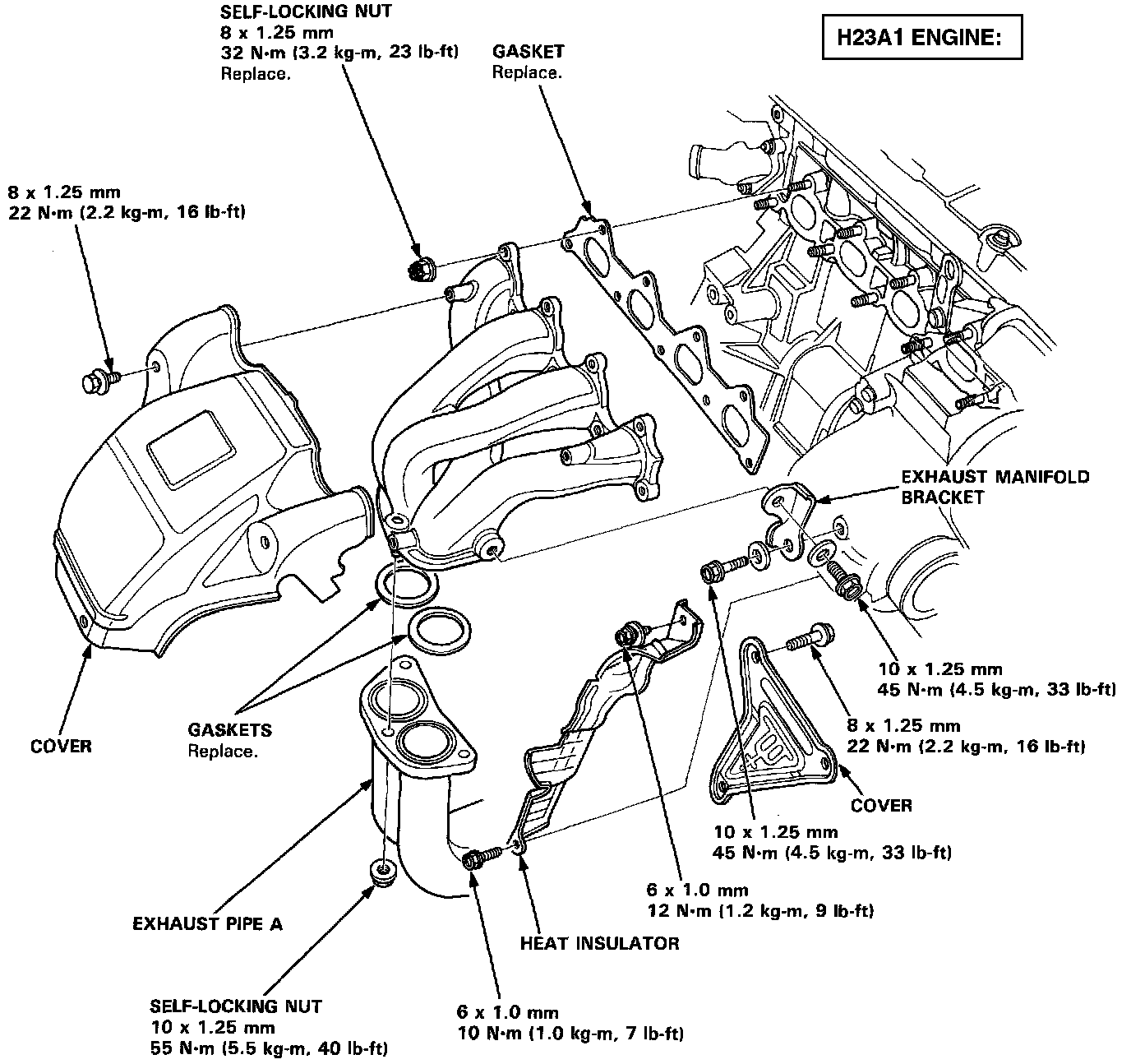

Exhaust:

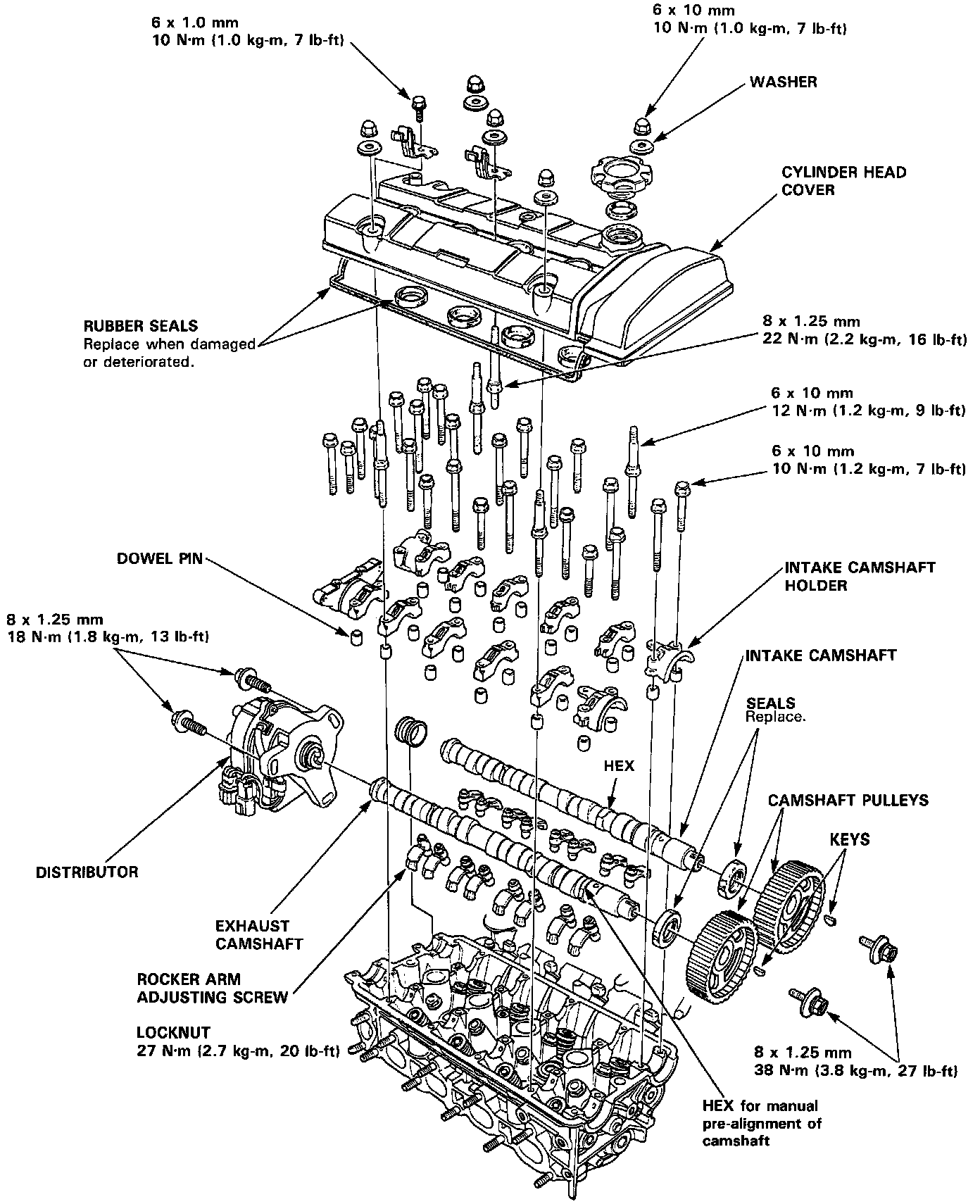

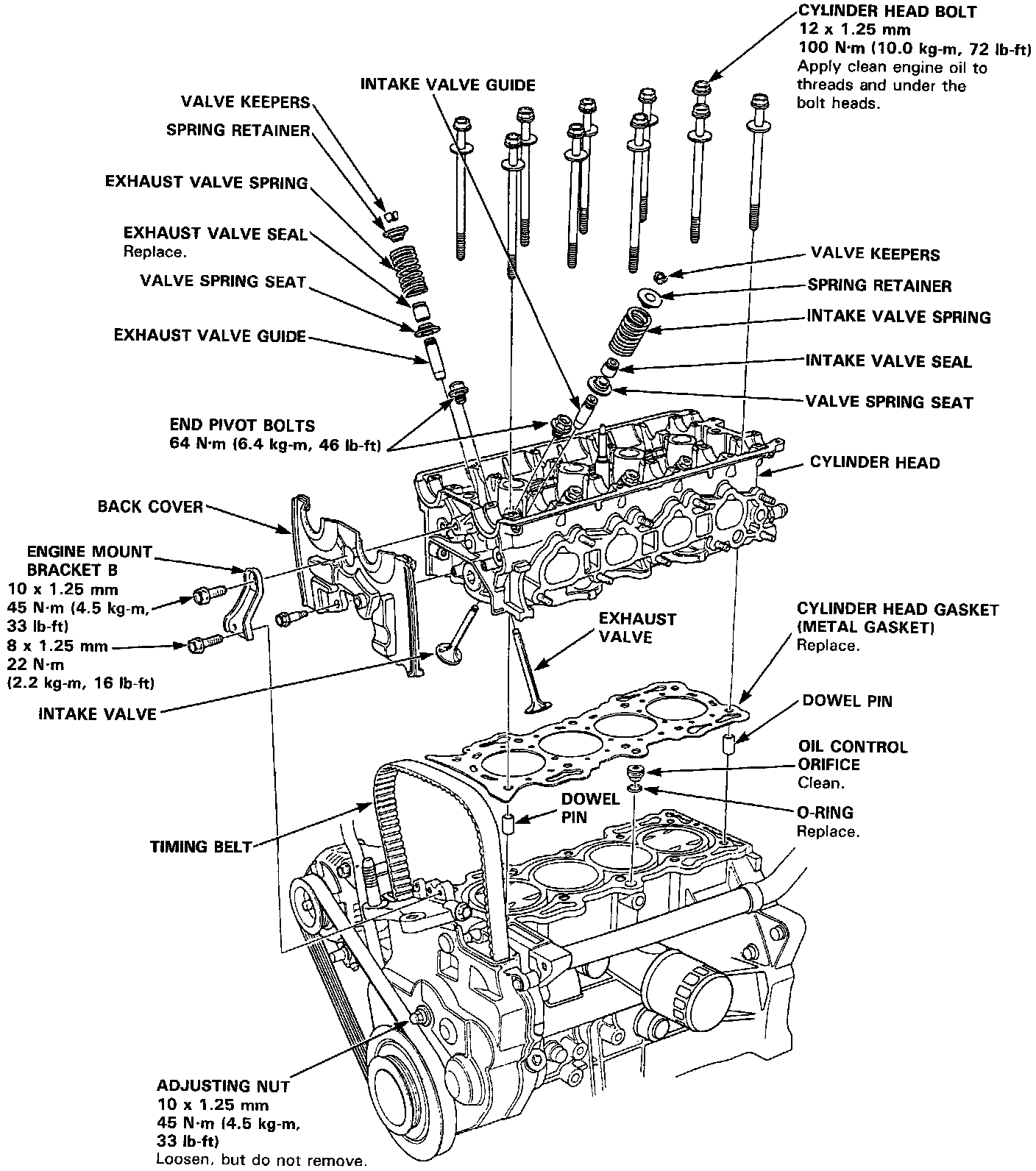

Upper Engine:
CAMSHAFT HOLDERS
Head Bolt Loosening Sequence:

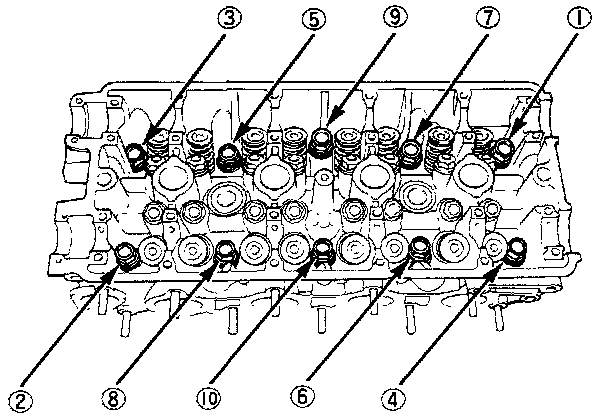

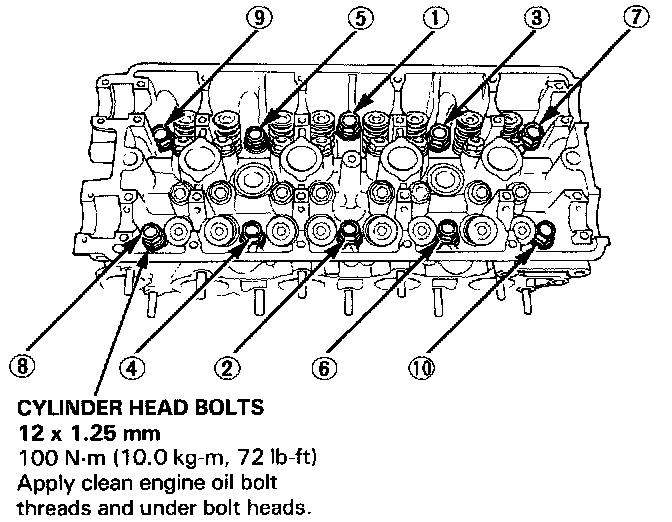

Head Bolt Torque Sequence:
Torque cylinder head attaching bolts in three steps; first step to 29 ft. lbs., second step to 51 ft. lbs., third step to 72 ft. lbs.

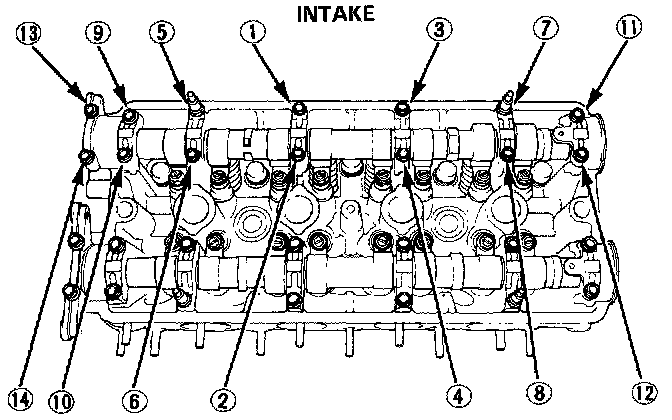

Intake Cam Holder Torque Sequence:

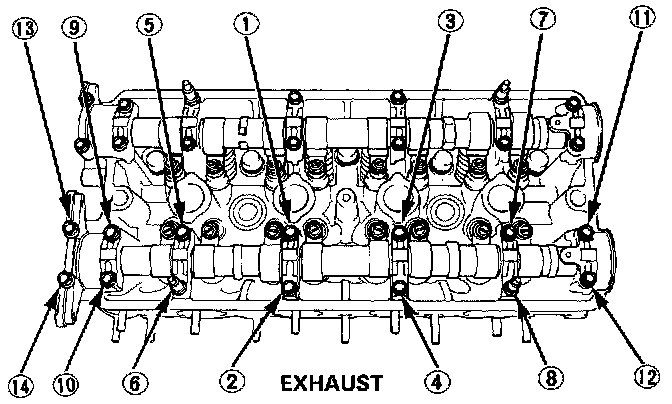

Exhaust Cam Holder Torque Sequence:

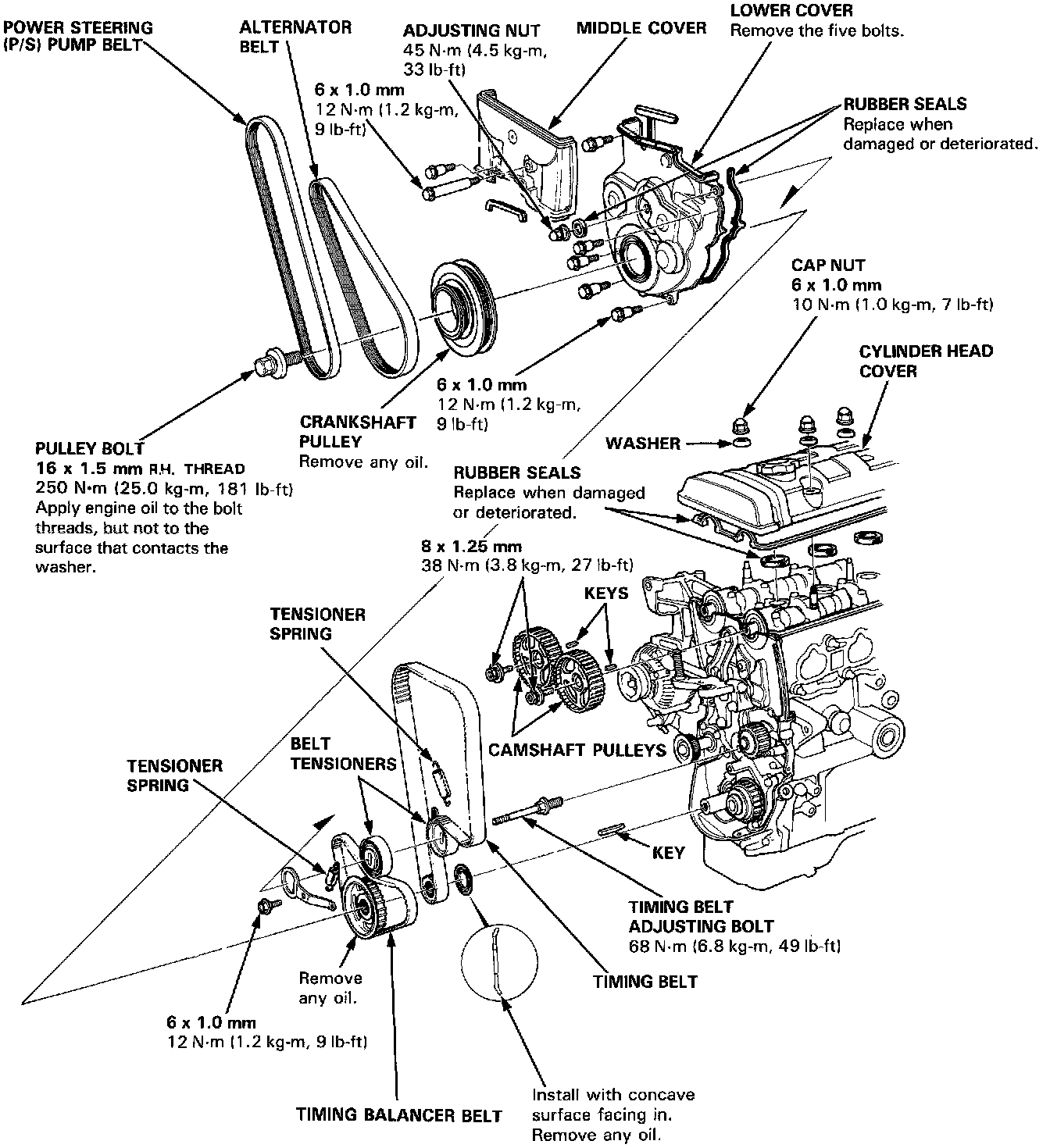

Timing Components:
Lower Engine:
Main Bolt Torque Sequence:
Connecting Rod:
Flywheel (M/T) Bolt Torque/Sequence:
Drive Plate (A/T) Torque/Sequence:
