Torque Specifications

Intake:

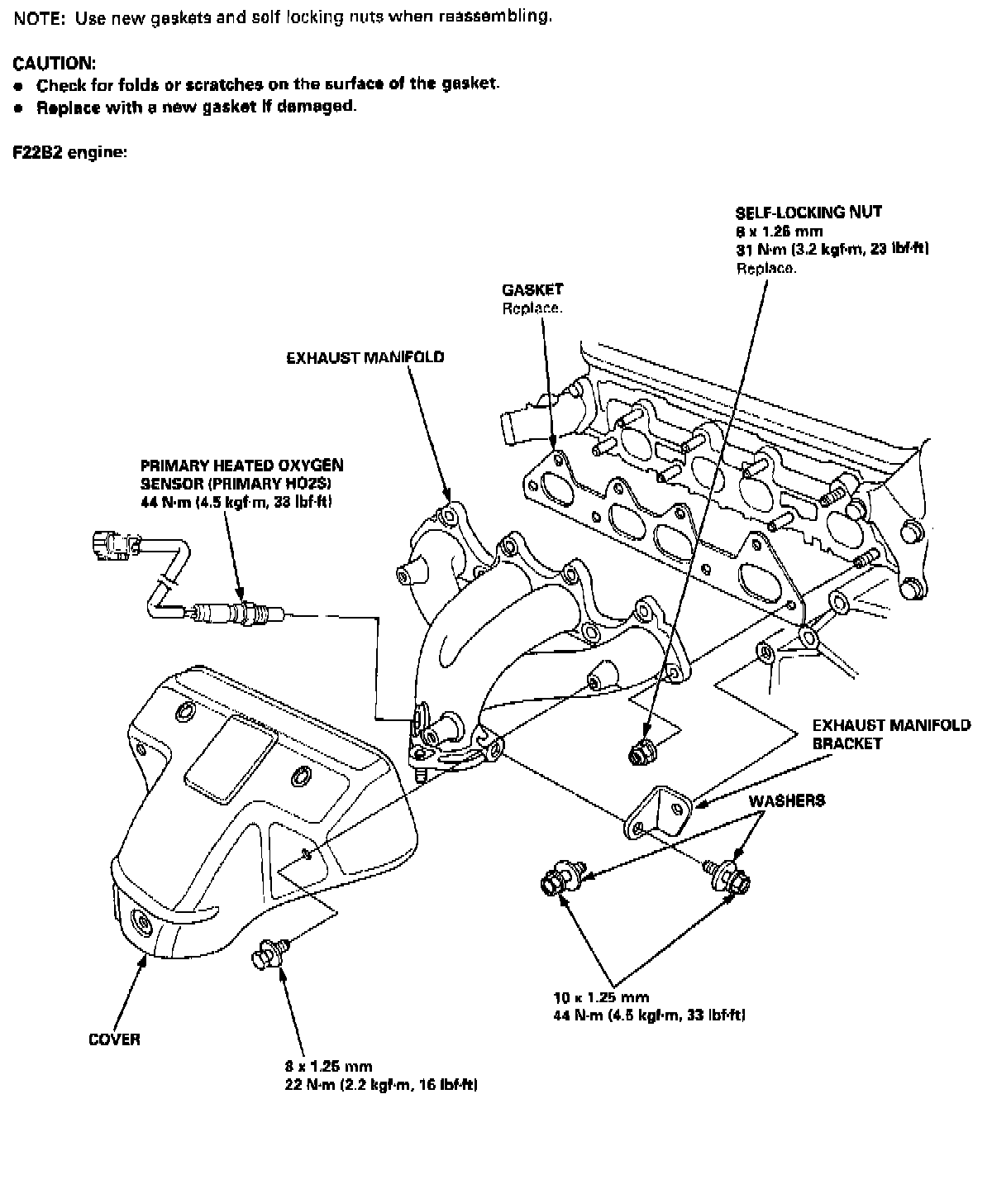

Exhaust Manifold:

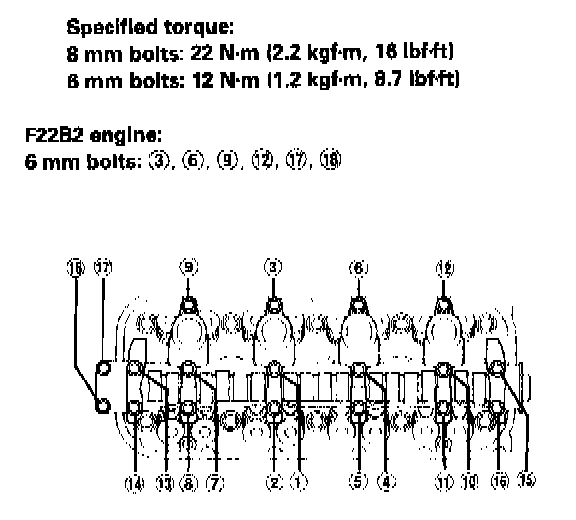

Cam Holder Torque/Sequence:

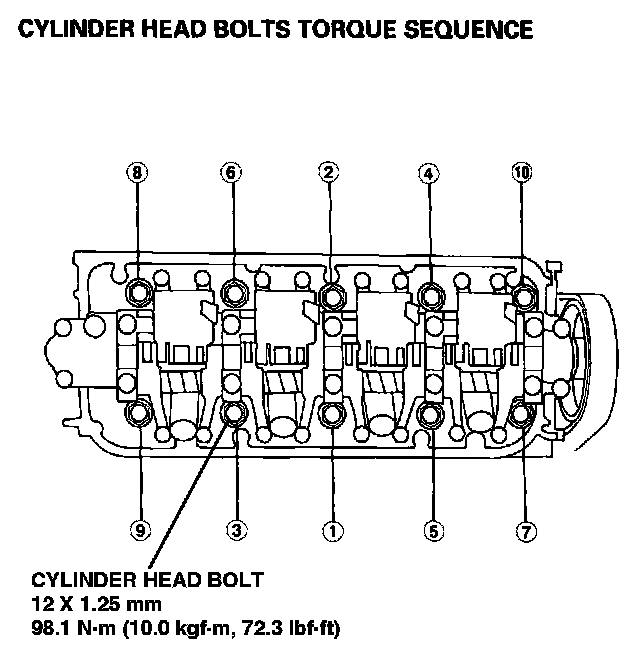

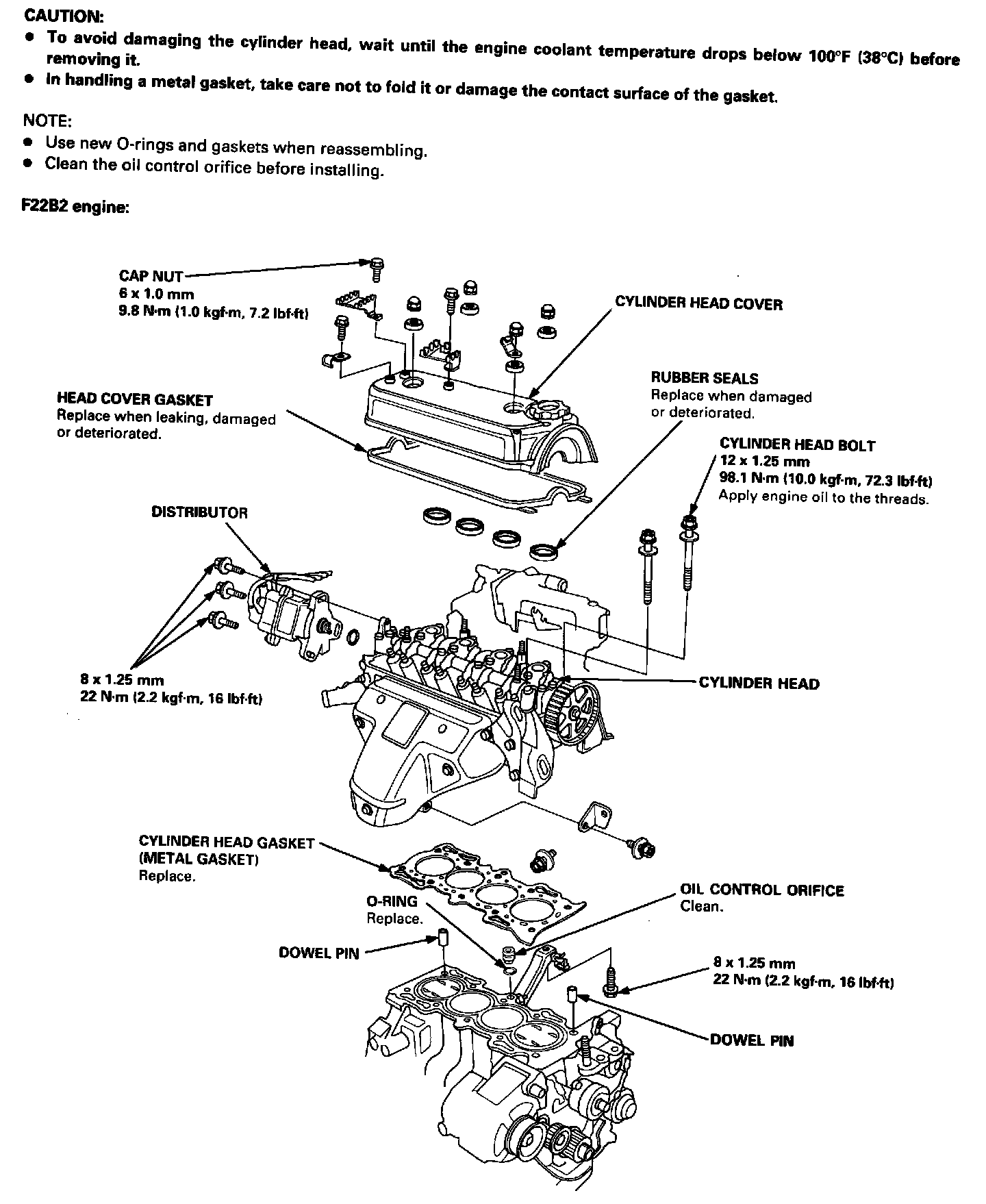

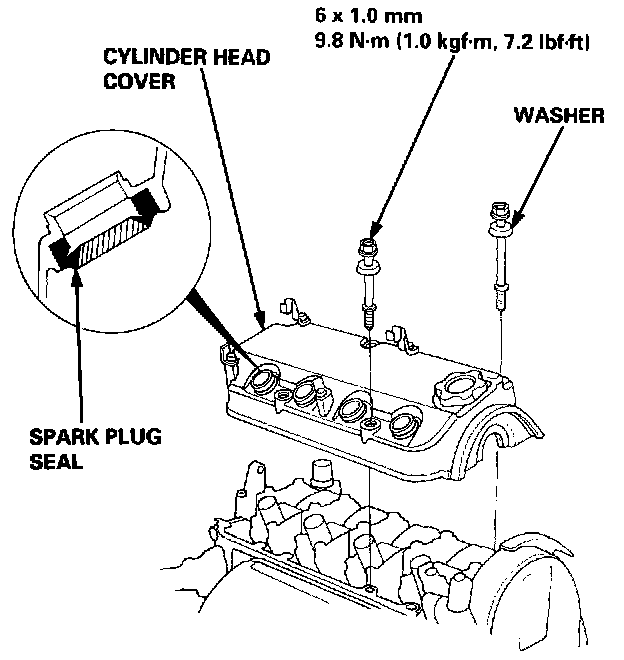

Head Bolt Torque Sequence:

Tighten the cylinder head bolts sequentially in three steps:

1st step torque: 39 N.m (4.0 kgf.m, 29 lbf.ft)
2nd step torque: 69 N.m (7.0 kgf.m, 51 lbf.ft)
3rd step torque: 98.1 N.m (10.0 kgf.m, 72.3 lbf.ft)

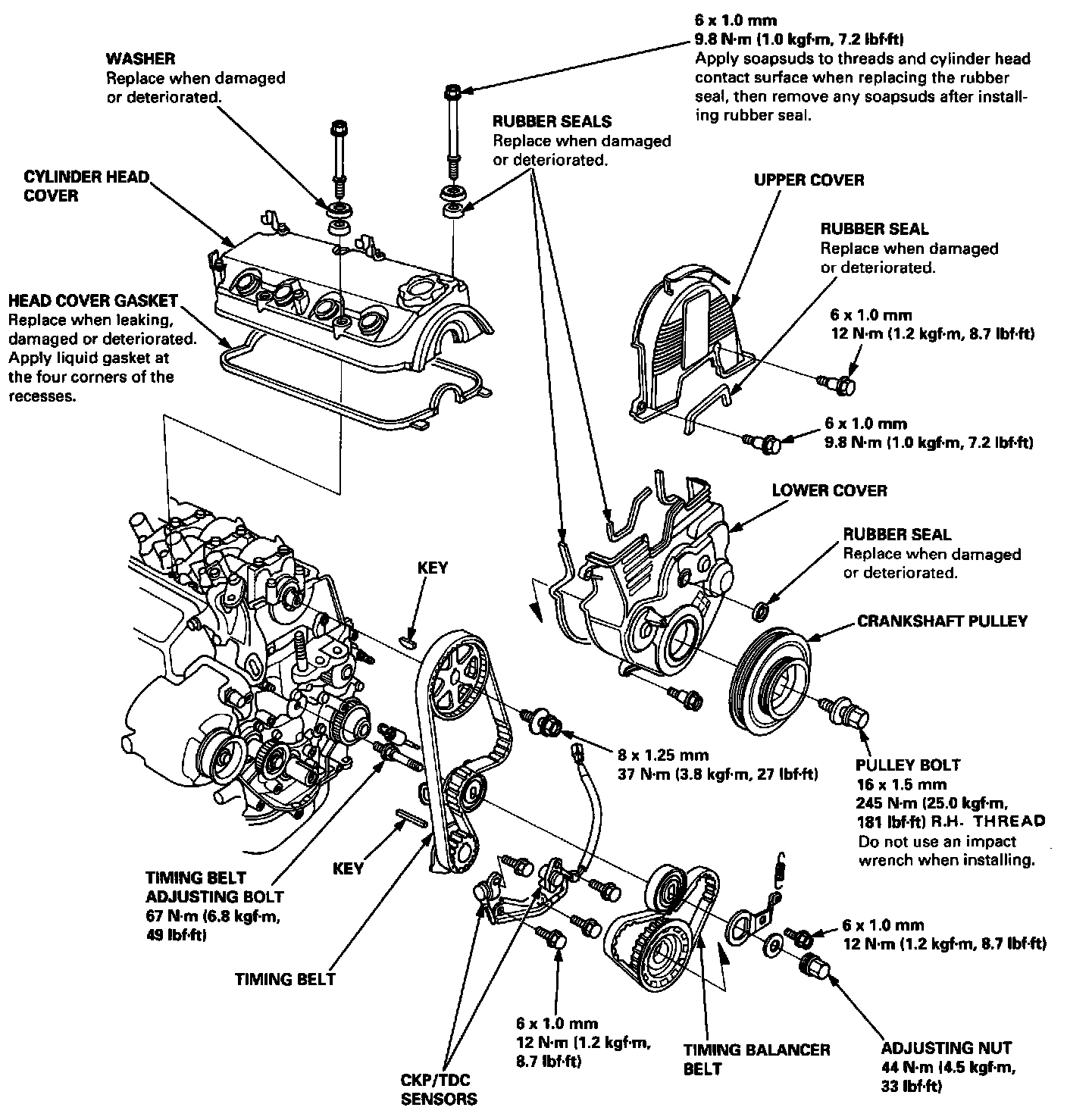

Timing Components:

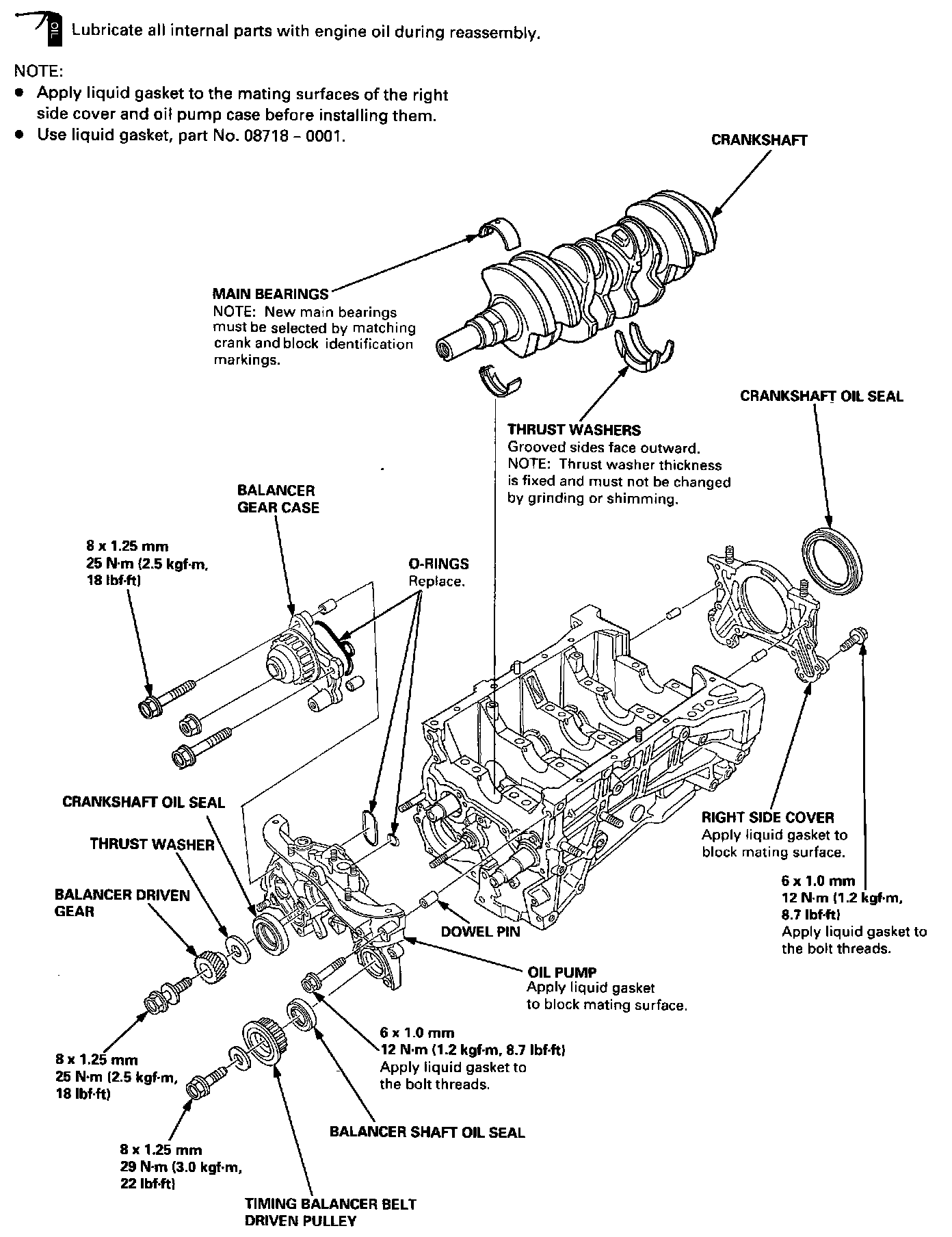

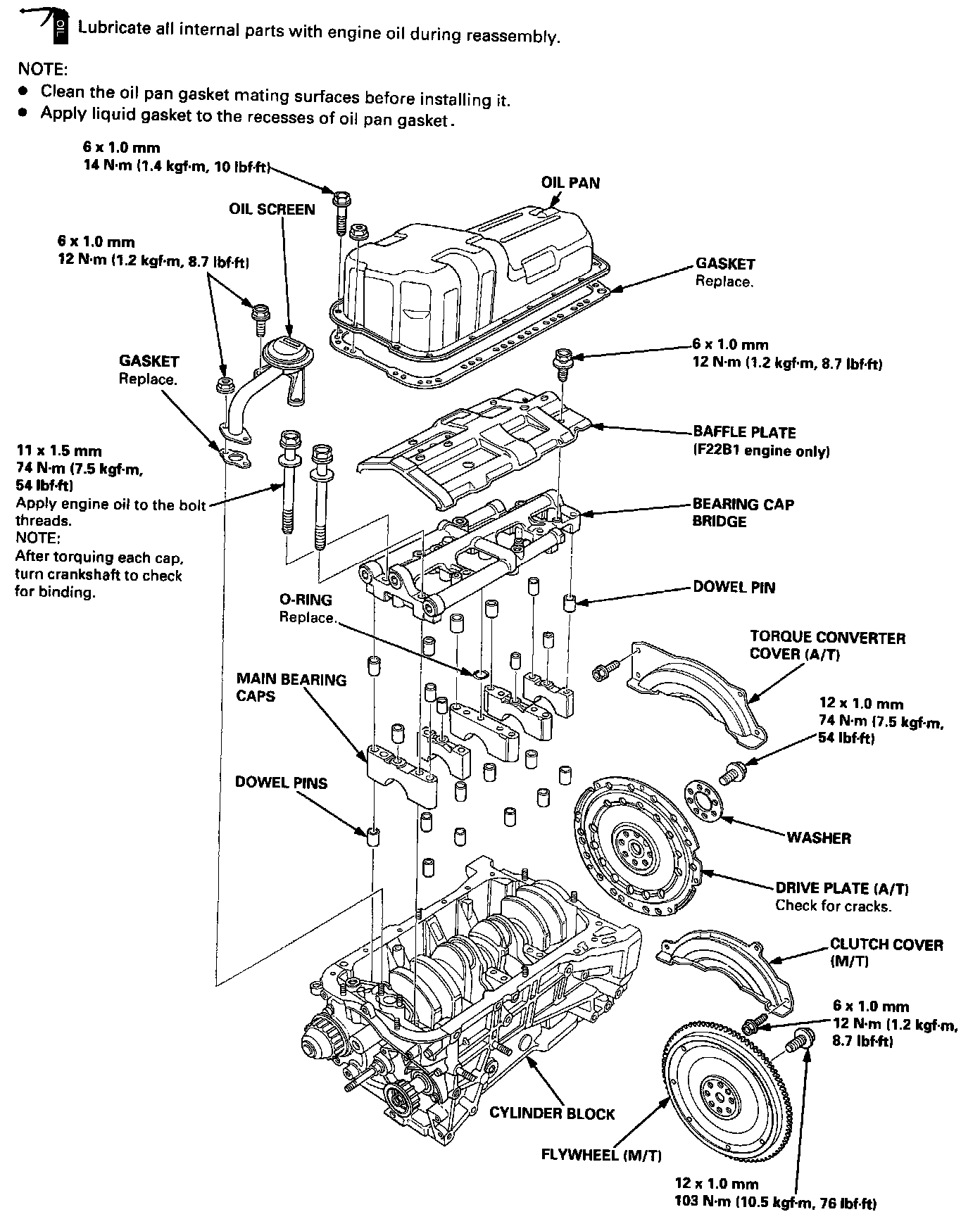

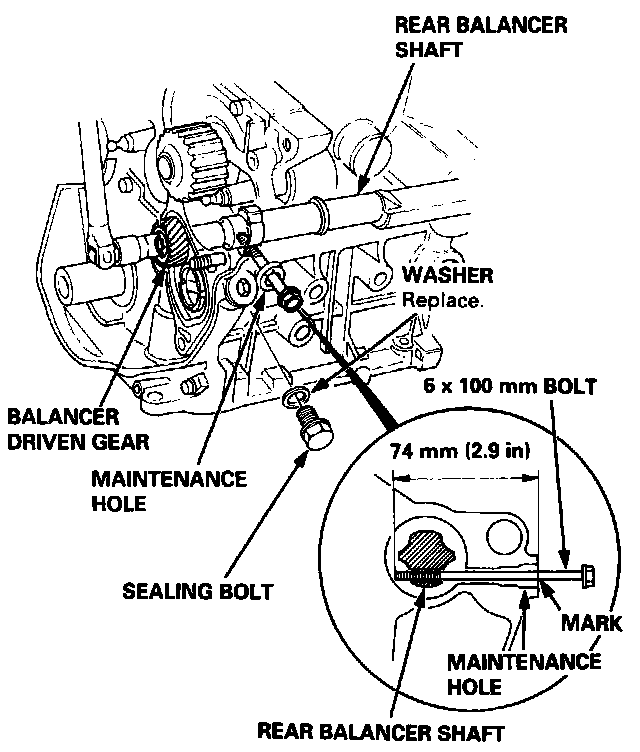

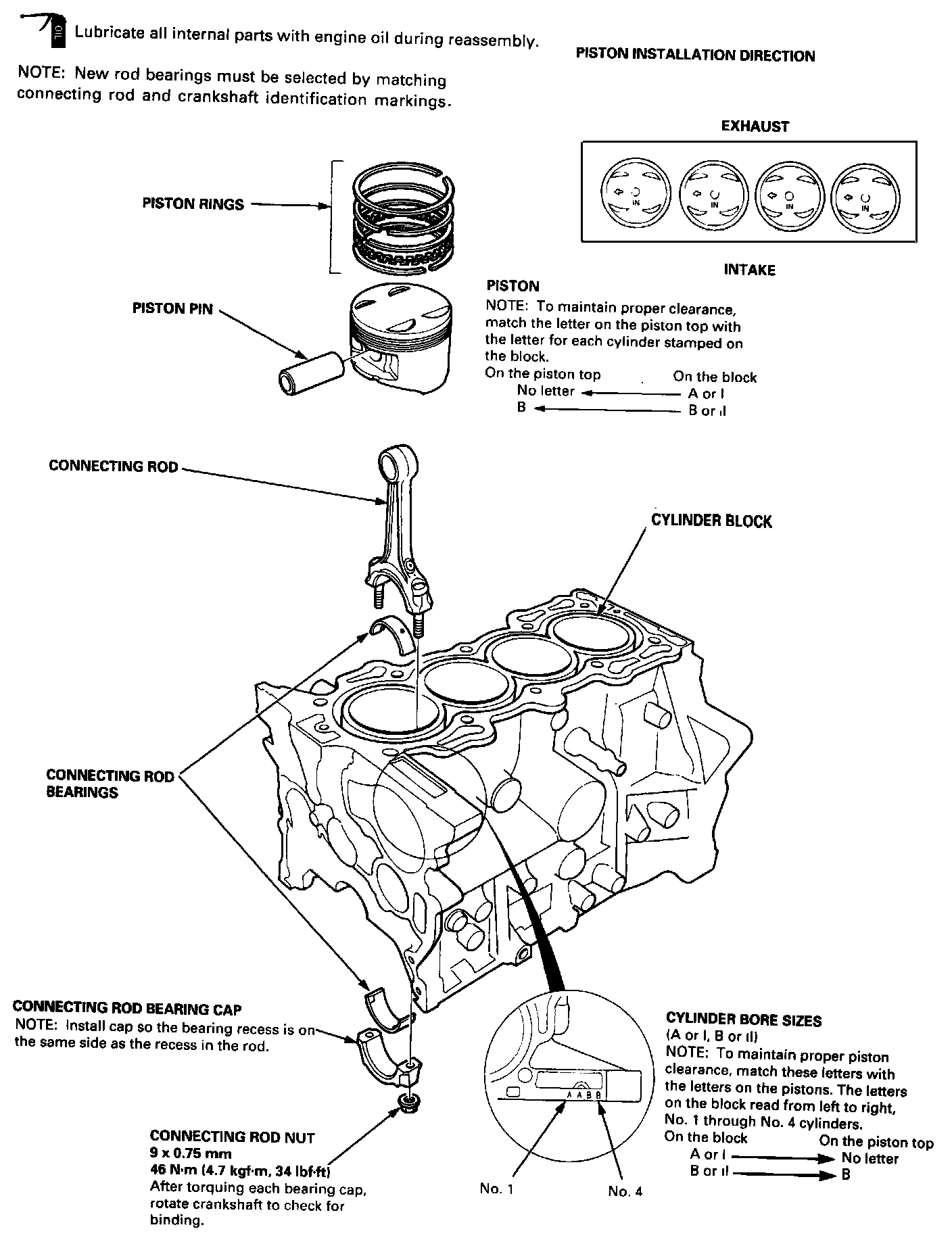

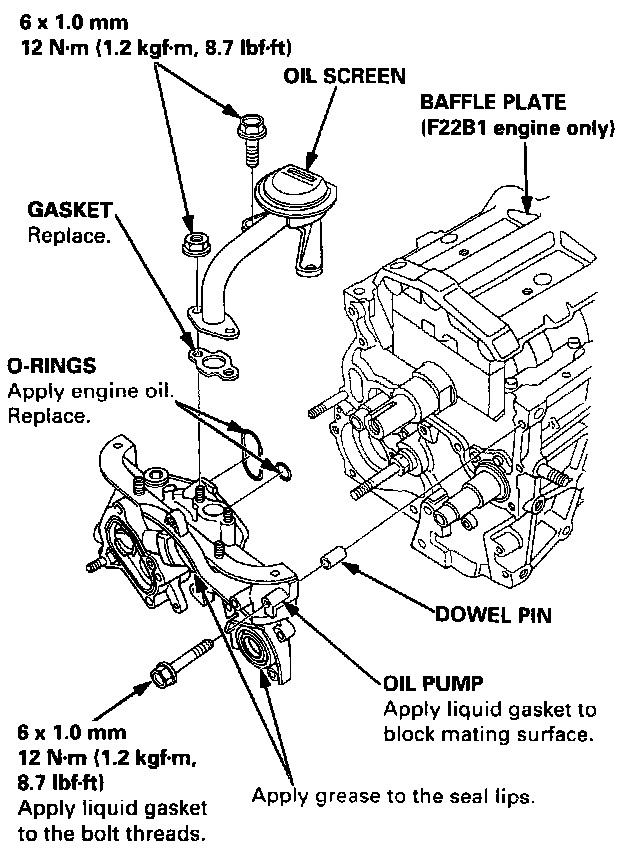

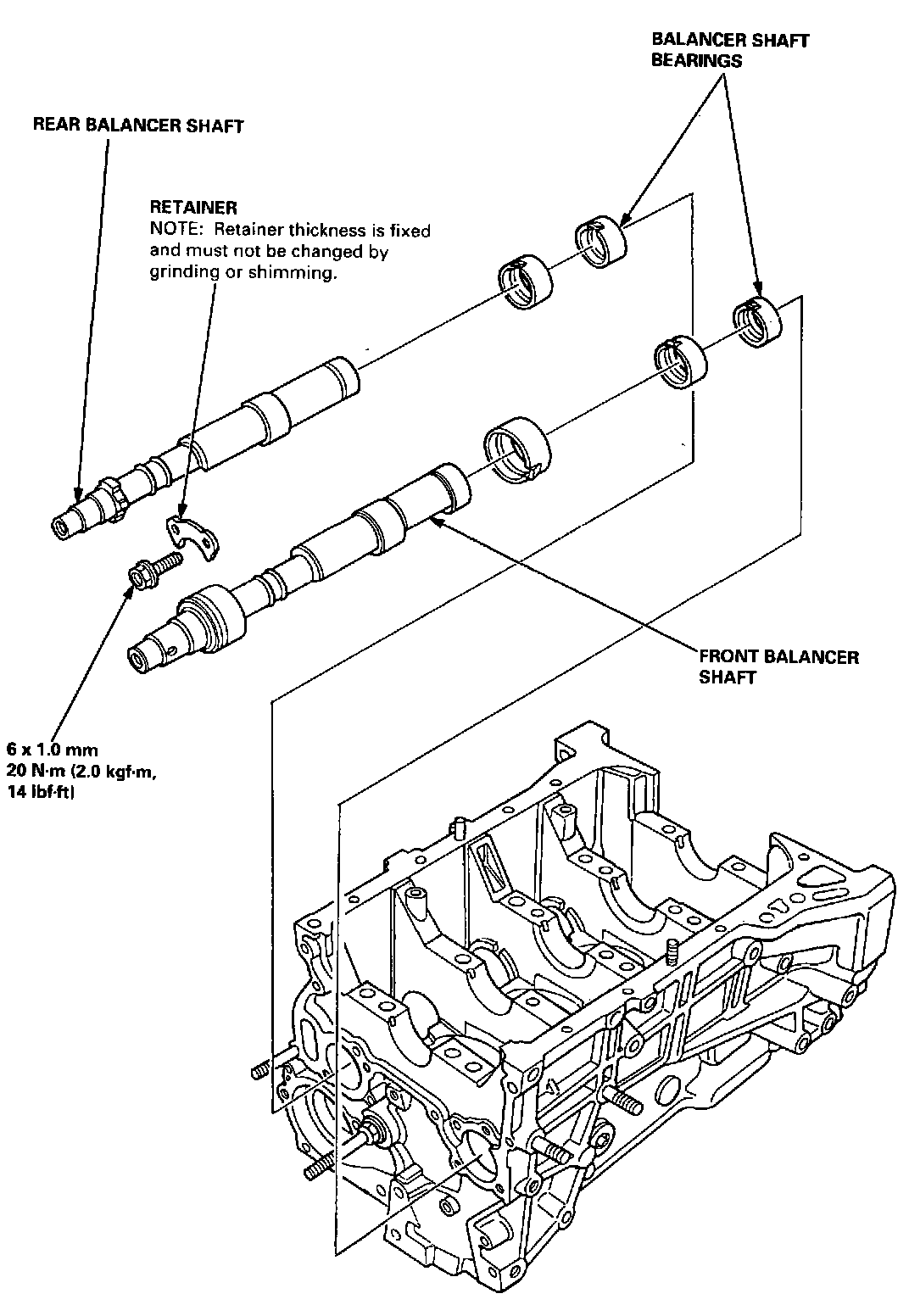

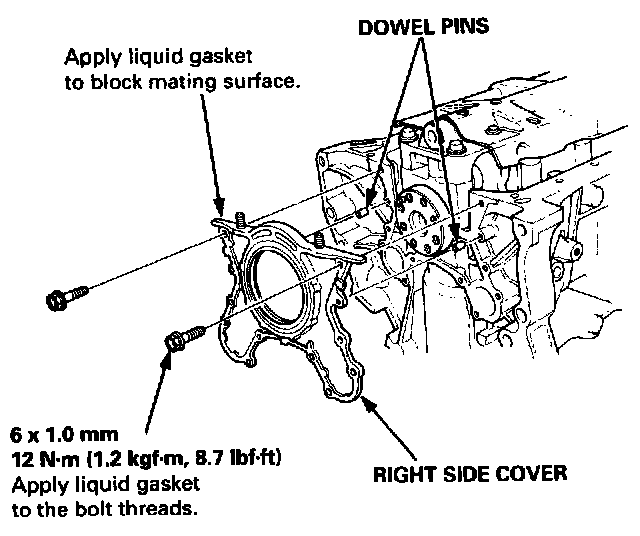

Lower Engine:

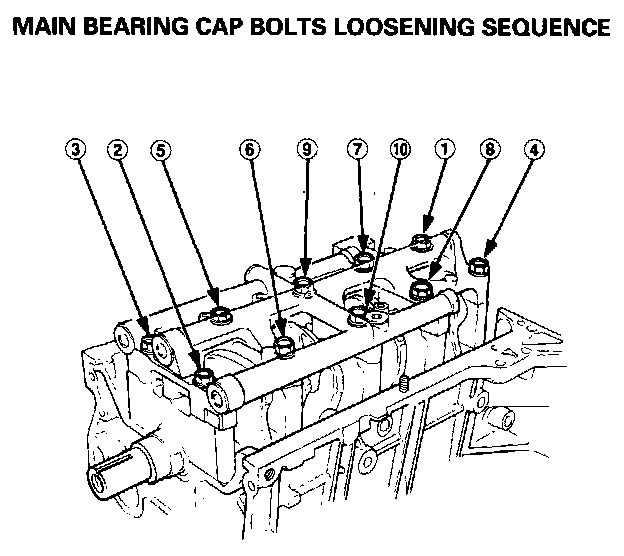

Main Bolt Loosening Sequence:

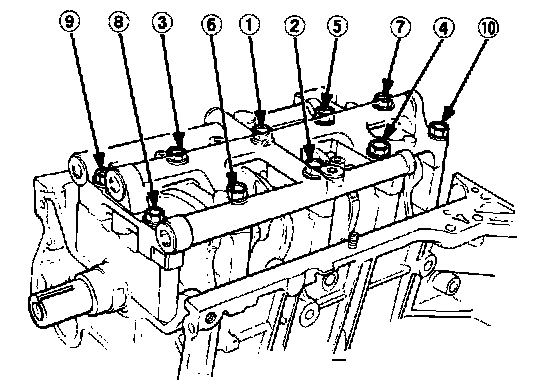

Main Bolt Torque Sequence:

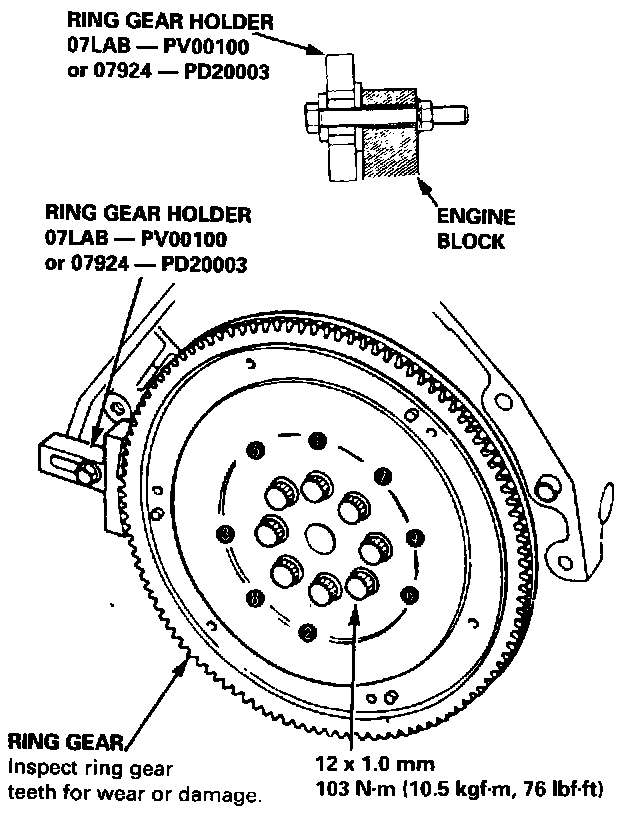

Flywheel (M/T) Torque/Sequence:

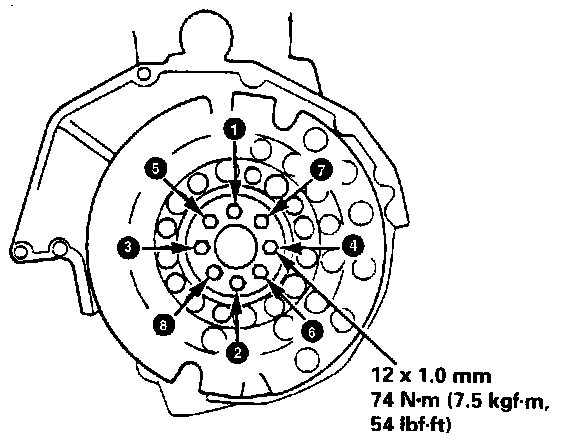

Drive Plate (A/T) Torque/Sequence:
