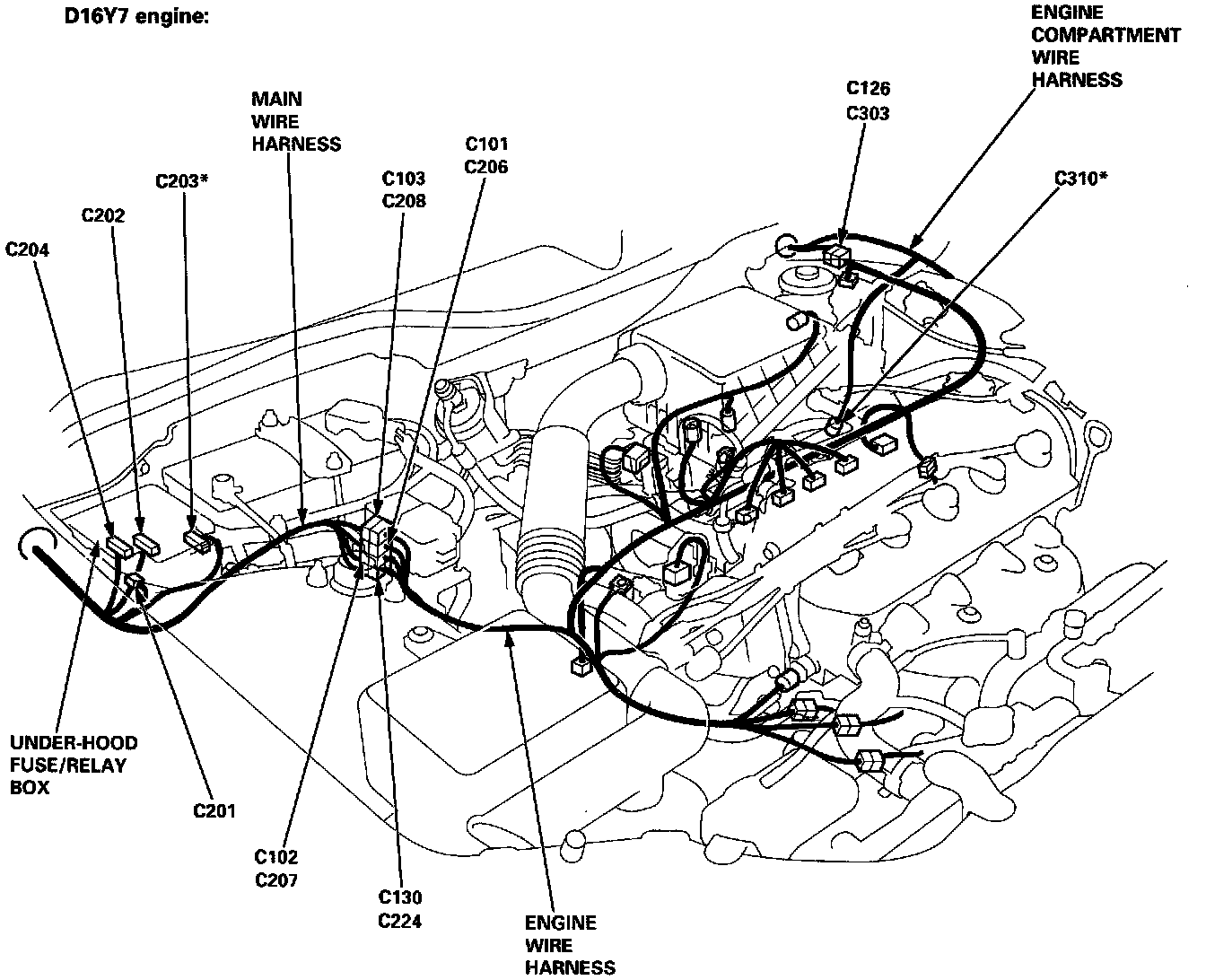

Engine Compartment Part 2

NOTE:
- Different wires with the same color have been given a number suffix to distinguish them (for example, YEL/BLK1 and YEL/BLK2 are not the same).
O: Related to Fuel and Emissions System.

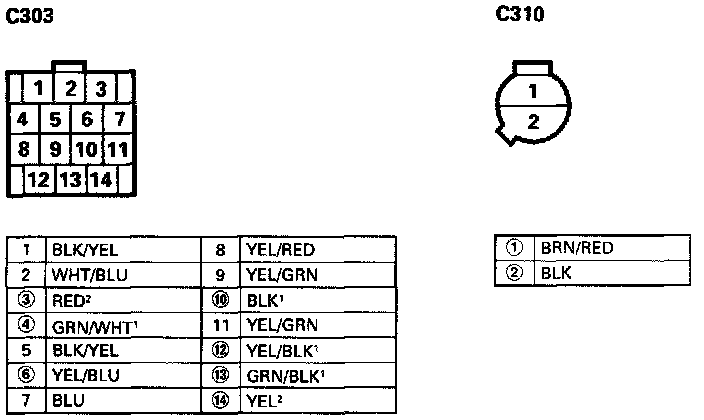

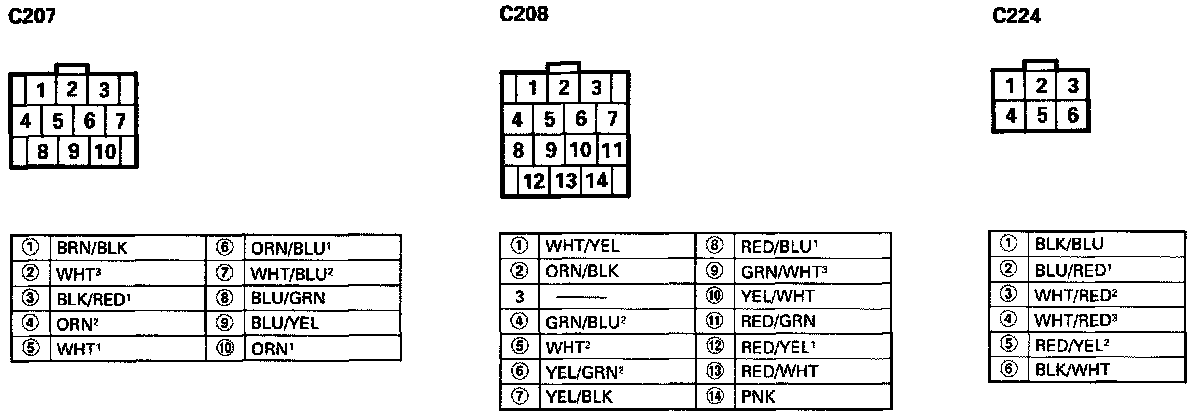

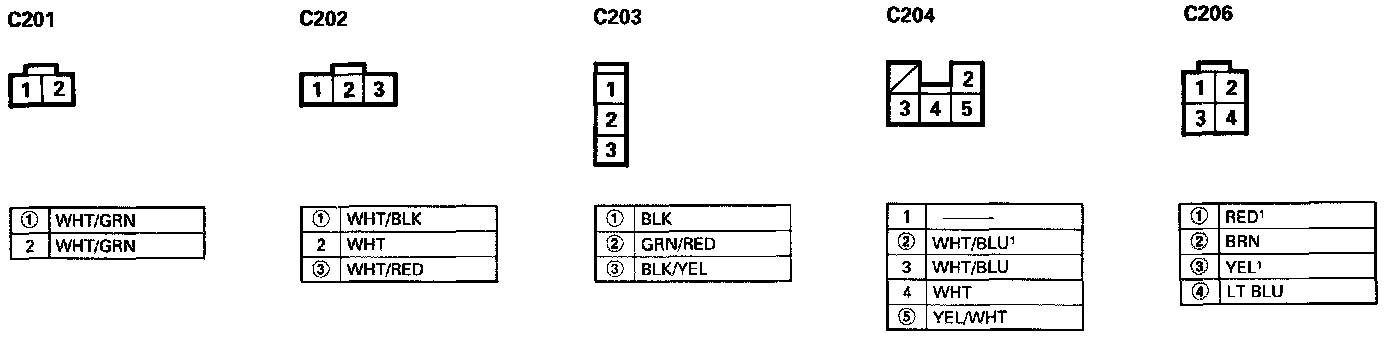

- Connector of male terminals: View from terminal side
- Connector of female terminals: View from wire side
