Engine Mount Control System

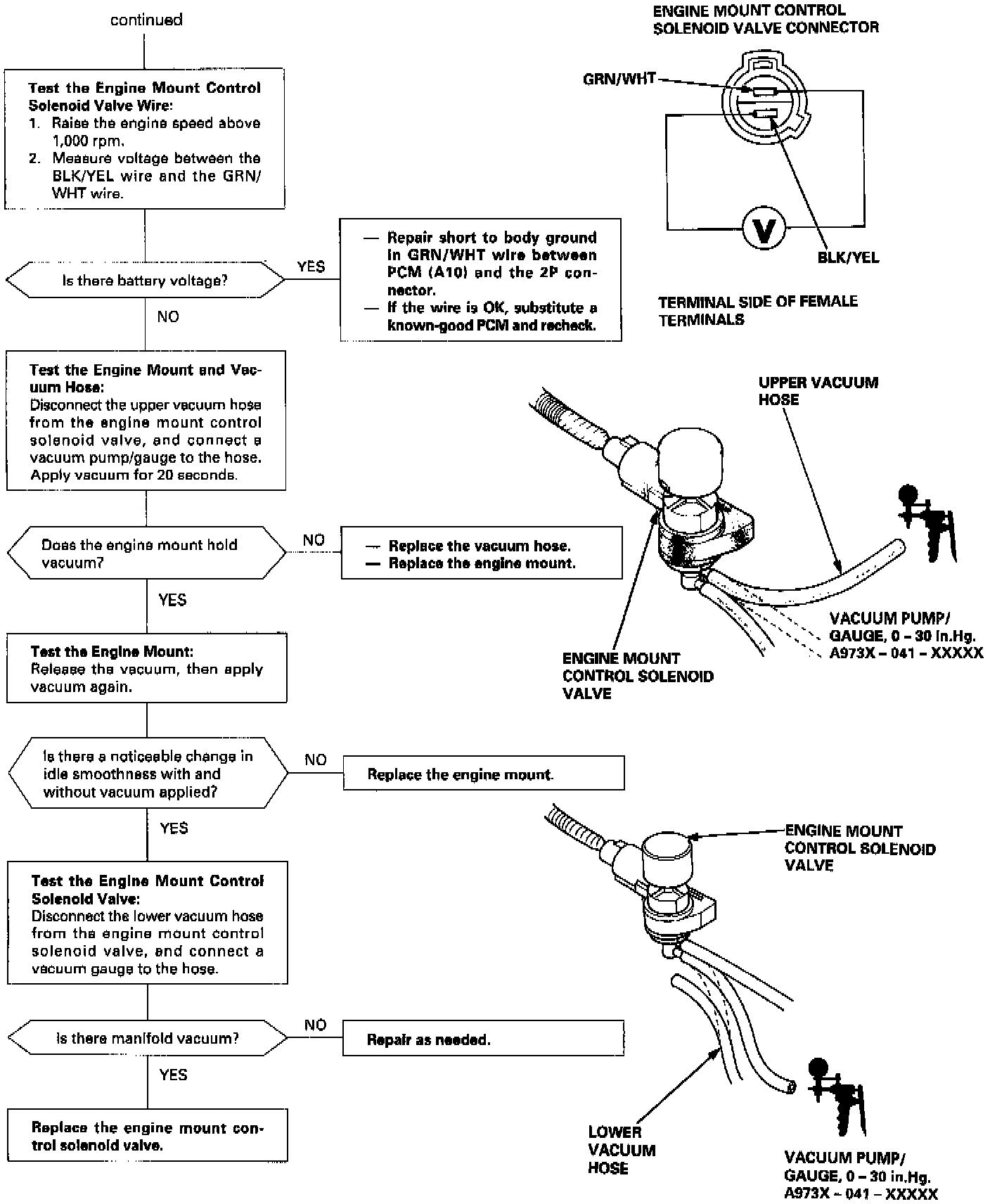

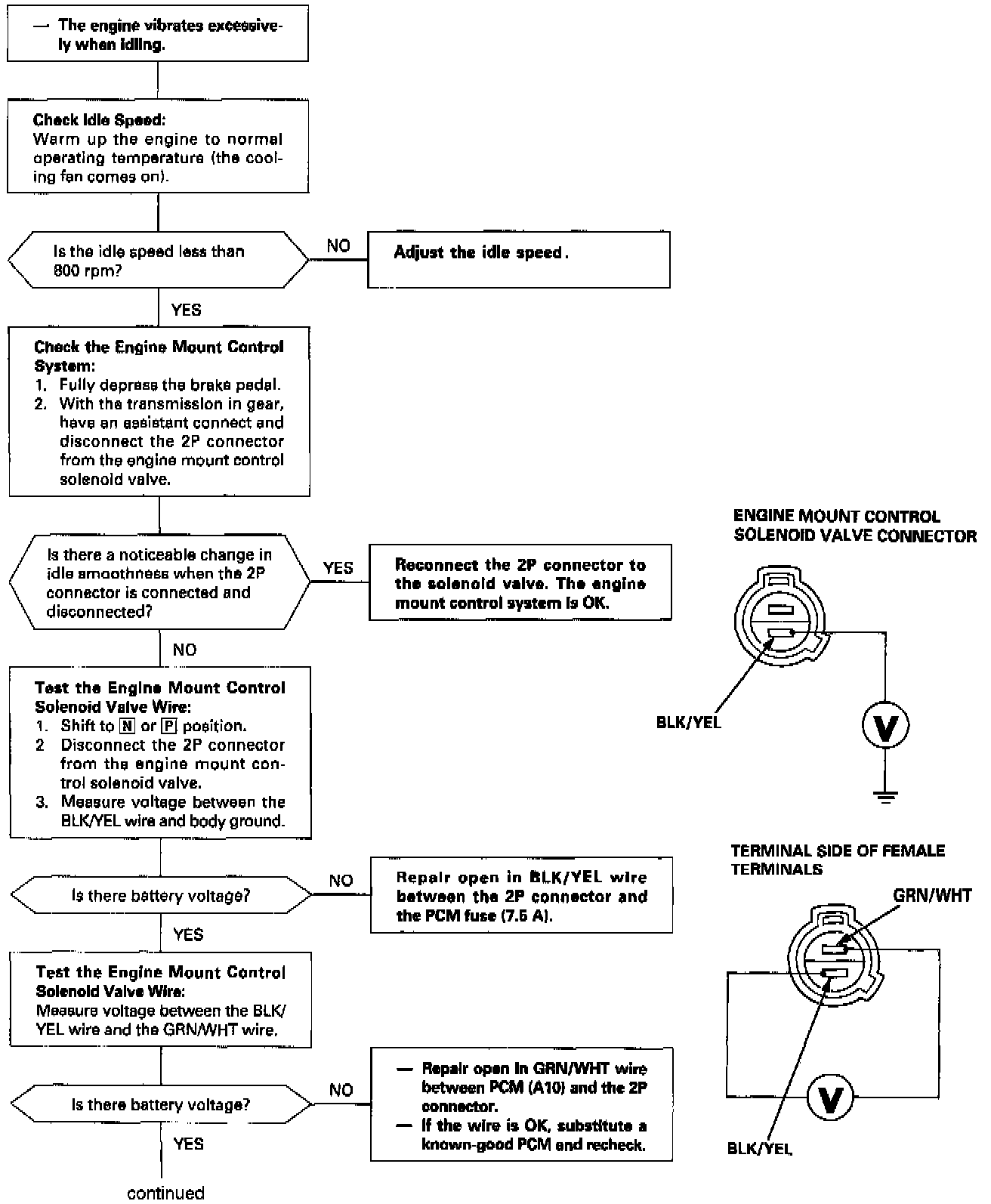

Engine Mount Control System
NOTE:
-
Check the vacuum hoses and pipes for damage and proper connections.
-
Refer to
Computers and Control Systems/System Diagnosis
before troubleshooting.
