Distributor: Testing and Inspection

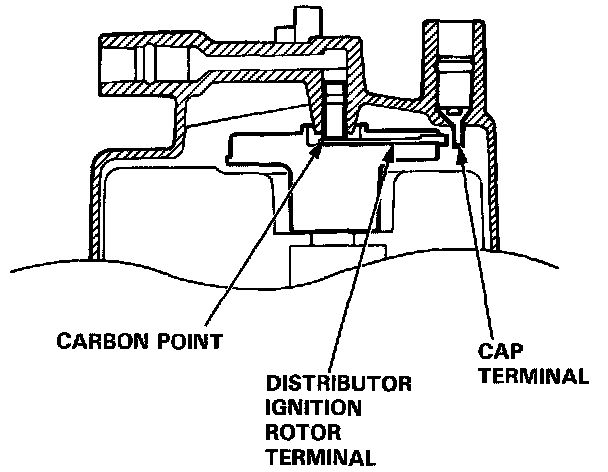

1. Check for rough or pitted Distributor Ignition Rotor and Distributor Ignition Cap Terminals.
2. Scrape or file off the carbon deposits. Smooth the Distributor Ignition Rotor Terminal with an oil stone or #600 sandpaper if rough.
3. Check the Distributor Ignition Cap for cracks, wear and damage. If necessary, clean or replace it.
