Scan Tool Testing and Procedures

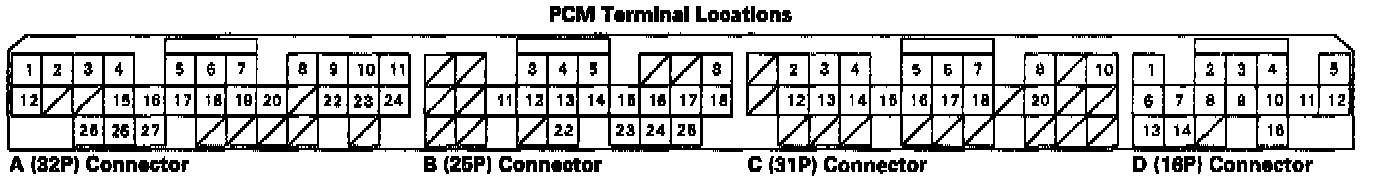

TERMINAL LOCATIONS

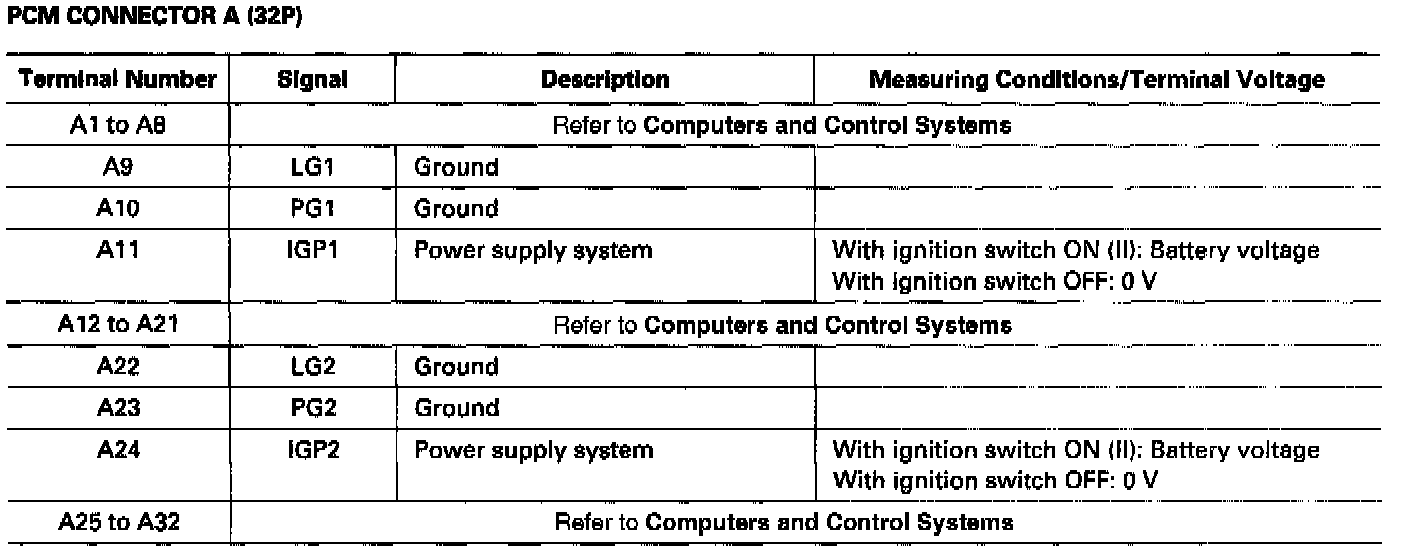

ECM/PCM CONNECTOR A (32P)

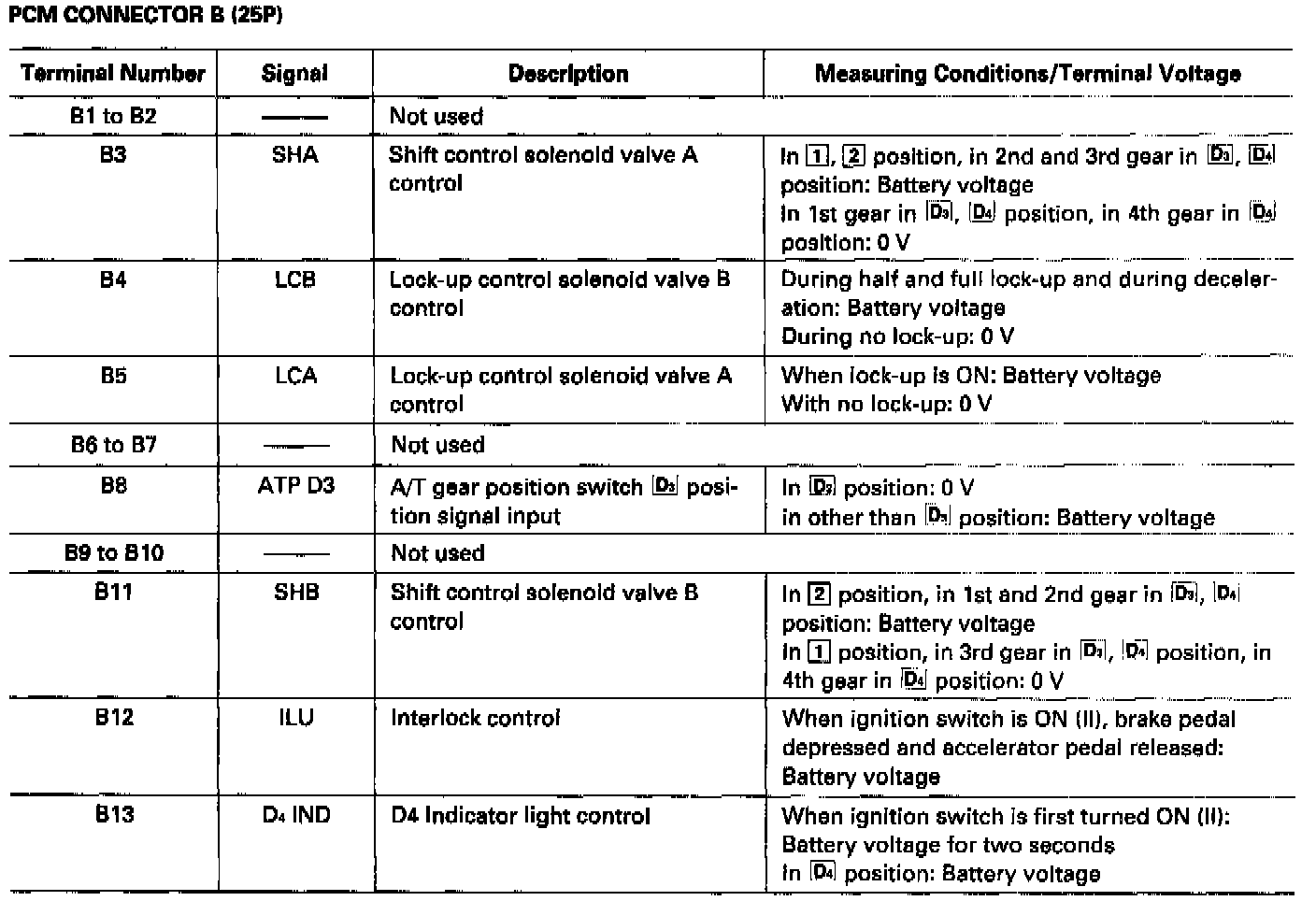

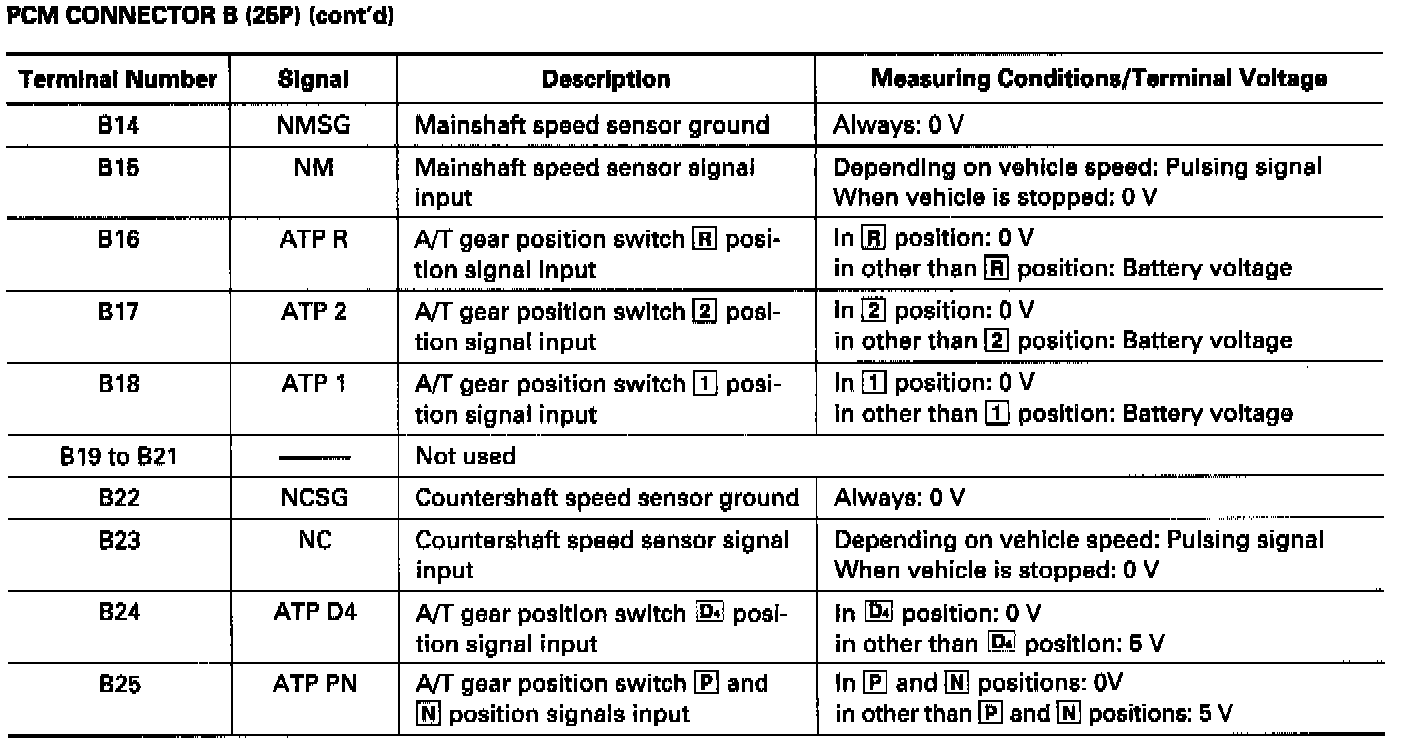

ECM/PCM CONNECTOR B (25P)

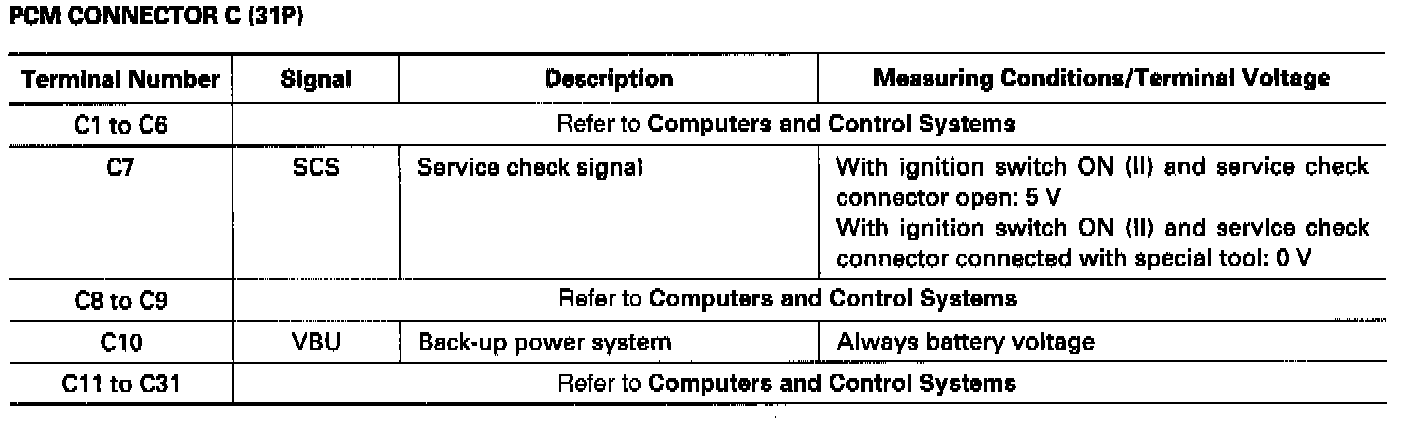

ECM/PCM CONNECTOR C (31P)

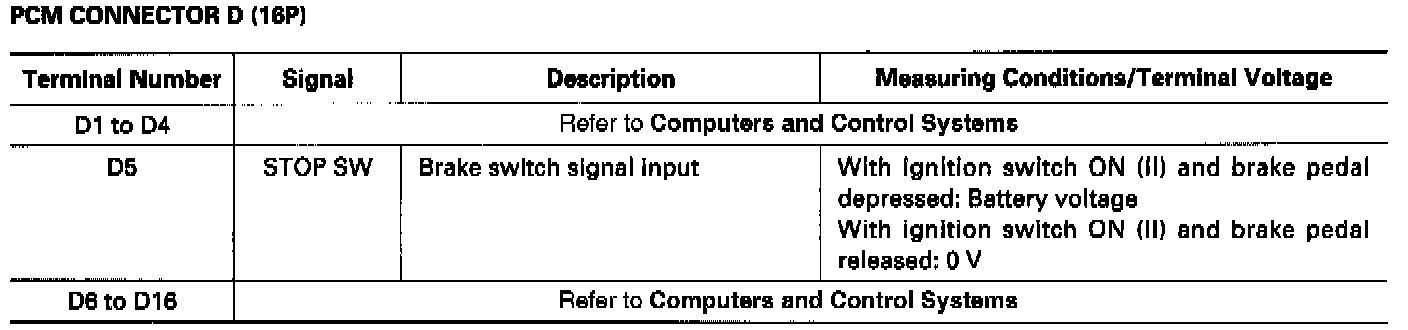

ECM/PCM CONNECTOR D (16P)

The PCM terminal voltage and measuring conditions are shown for the connector terminals that are related to the A/T control system. The other PCM terminal voltage and measuring conditions are described in Normal Scan Data Values under Computers and Control Systems. Testing and Inspection
