wiring Diagram

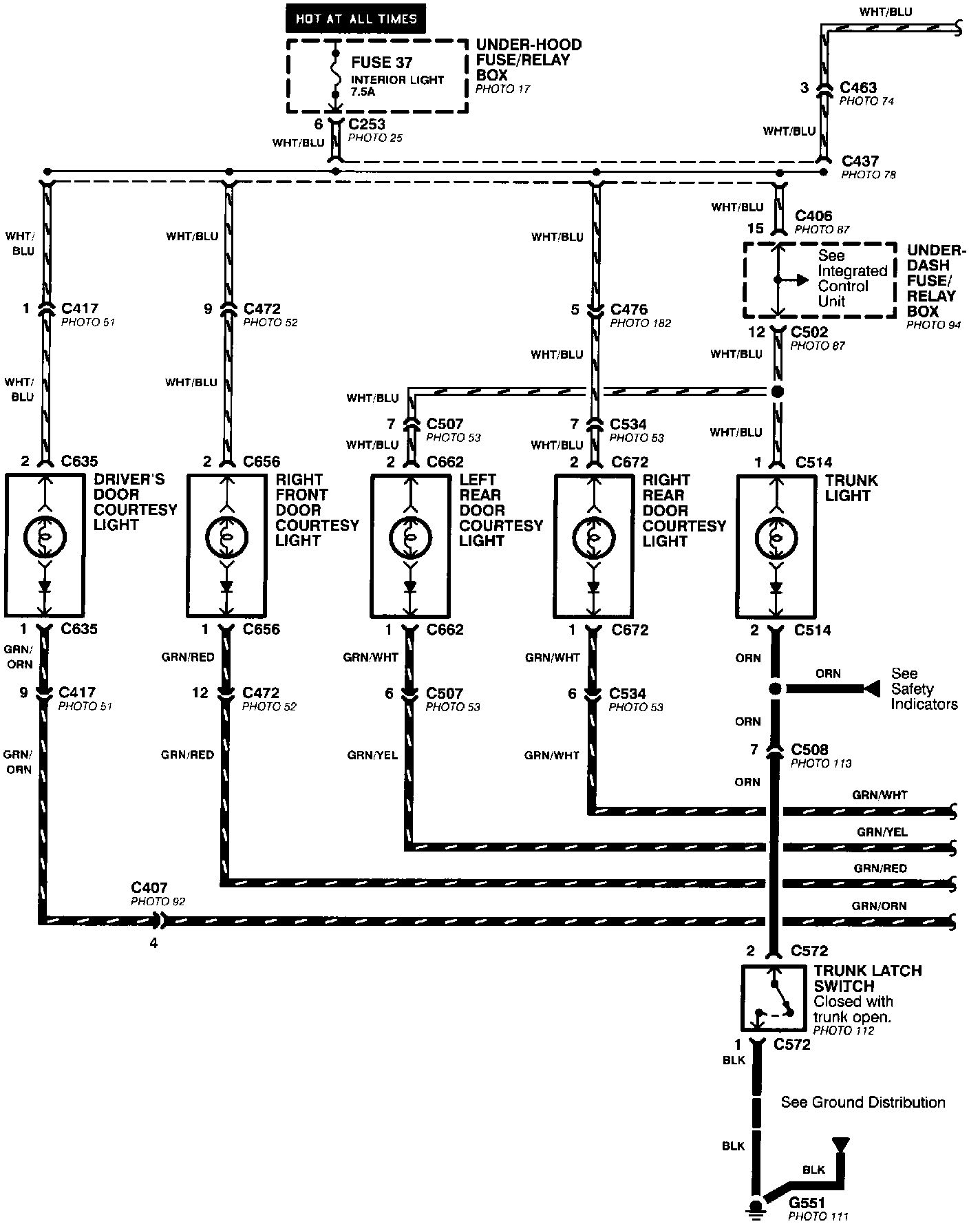

Ceiling, Door Courtesy, Spot And Trunk Lights (Part 1 Of 2):
Ceiling, Door Courtesy, Spot And Trunk Lights (Part 2 Of 2):
Ceiling, Door Courtesy, Spot And Trunk Lights (Part 1 Of 2):
Ceiling, Door Courtesy, Spot And Trunk Lights (Part 2 Of 2):
