Warning, Indicator, Illumination, A/T Indicator Light Bulb

Bulb Replacement:

CAUTION:

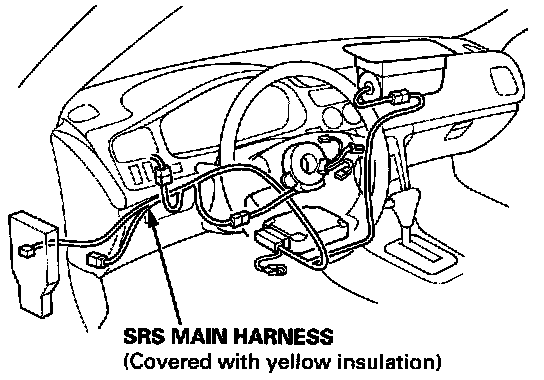

^ All SRS wire harnesses are covered with yellow insulation. Before you disconnect any part of an SRS wire harness, disconnect the airbag connectors.
^ Whenever the ignition switch ON (II), or has been turned OFF for less than three minutes, be careful not to bump the SRS unit; the airbags could accidentally deploy and cause damage or injuries.
^ For additional precautions, refer to Air Bags and Seat Belts.

1. Remove the gauge assembly.
2. Disassemble the gauge assembly.

Bulb Replacement:

3. Replace the bulbs at the printed circuit board A.
4. Install in the reverse order of removal.
