Torque Specifications

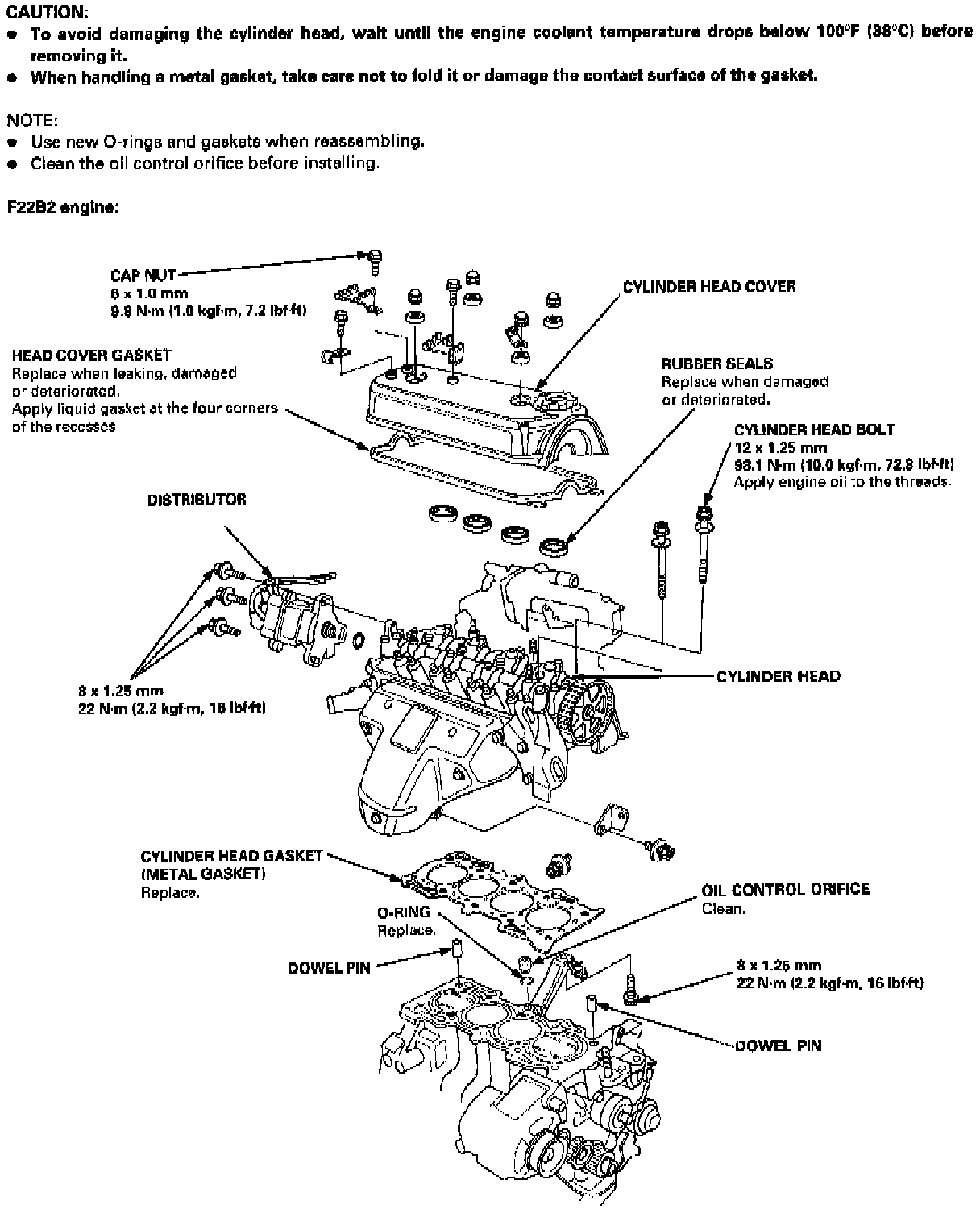

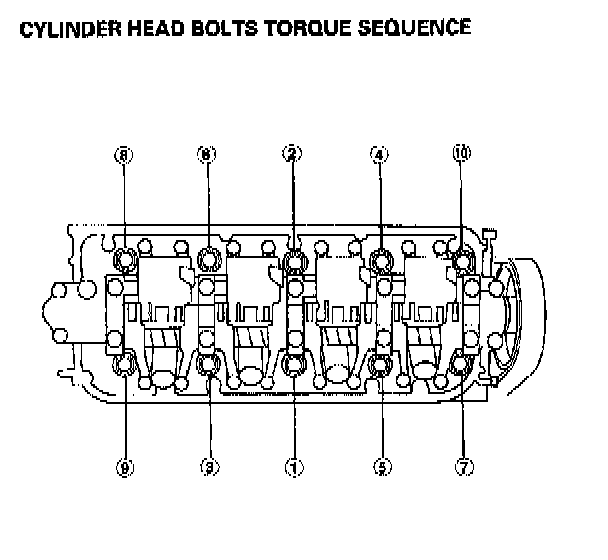

Head Bolt Torque Sequence:

Tighten the cylinder head bolts sequentially in three steps:

1st step torque: 39 N.m (4.0 kgf.m, 29 lbf.ft)
2nd step torque: 69 N.m (7.0 kgf.m, 51 lbf.ft)
3rd step torque: 98.1 N.m (10.0 kgf.m, 72.3 lbf.ft)

Intake:

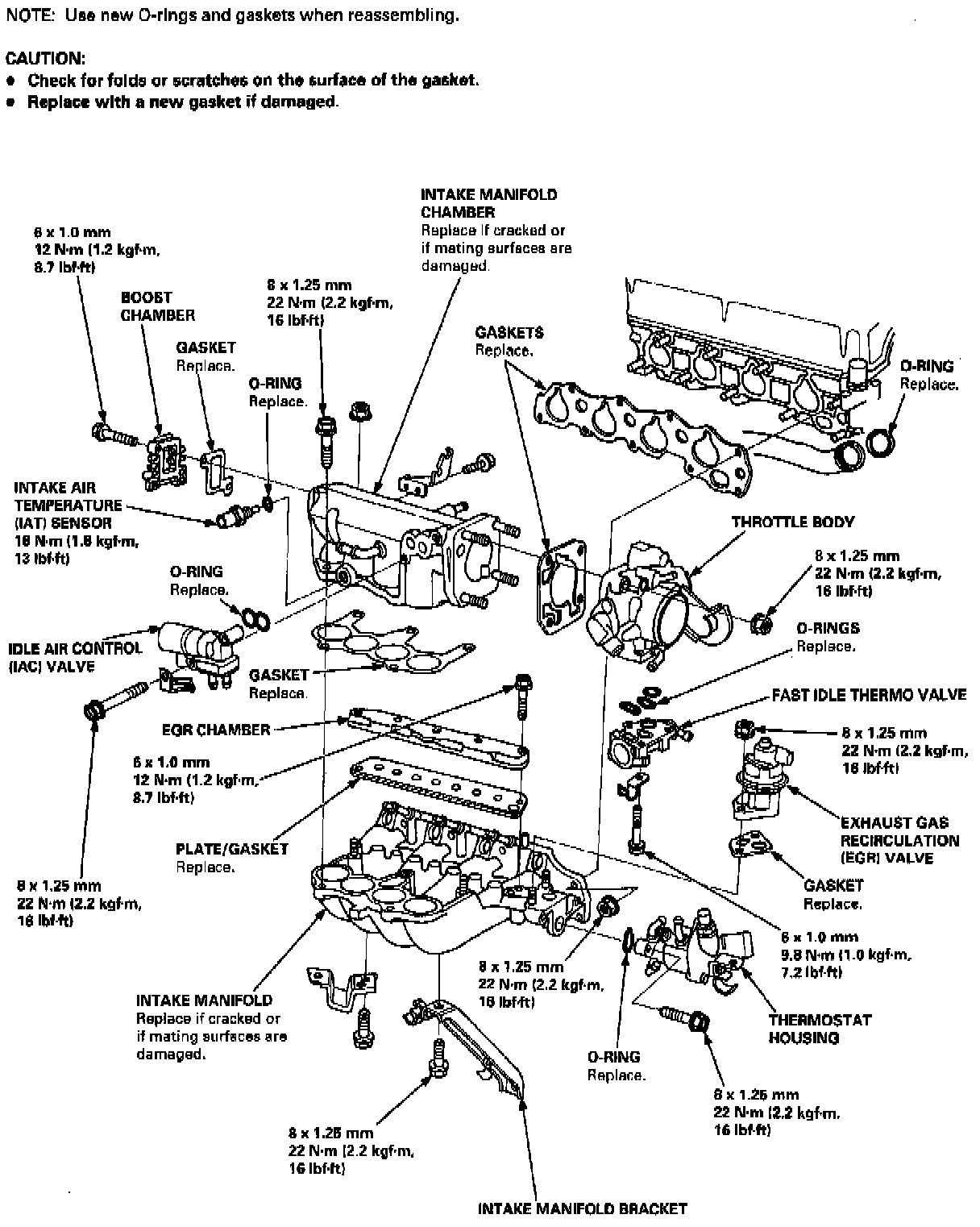

Intake Manifold Installation

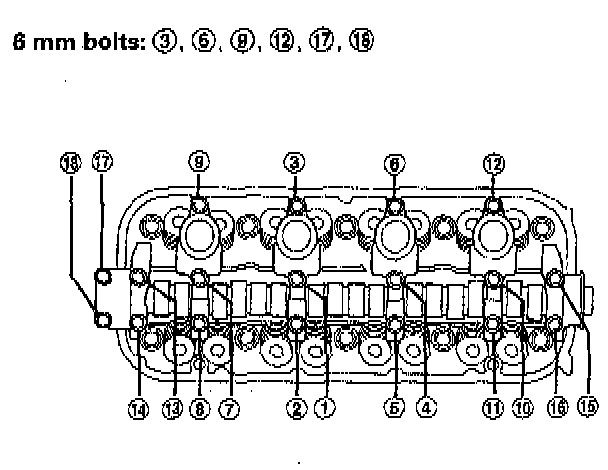

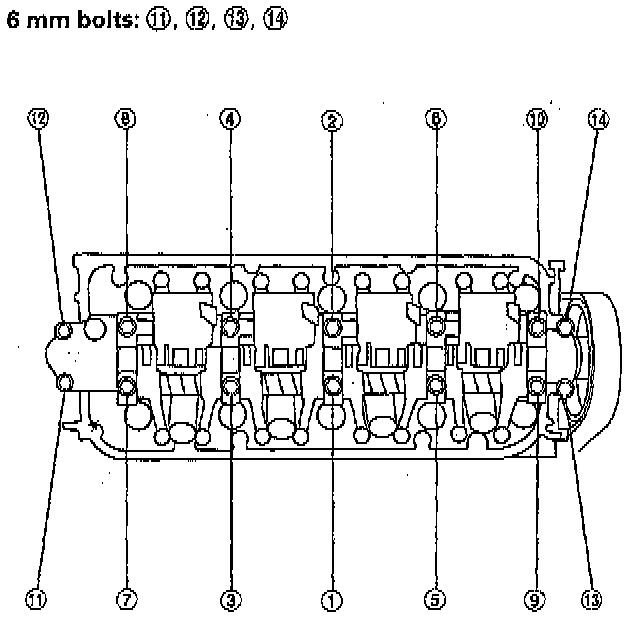

F22B2 Engine Camshaft Cap Sequence

F22B1 VTEC Engine Camshaft Cap Sequence

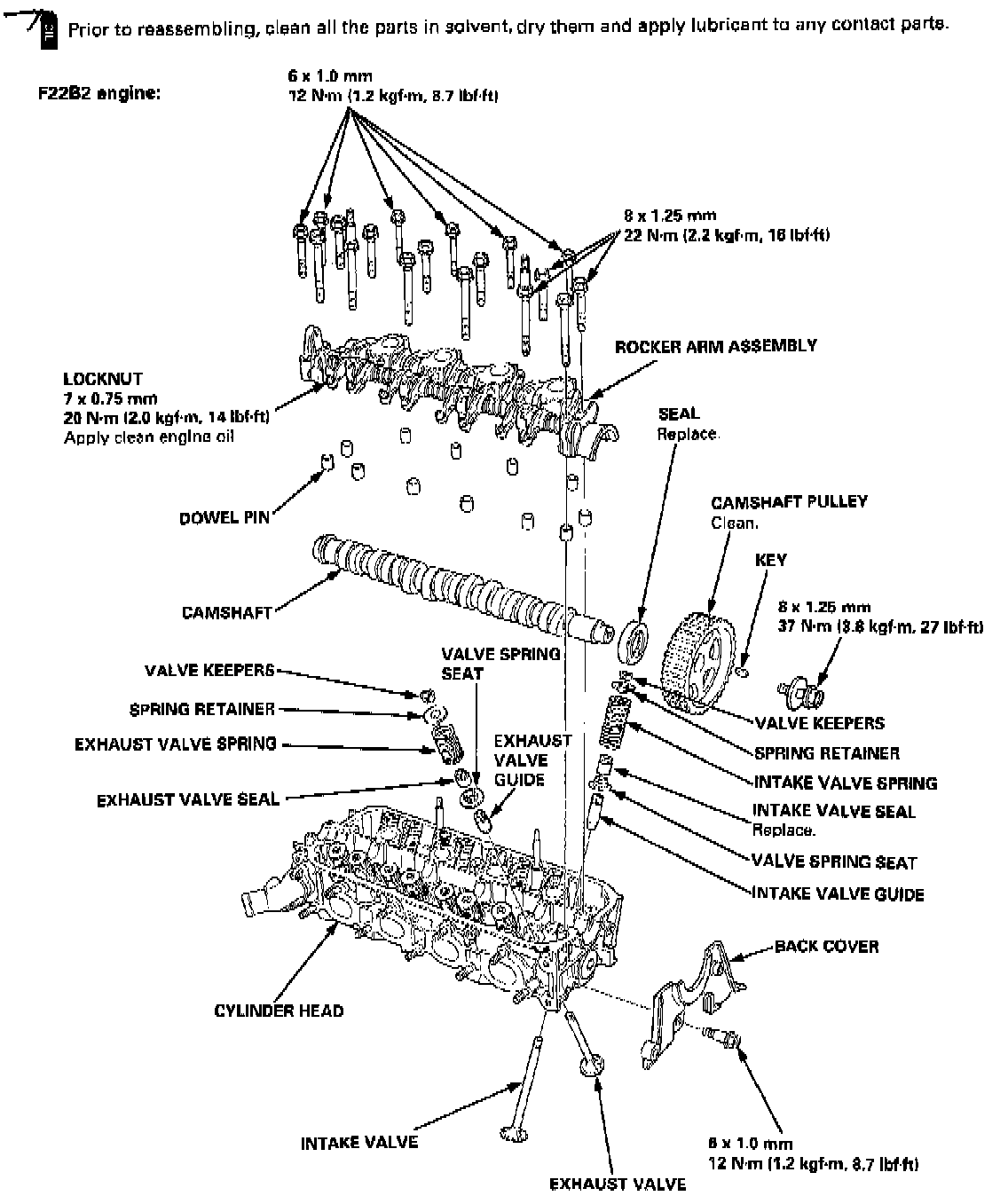

Camshaft Cap Torque
8mm bolts - 22 Nm. (16 lb. ft.)
6mm bolts - 12 Nm. (8.7 lb. ft.)

Fig.3 Main Bearing Cap Bolt Loosening Sequence:

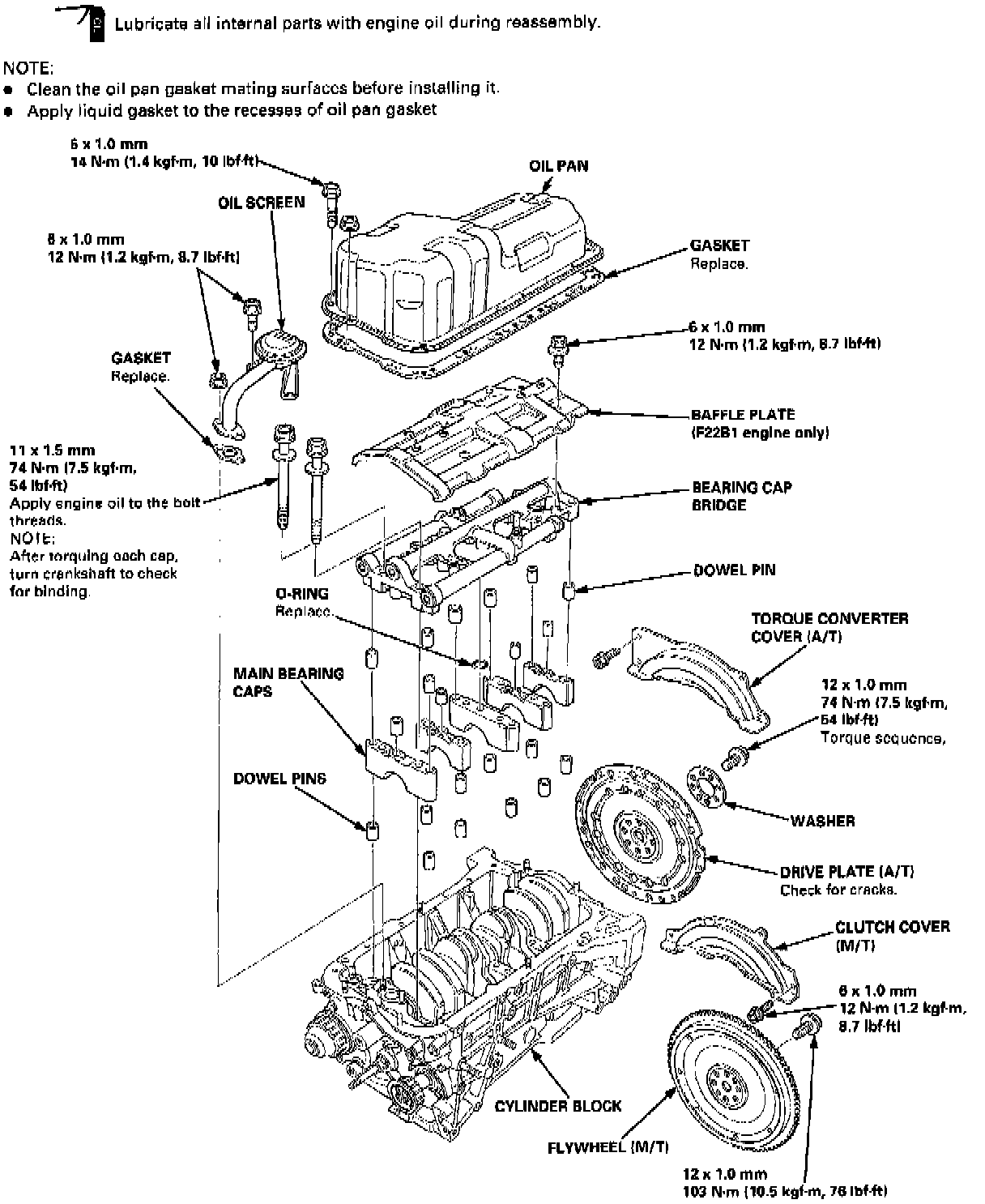

Main Bolt Torque Sequence:

Main Bearing Cap Bolts In Sequence To 74 Nm (54 ft. lbs.)

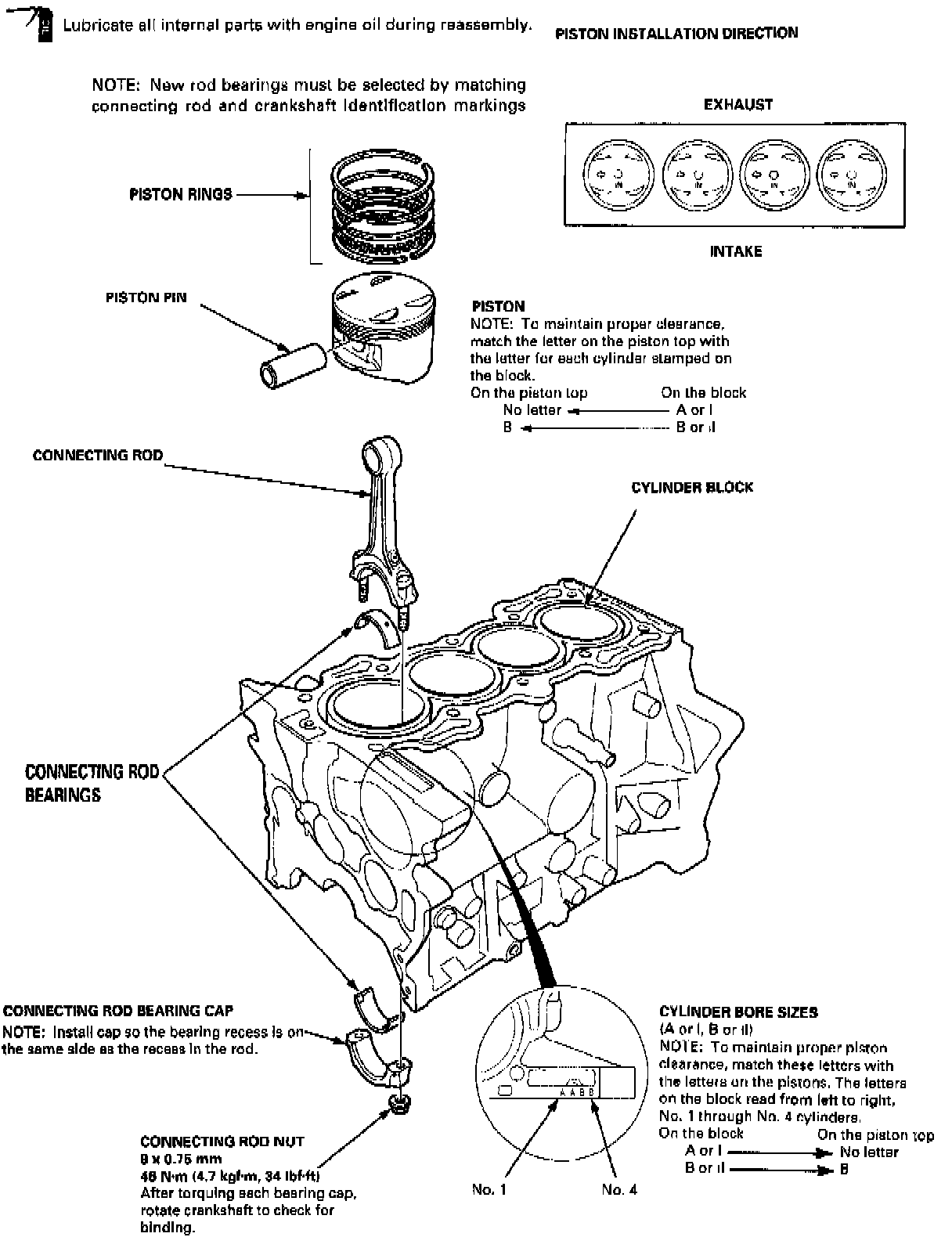

Connecting Rod Cap Nuts: 46 Nm (34 lb. ft.)

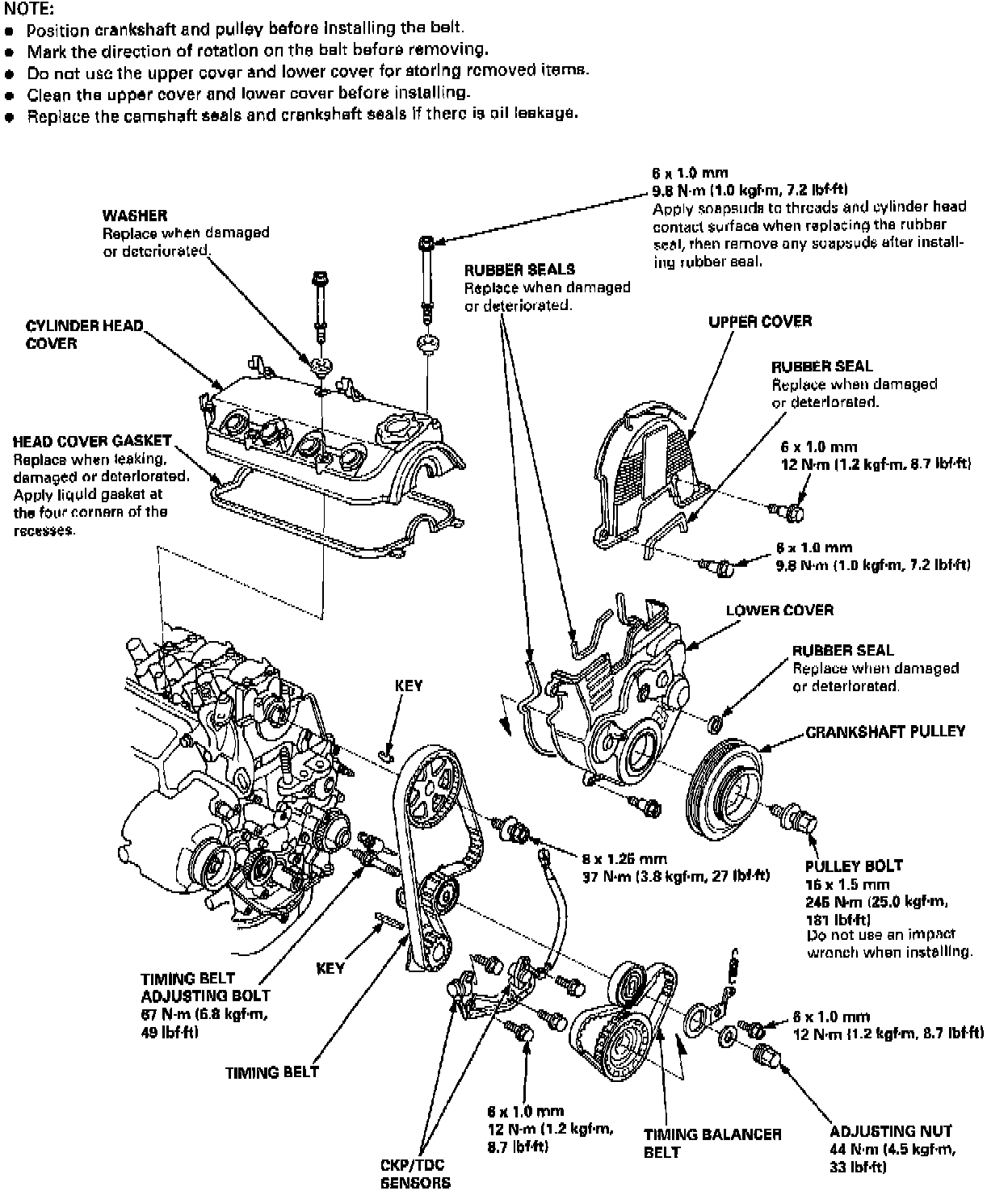

Crankshaft Pulley: 245 Nm (181 ft. lbs.)
