Control Assembly: Service and Repair

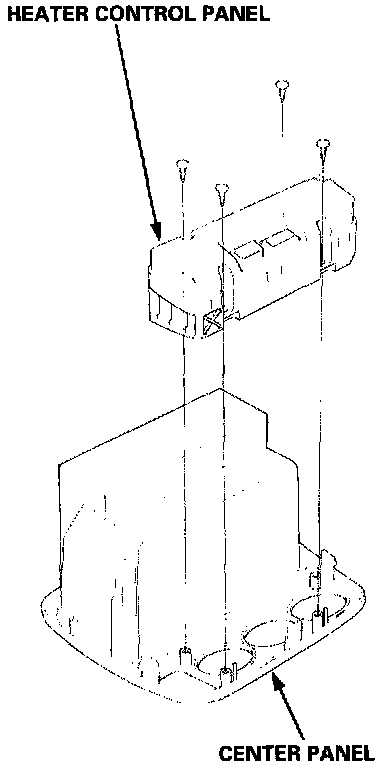

1. Remove the center panel together with the heater control panel and the audio unit.

2. Remove the self-tapping screws and the heater control panel from the center panel.
3. Install in the reverse order of removal.
