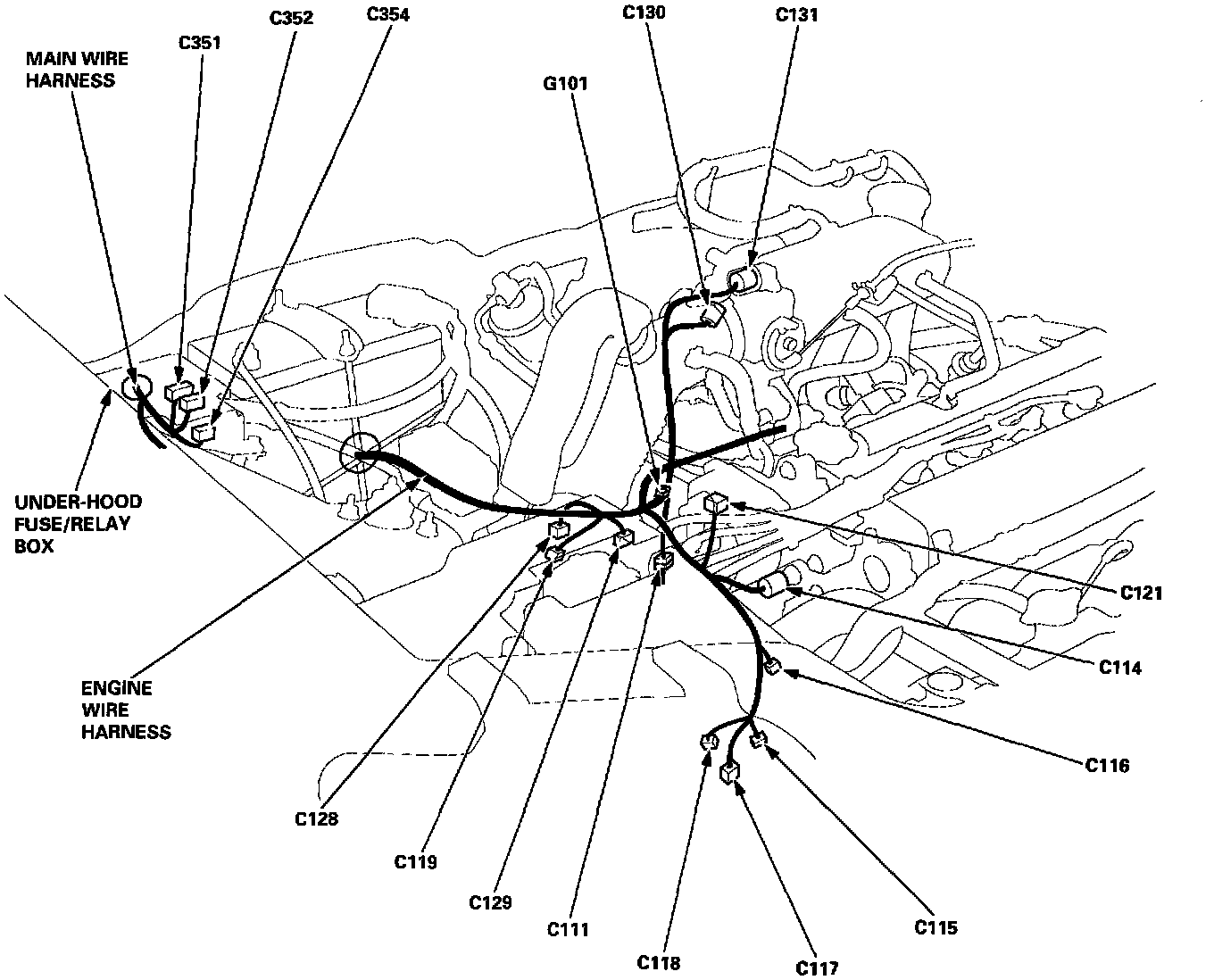

Engine Compartment Part 1

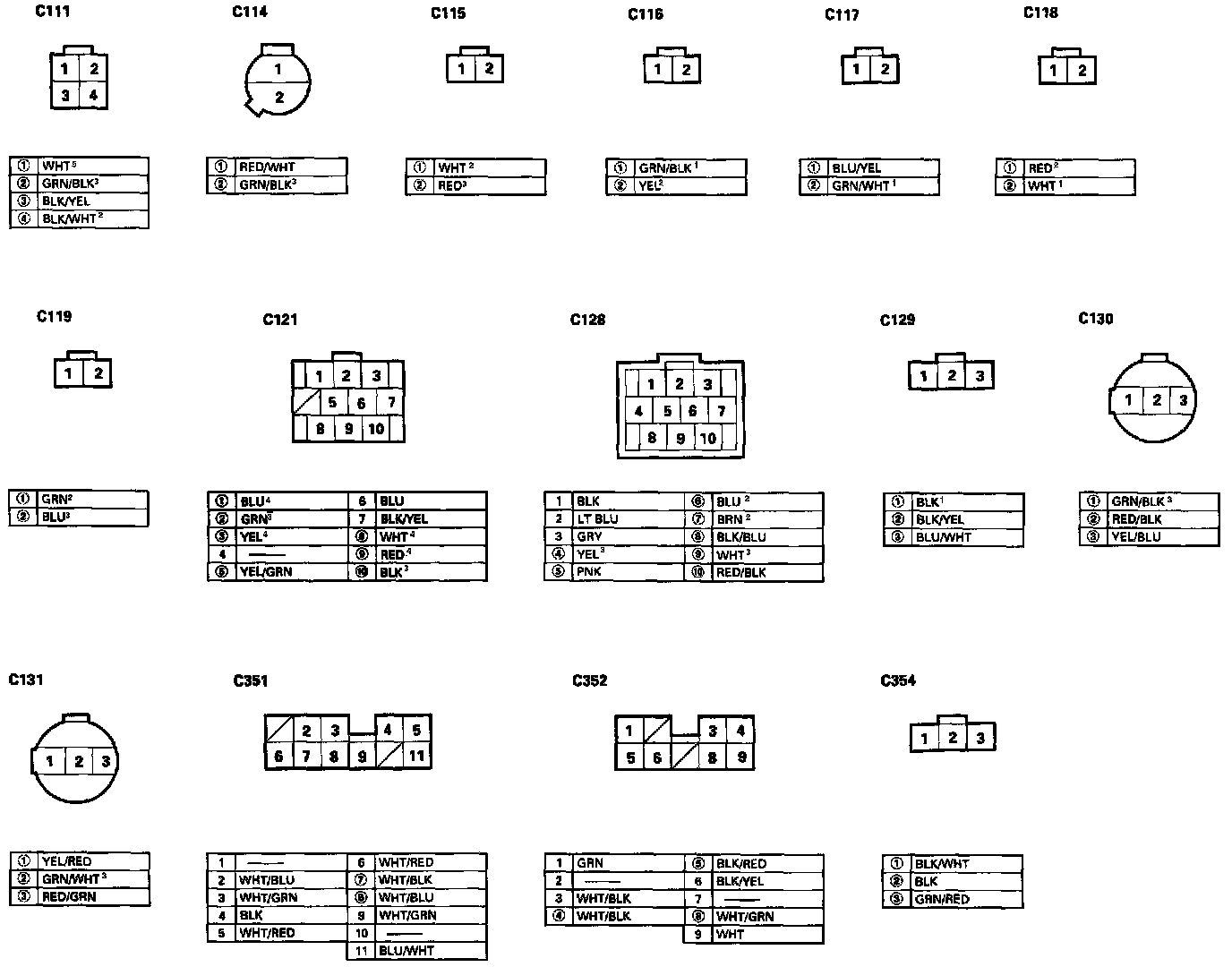

NOTE: - Different wires with the same color have been given a number suffix to distinguish them (for example,YEL/BLK1 and YEL/BLK2 are not the same).
O: Related to Fuel and Emissions System.
- - Connector with male terminals (double outline): View from terminal side
- Connector with female terminals (single outline): View from wire side
