CR-V L4-1972cc 2.0L DOHC MFI
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Relays and Modules - Powertrain Management
>>
Relays and Modules - Computers and Control Systems
>>
Main Relay (Computer/Fuel System)
>>
Locations
>>
Photo View
Photo View

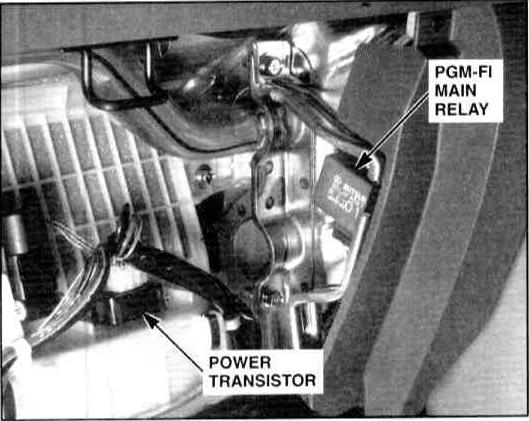

Photo 75:
Upper Right Kick Panel
