Control Module: Testing and Inspection

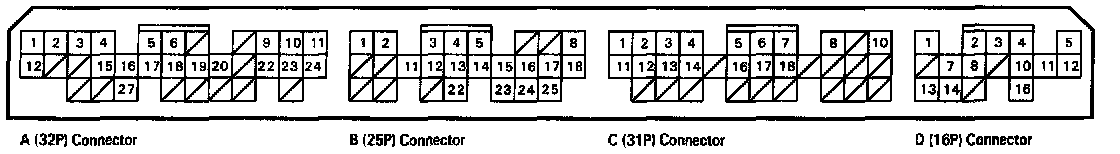

TERMINAL LOCATIONS




PCM CONNECTOR A (32P)








PCM CONNECTOR B (25P)




PCM CONNECTOR C (31P)




PCM CONNECTOR D (16P)

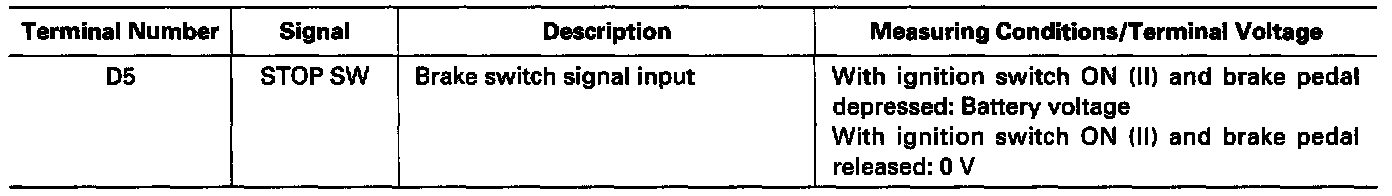

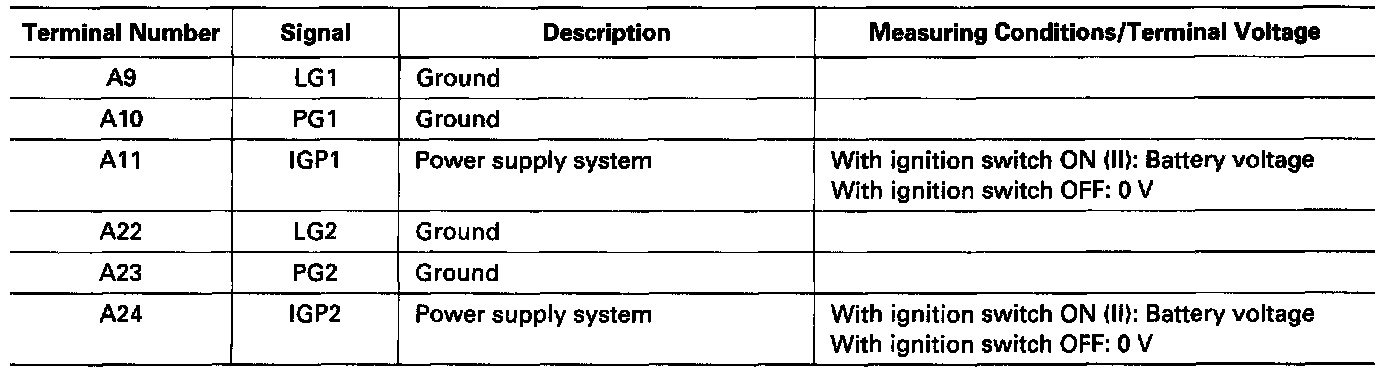

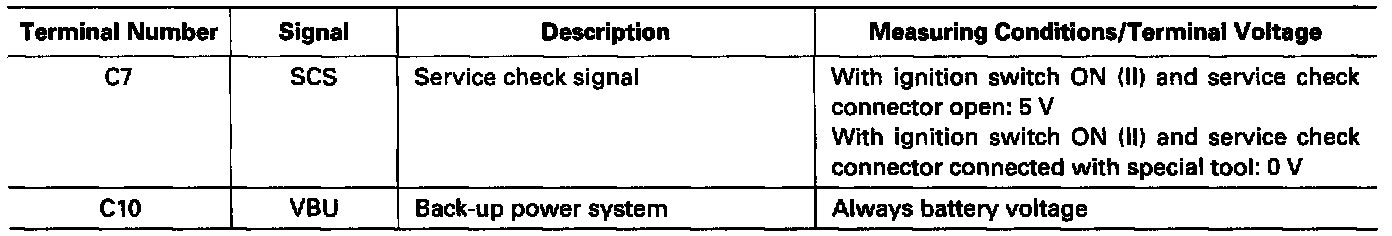

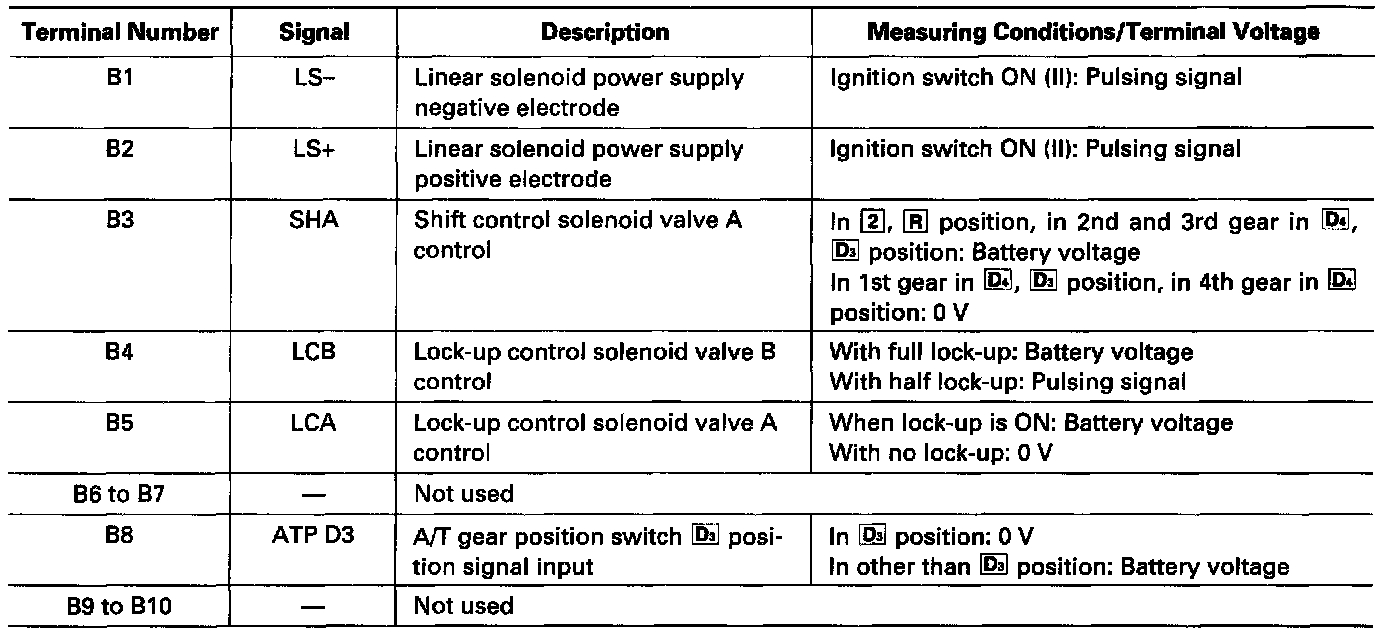

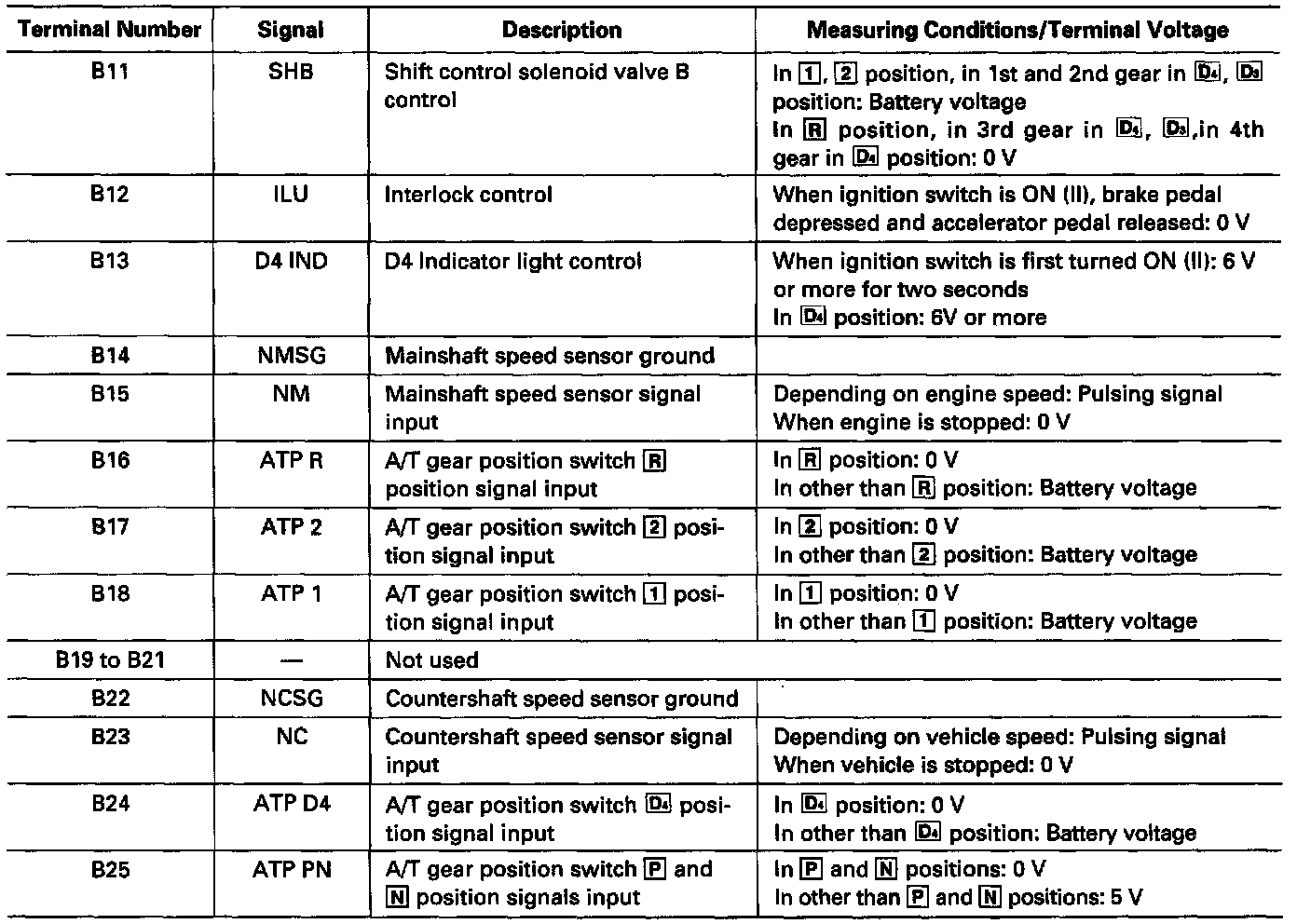

The PCM terminal voltage and measuring conditions are shown for the connector terminals that are related to the A/T control system. The other PCM terminal voltage and measuring conditions are described under Computers and Control Systems.
