Electronic Brake Control Module: Service and Repair

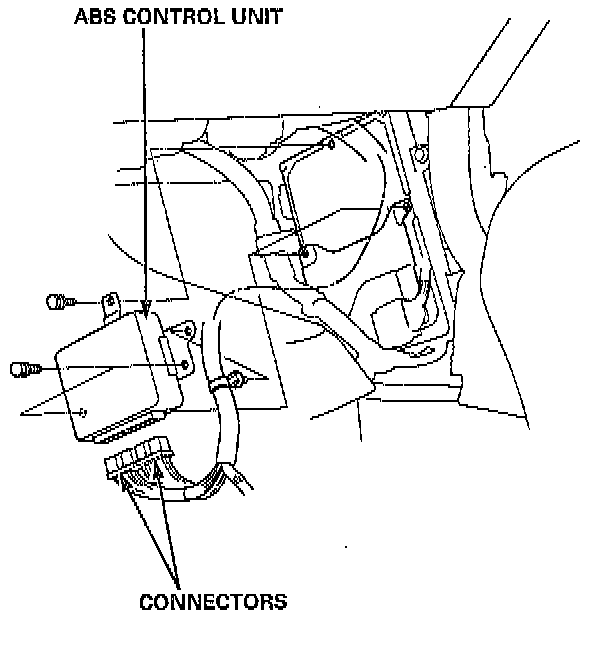

ABS Control Unit:

REPLACEMENT
- Remove the right side kick panel.
- Disconnect the ABS control unit connectors.
- Remove the ABS control unit.
- Install the ABS control unit in reverse order of removal.
