Component Torque Specifications

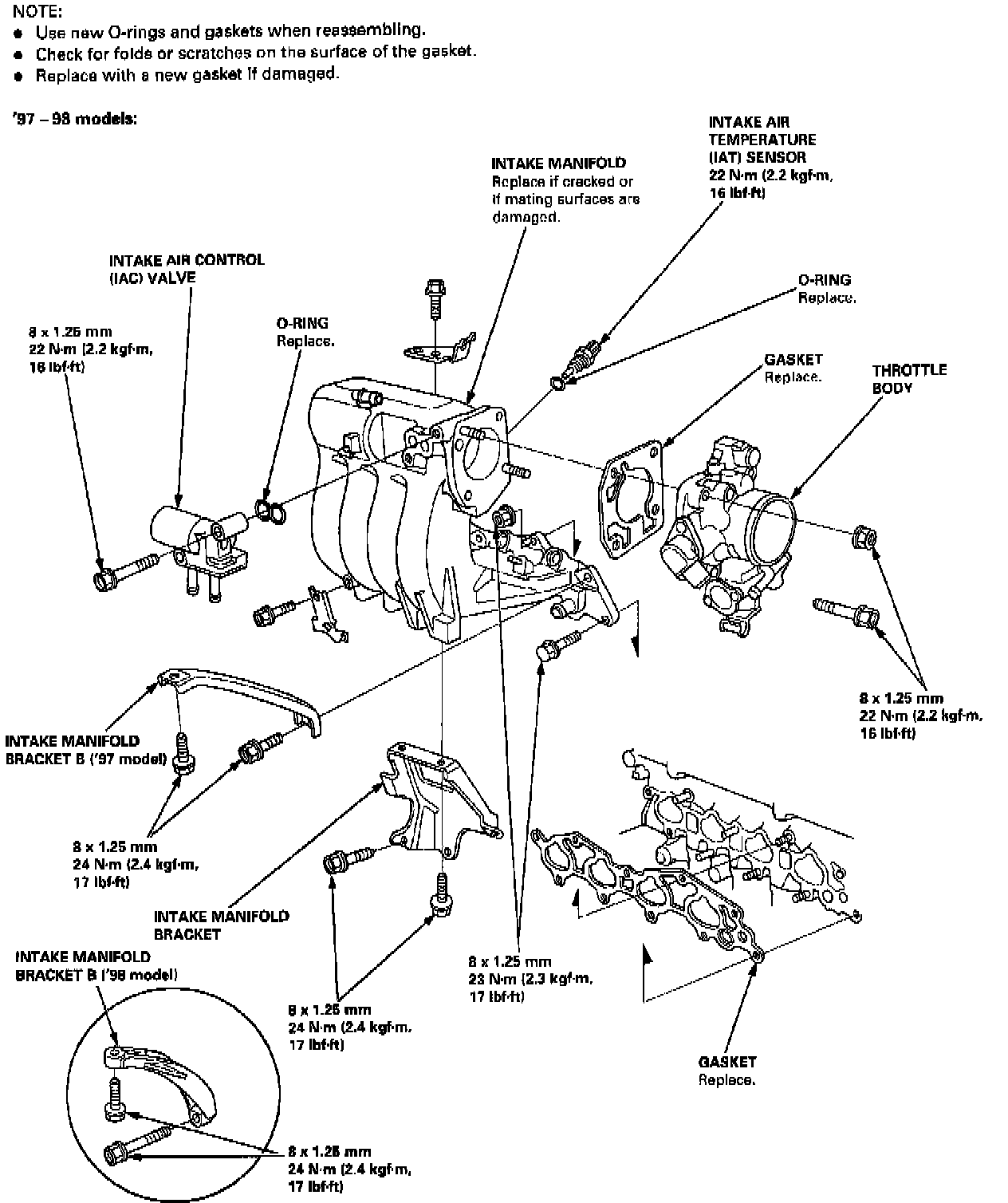

Intake:

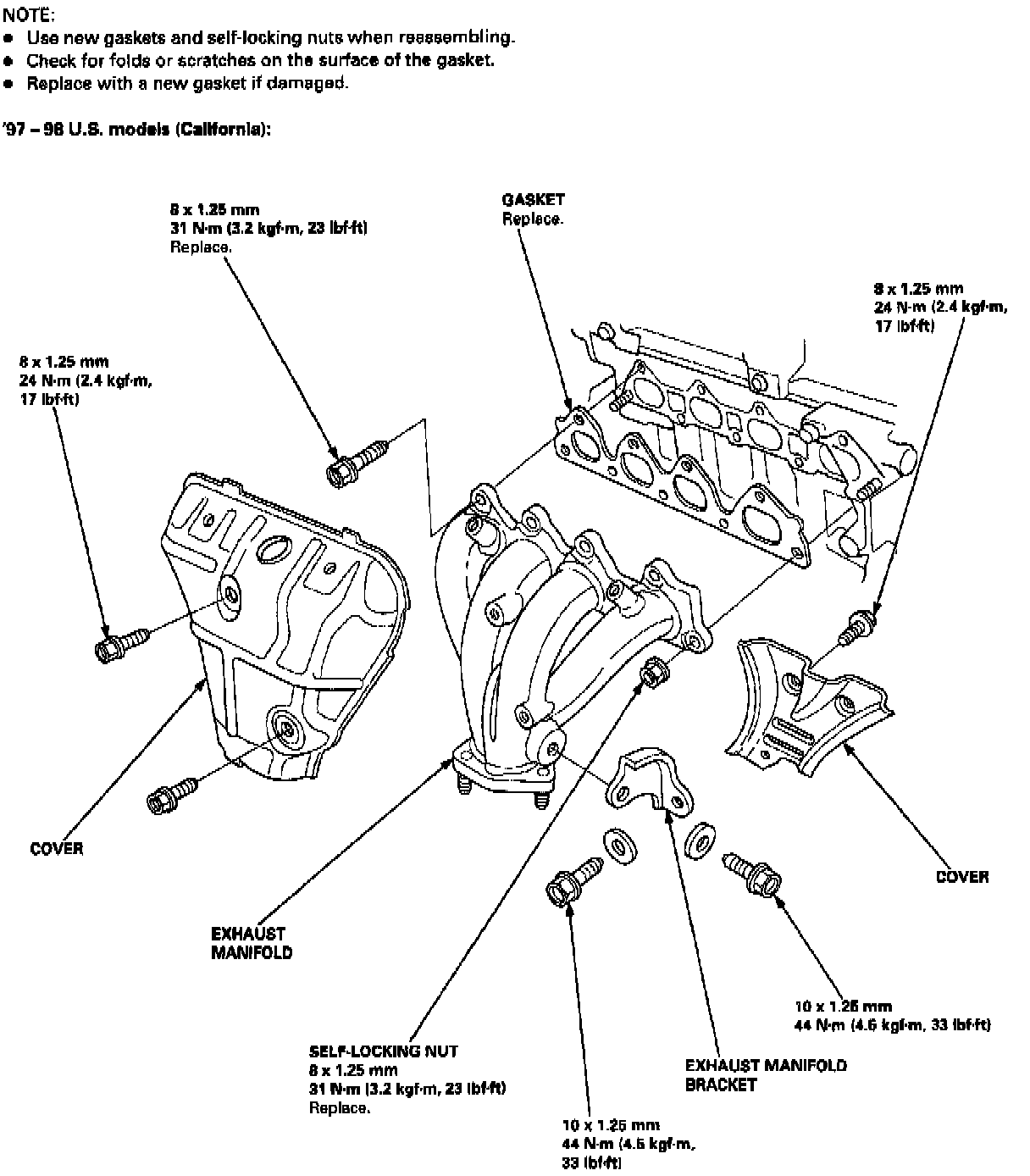

Exhaust Manifold (CA.):

Exhaust Manifold (EXCEPT CA.):

Upper Engine:

Cam Holder Torque/Sequence - Tighten In 2 Steps:

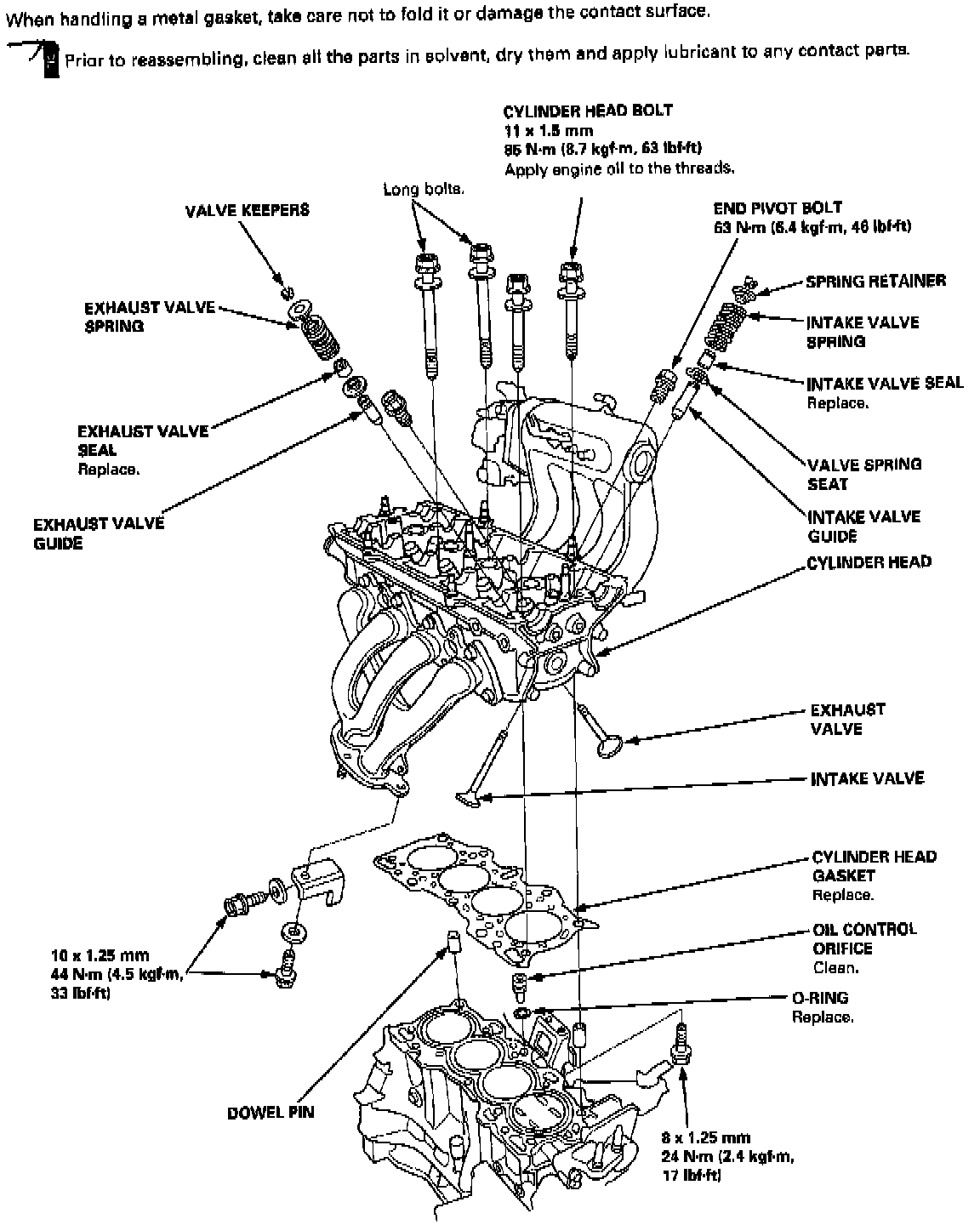

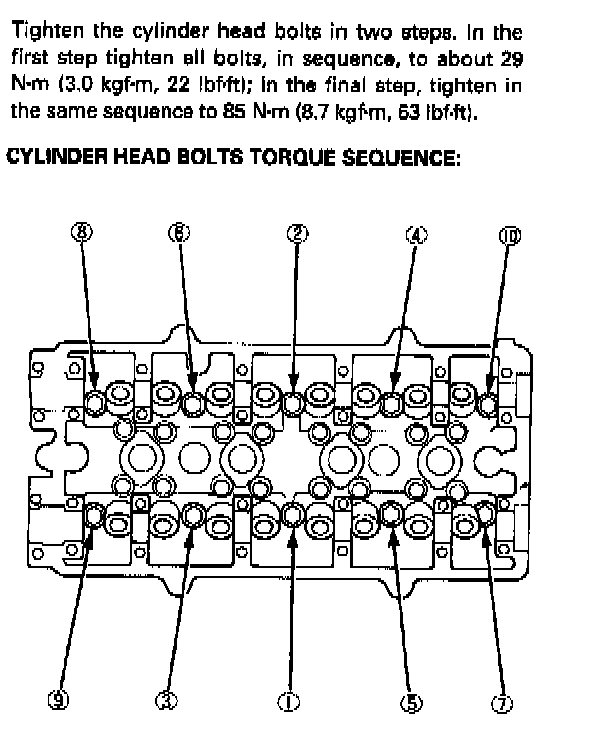

Cylinder Head Torque/Sequence:

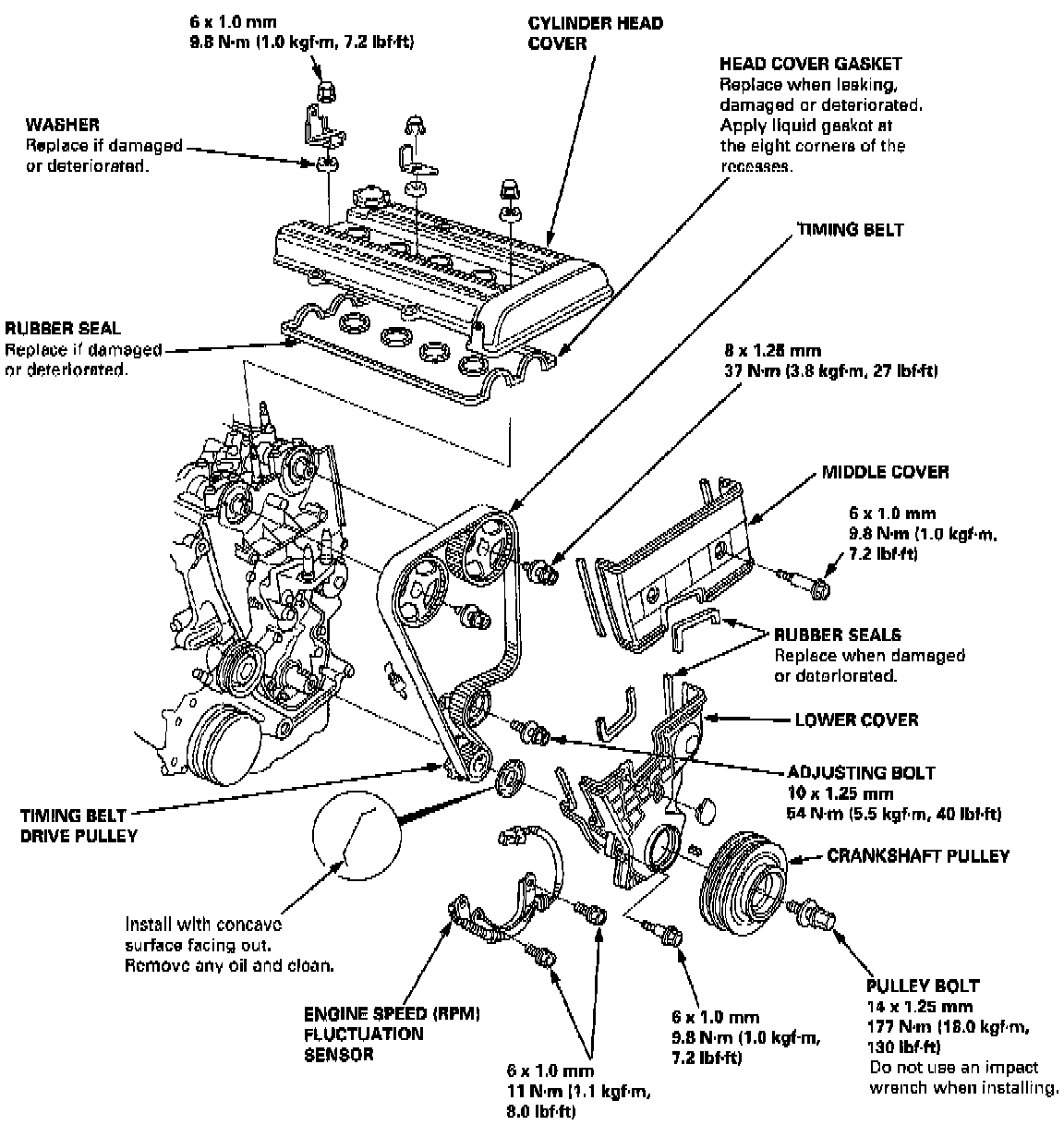

Timing Components:

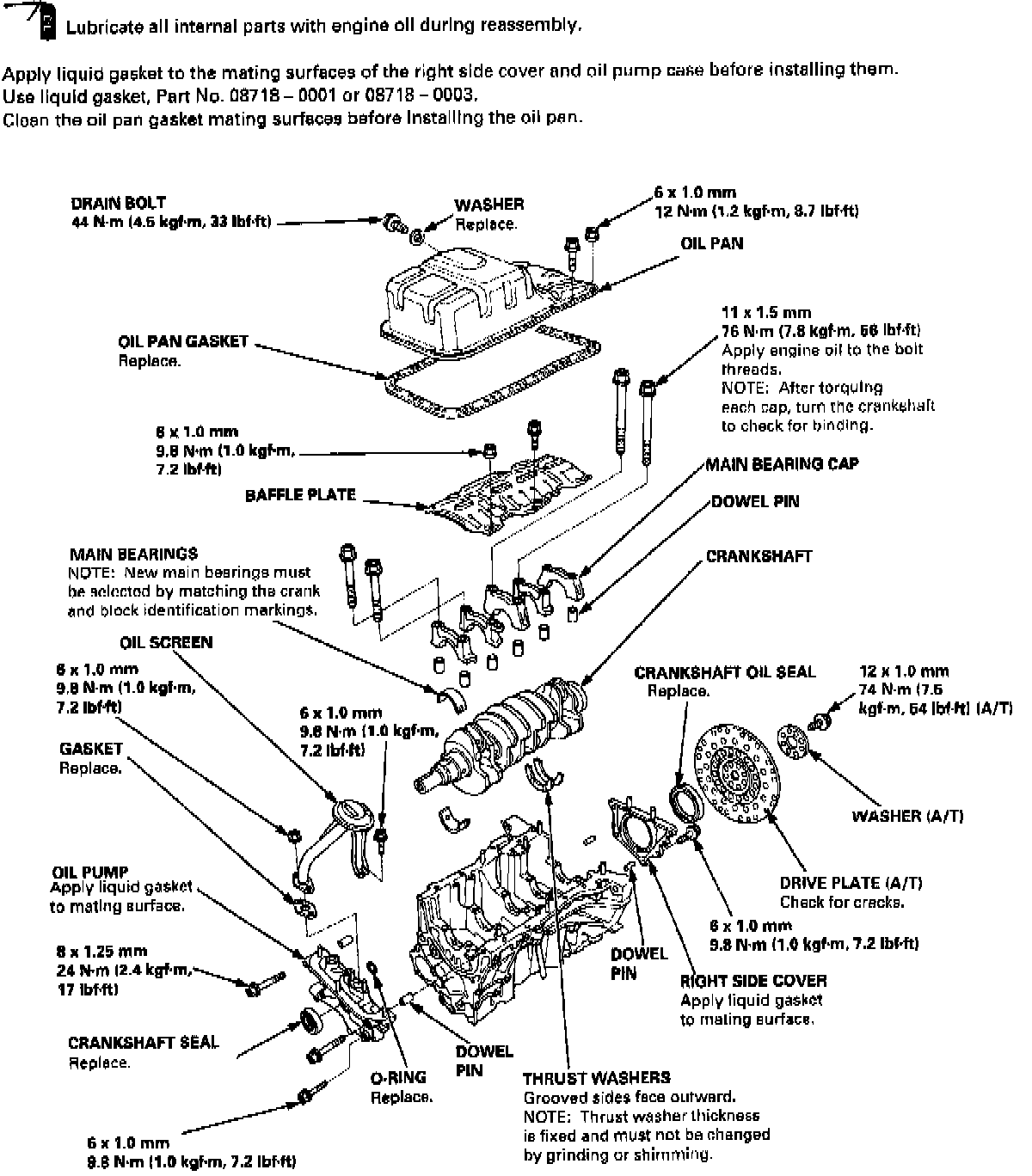

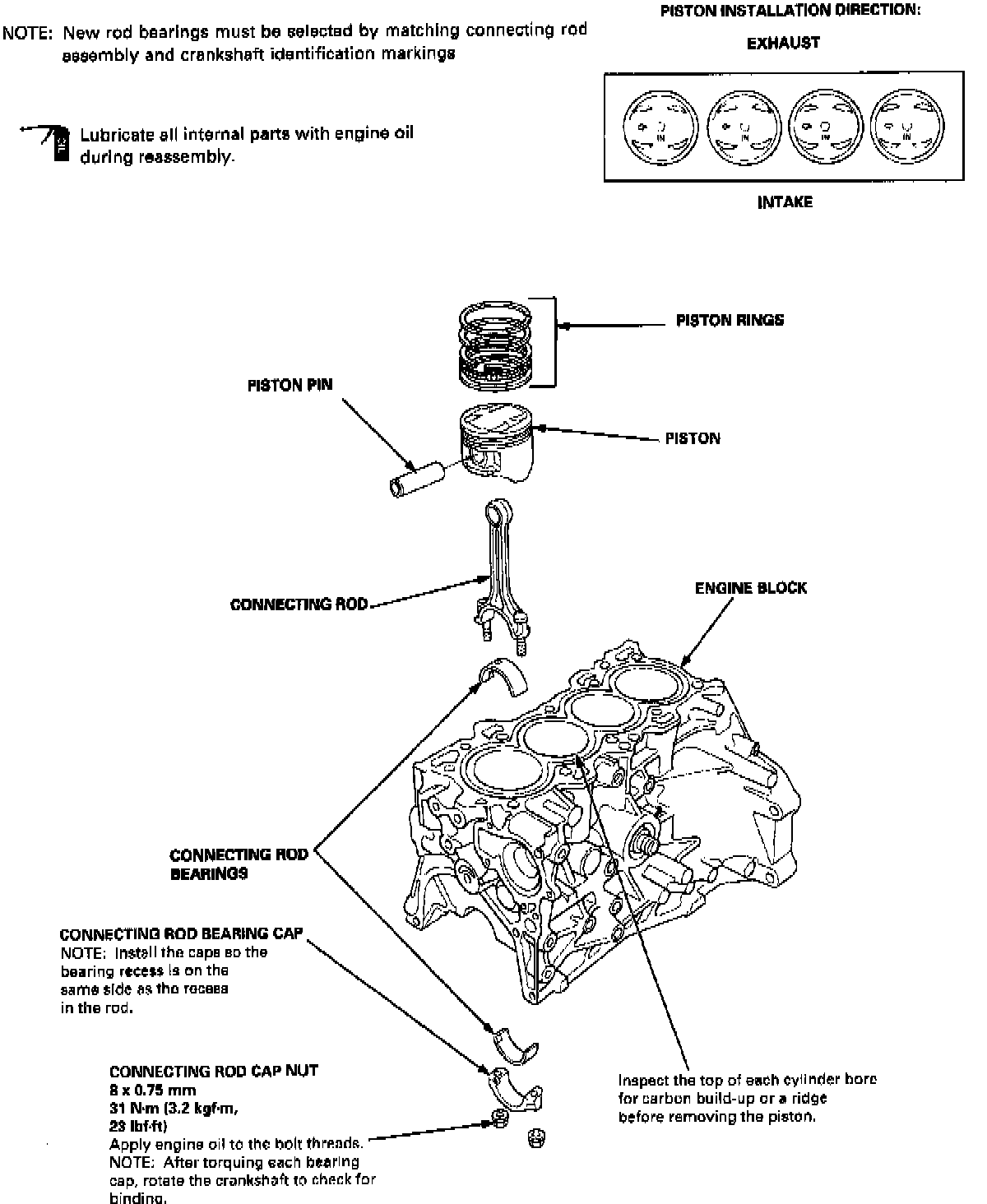

Lower Engine:

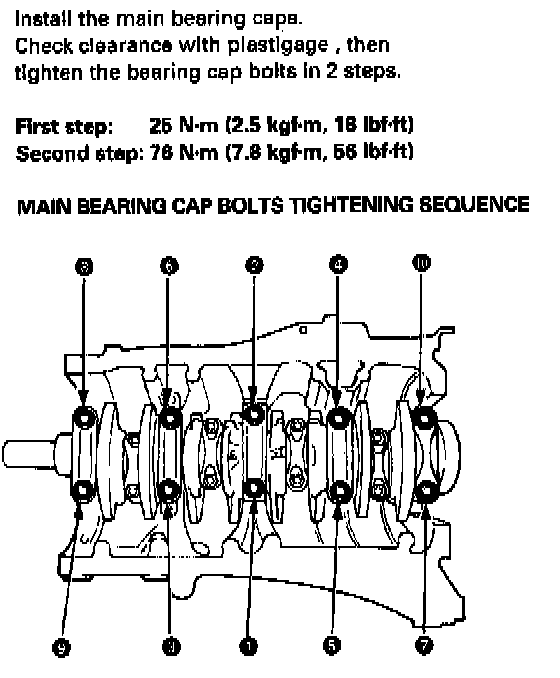

Main Bolt Torque/Sequence:

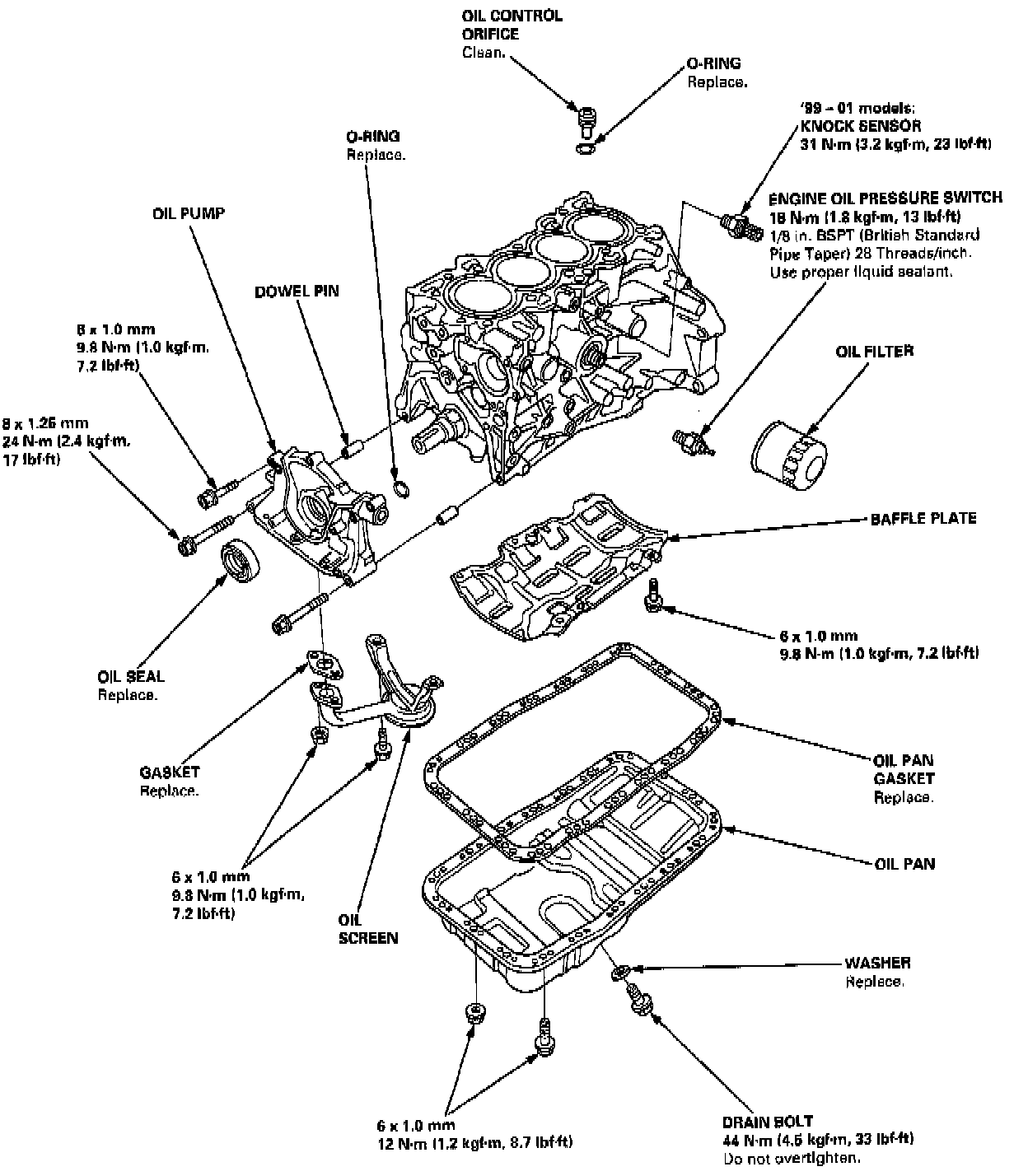

Engine Lubrication:

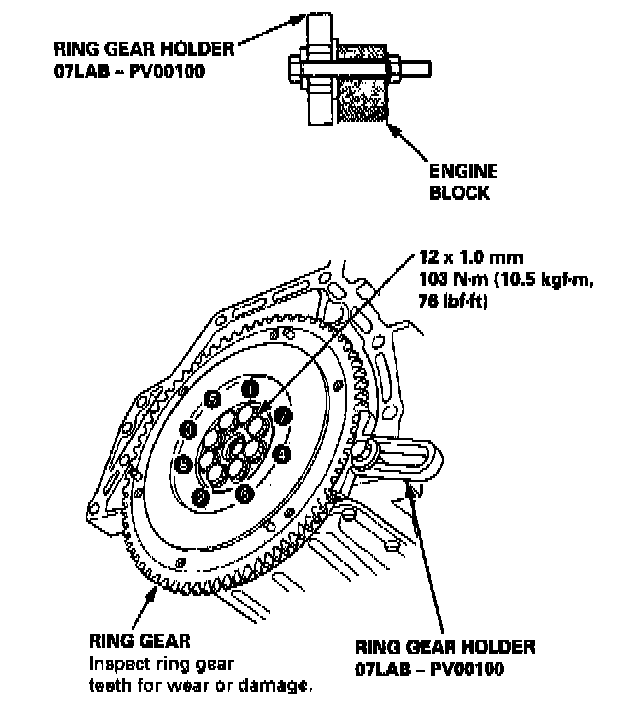

Flywheel (M/T) Torque/Sequence:

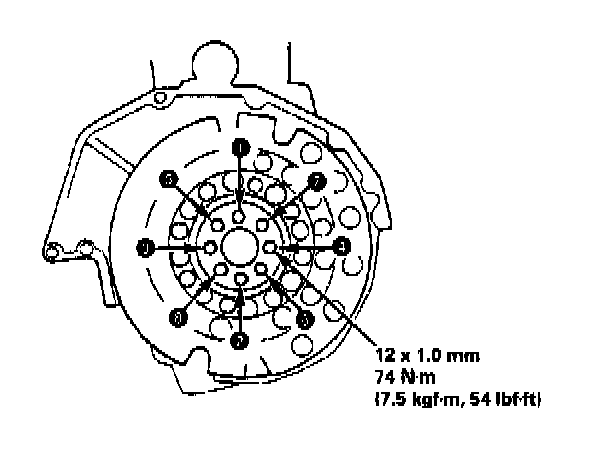

Driveplate (A/T) Torque /Sequence:
