Compressor HVAC: Locations

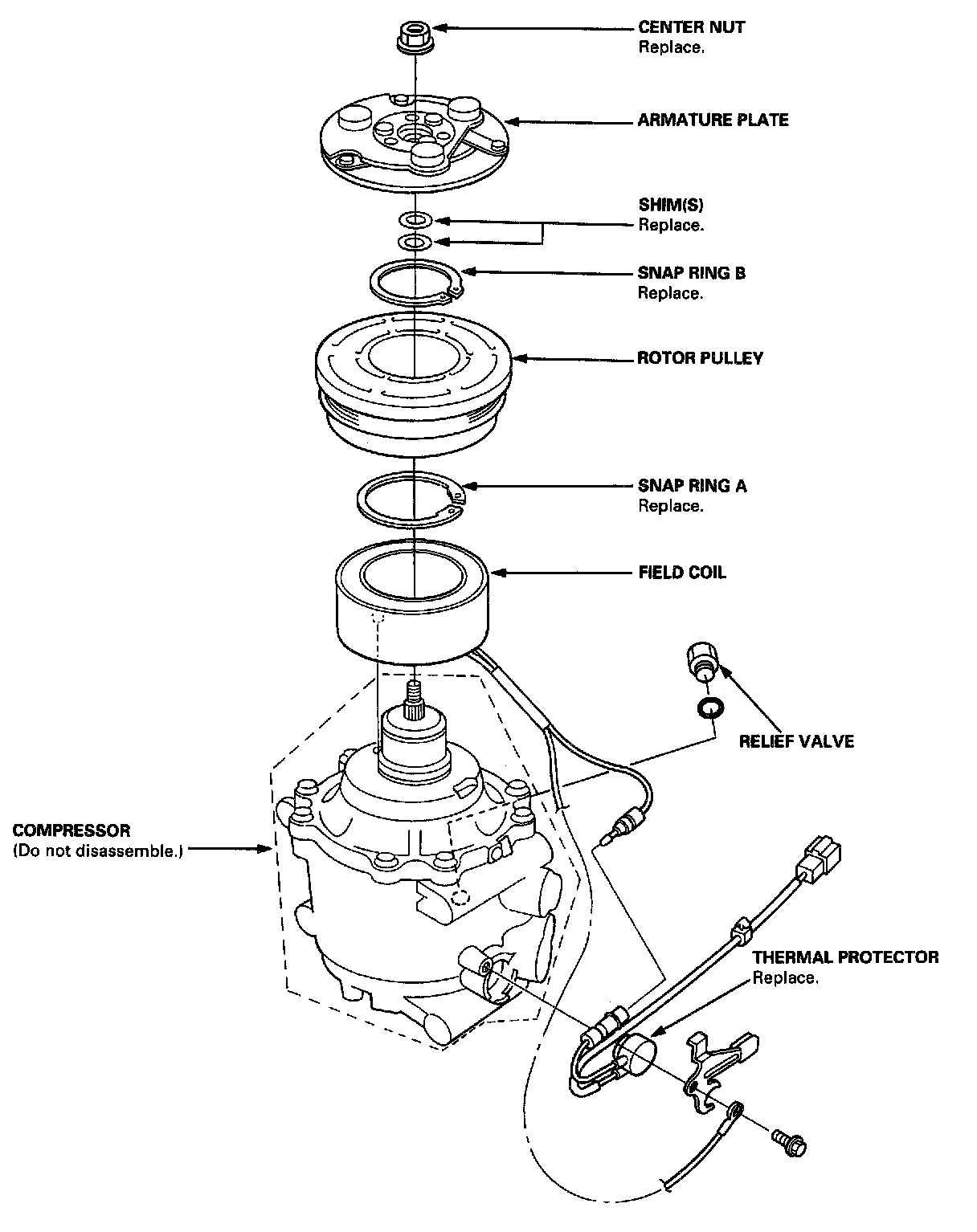

Compressor - Illustrated Index (SANDEN):

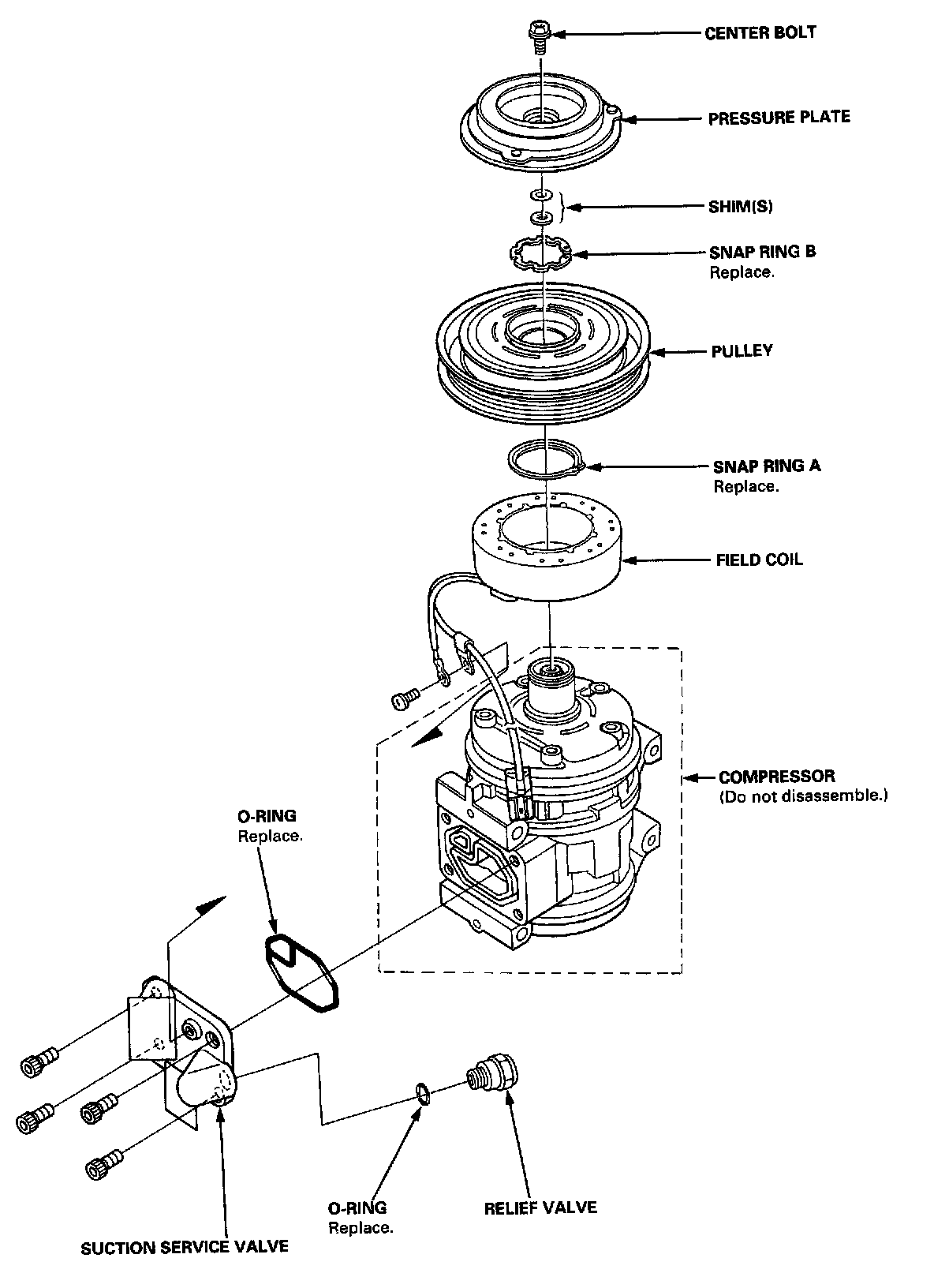

Compressor - Illustrated Index (DENSO):
