Torque Specifications

Timing Components:

Block And Lubrication:

Block (continued):

MAIN BEARING CAP TORQUE
1st step torque: 29 N.m. (22 lb. ft.)
2nd step torque: 74 N.m. (54 lb. ft.)

Connecting Rods:

CONNECTING ROD NUT TORQUE


CRANKSHAFT PULLEY BOLT
Torque: 245 N.m. (181 lb. ft.)

FLEX PLATE BOLTS
Torque: 74 N.m. (54 lb. ft.)

Block (continued):

OIL PUMP AND BALANCER GEAR CASE

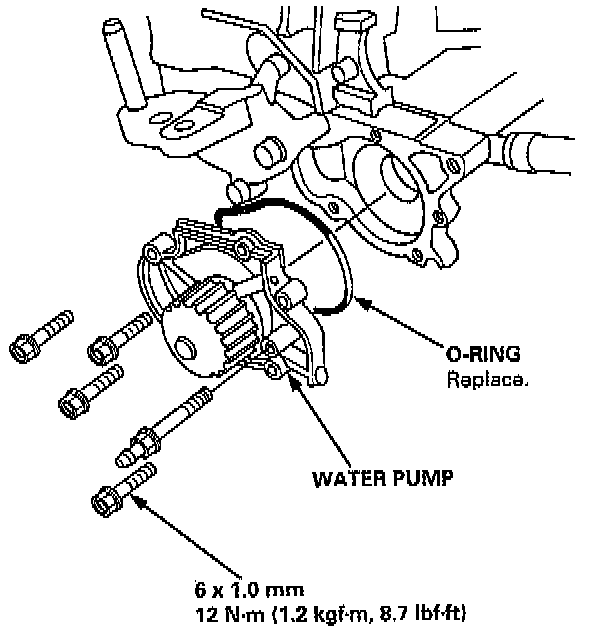

WATER PUMP
