Service Specifications

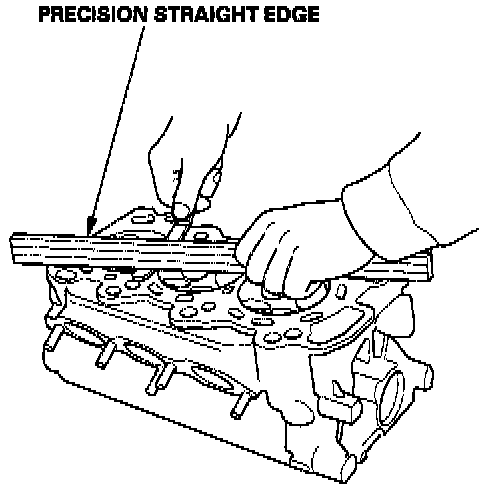

- If warpage is less than 0.05 mm (0.002 inch), cylinder head resurfacing is not required.
- If warpage is between 0.05 mm (0.002 inch) and 0.2 mm (0.008 inch), resurface the cylinder head.
- Maximum resurface limit is 0.2 mm (0.008 inch) based on a height of 121 mm (4.76 inch).

Cylinder Head Height:
Standard (New): 120.95-121.05 mm (4.762-4.766 inch)
