Shift Solenoids B and C

Shift Solenoid Valves B and C Replacement

NOTE: If the shift solenoid valve B and C are replaced or removed at the same time, be sure to reinstall them correctly. The connector color of shift solenoid valve B is black, and the connector color of shift solenoid valve C is brown.

1. Remove the starter.

NOTE: If you are only replacing shift solenoid valve C, starter removal is not needed.





2. Remove the mounting bolt and the shift solenoid valve B.
3. Remove the mounting bolt and the shift solenoid valve C.

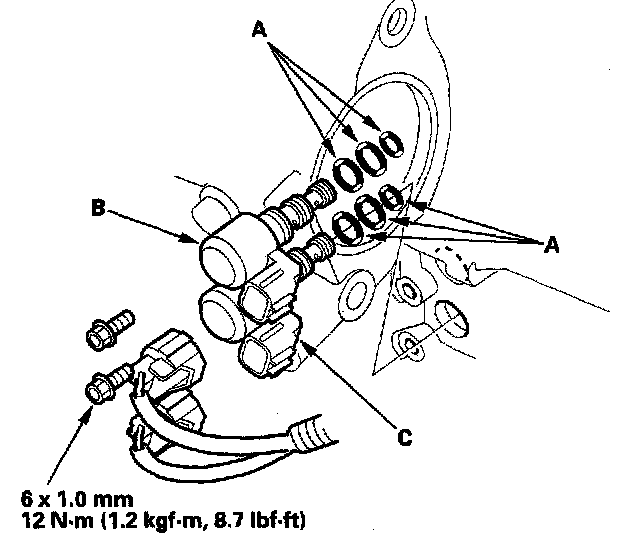

4. Install a new shift control solenoid valve B or C with new O-rings (A). While installing the valves, do not allow dust or other foreign particles to enter the transmission.
5. Check the connector for rust, dirt or oil, then reconnect the connector securely.
6. Install the starter.
