Passenger's Under-Dash Fuse/Relay Box

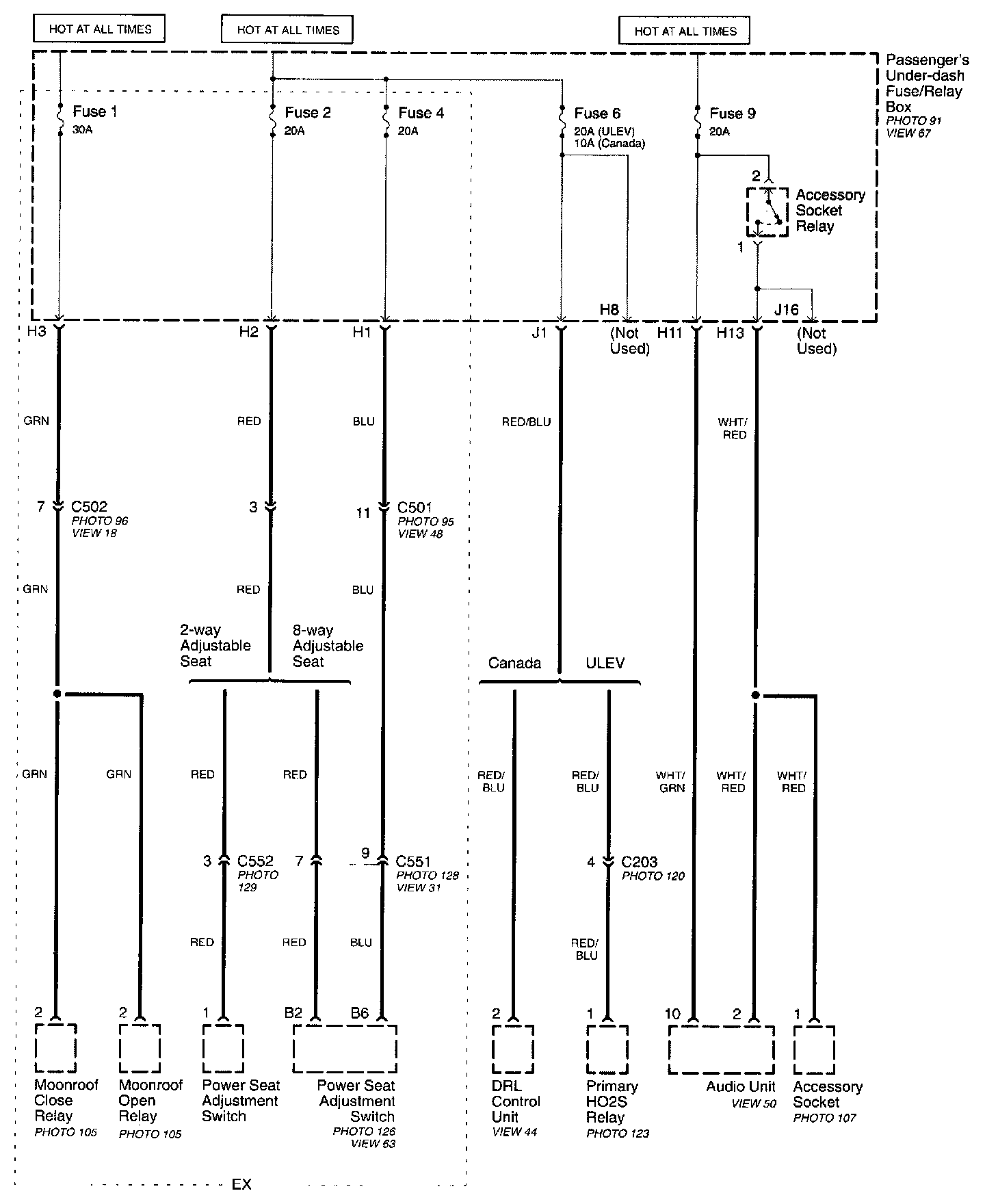

Passenger's Under-dash Fuse/Relay Box - Fuses 1, 2, 4, 6 And 9, Part 1 Of 6:

Fuses 10 And 11, Part 2 Of 6:

Fuses 12 And 13, Part 3 Of 6:

Fuses 7, 8, 15 And 16, Part 4 Of 6:

Fuses 43, 44 And 45, Part 5 Of 6:

Part 6 Of 6:
