Service Specifications *

FRONT BALANCER SHAFT END PLAY





Standard (New): 0.10 - 0.40 mm (0.004 - 0.016 inch)


REAR BALANCER SHAFT END PLAY





Standard (New): 0.04 - 0.15 mm (0.002 - 0.006 inch)

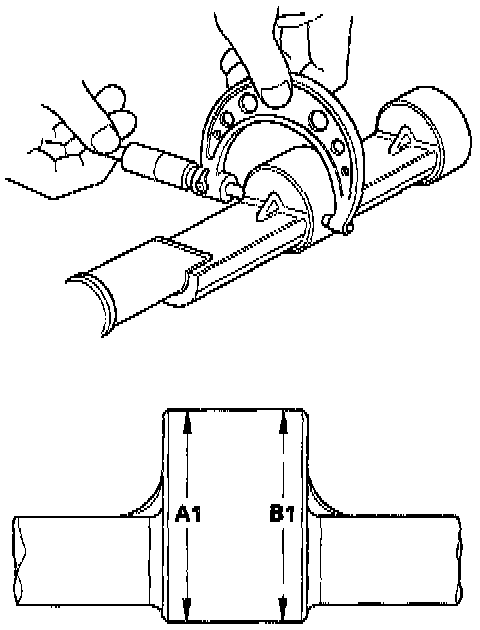

JOURNAL TAPER





Standard (New): 0.005 mm (0.0002 inch)


SHAFT RUNOUT





Balancer Shaft Total Indicated Runout
Standard (New): 0.02 mm (0.001 inch)
Service Limit: 0.03 mm (0.001 inch)

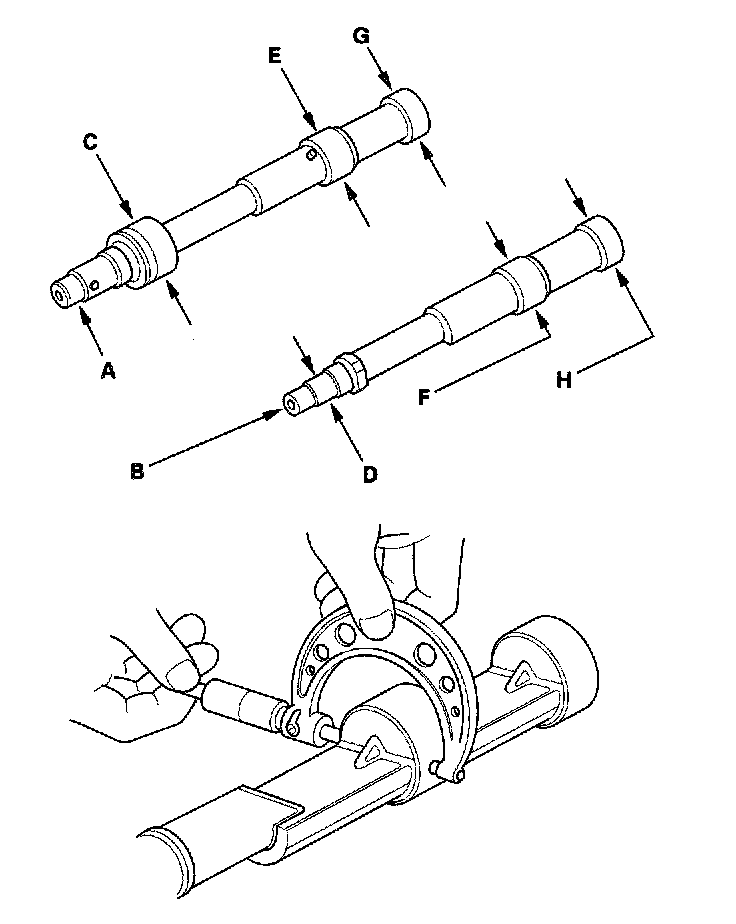

JOURNAL DIAMETER





Standard (New):
No. 1 journal:
Front (C): 42.722 - 42.734 mm (1.6820 - 1.6824 inch)
Rear (D): 20.938 - 20.950 mm (0.8243 - 0.8248 inch)
No. 2 journals front (E) and rear (F): 38.712 - 38.724 mm (1.5241 - 1.5246 inch)
No. 3 journals front (G) and rear (H): 34.722 - 34.734 mm (1.3670 - 1.3675 inch)

Service Limit:
No. 1 journal:
Front (C): 42.71 mm (1.681 inch)
Rear (D): 20.92 mm (0.824 inch)
No. 2 journals front (E) and rear (F): 38.70 mm (1.524 inch)
No. 3 journals front (G) and rear (H): 34.71 mm (1.367 inch)

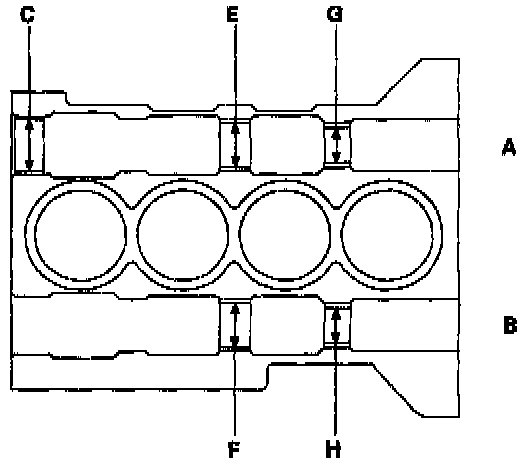

BEARING INNER DIAMETER





Standard (New):
No. 1 journal:
Front (C): 42.800 - 42.820 mm (1.6850 - 1.6858 inch)
Rear (D): 21.000 - 21.013 mm (0.8268 - 0.8273 inch)
No. 2 journals front (E) and rear (F): 38.800 - 38.820 mm (1.5276 - 1.5283 inch)
No. 3 journals front (G) and rear (H): 34.800 - 34.820 mm (1.3701 - 1.3709 inch)

Service Limit:
No. 1 journal:
Front (C): 42.83 mm (1.686 inch)
Rear (D): 21.02 mm (0.828 inch)
No. 2 journals front (E) and rear (F): 38.83 mm (1.529 inch)
No. 3 journals front (G) and rear (H): 34.83 mm (1.371 inch)


BEARING TO JOURNAL OIL CLEARANCE
BEARING I.D.-JOURNAL 0.D.= 0IL CLEARANCE
Shaft-to-Bearings Oil Clearances
Standard (New):
No. 1 front journal, No. 3 front and rear journals: 0.066 - 0.098 mm (0.0026 - 0.0039 inch)
No. 2 front and rear journals: 0.076 - 0.108 mm (0.0030 - 0.0043 inch)
No. 1 rear journal: 0.050 - 0.075 mm (0.0020 - 0.0030 inch)

Service Limit:
No.1 front journal, No. 3 front and rear journals: 0.12 mm (0.005 inch)
No. 2 front and rear journals: 0.13 mm (0.005 inch)
No. 1 rear journal: 0.09 mm (0.004 inch)
