ABS Pump Motor Relay

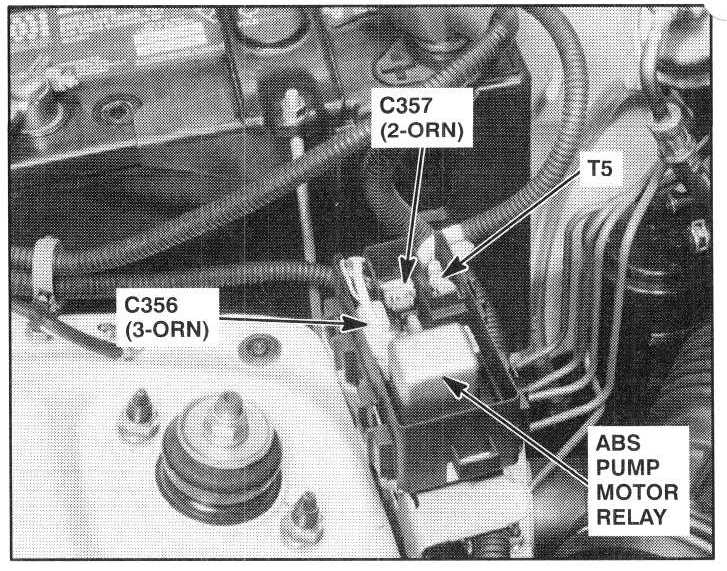

ABS Pump Motor Relay
Engine Compartment:
Right Rear Corner of Engine Compartment
