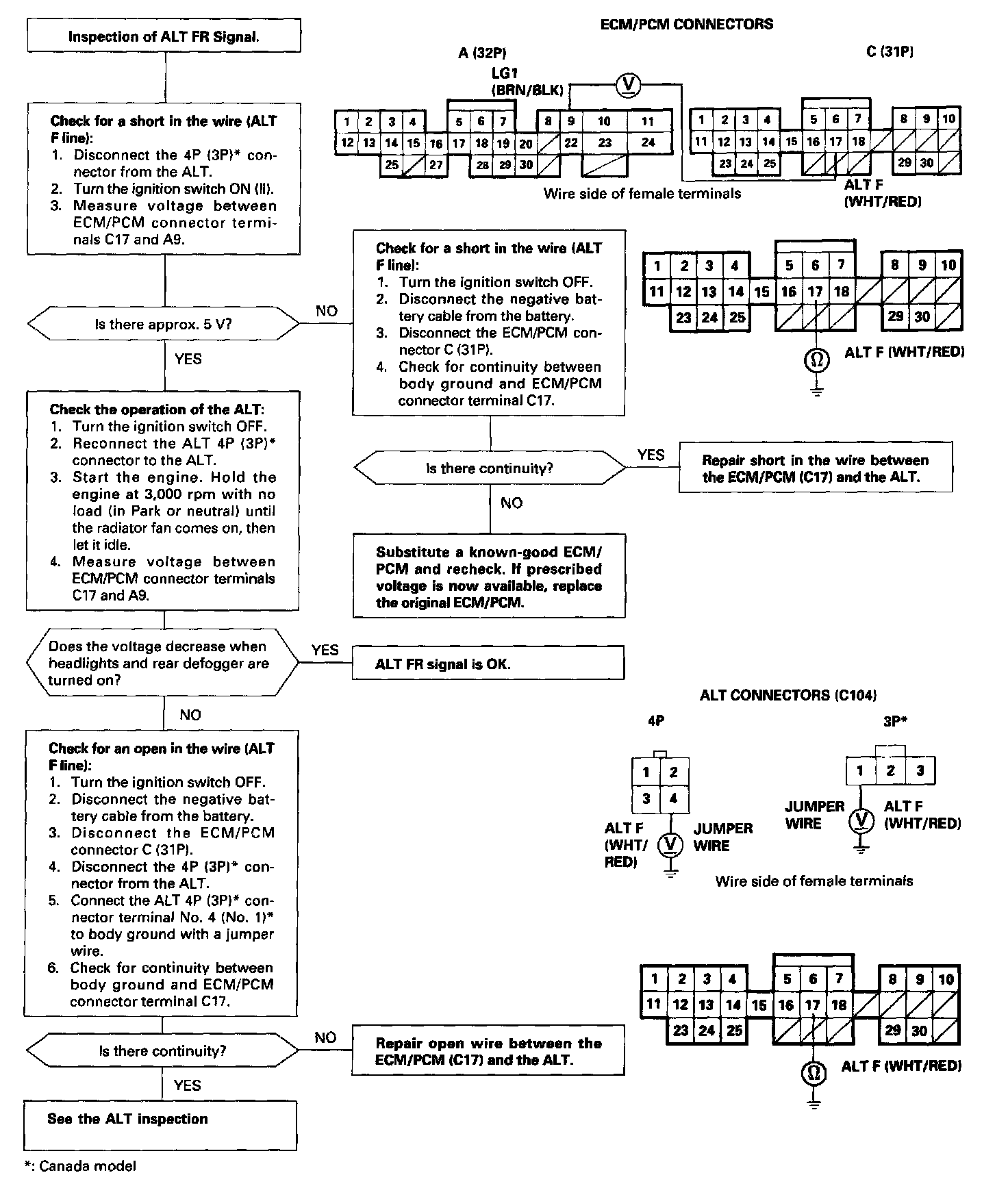

Alternator (ALT) FR Signal
Alternator (ALT) FR Signal
This signals the
ECM/PCM
when the Alternator (ALT) is charging.
