Operation CHARM
: Car repair manuals for everyone.
Home
>>
Honda
>>
1998
>>
Civic EX Coupe L4-1590cc 1.6L SOHC (VTEC) MFI
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Mirrors
>>
System Diagram
>>
With Defogger
>>
Wiring Diagram
Wiring Diagram

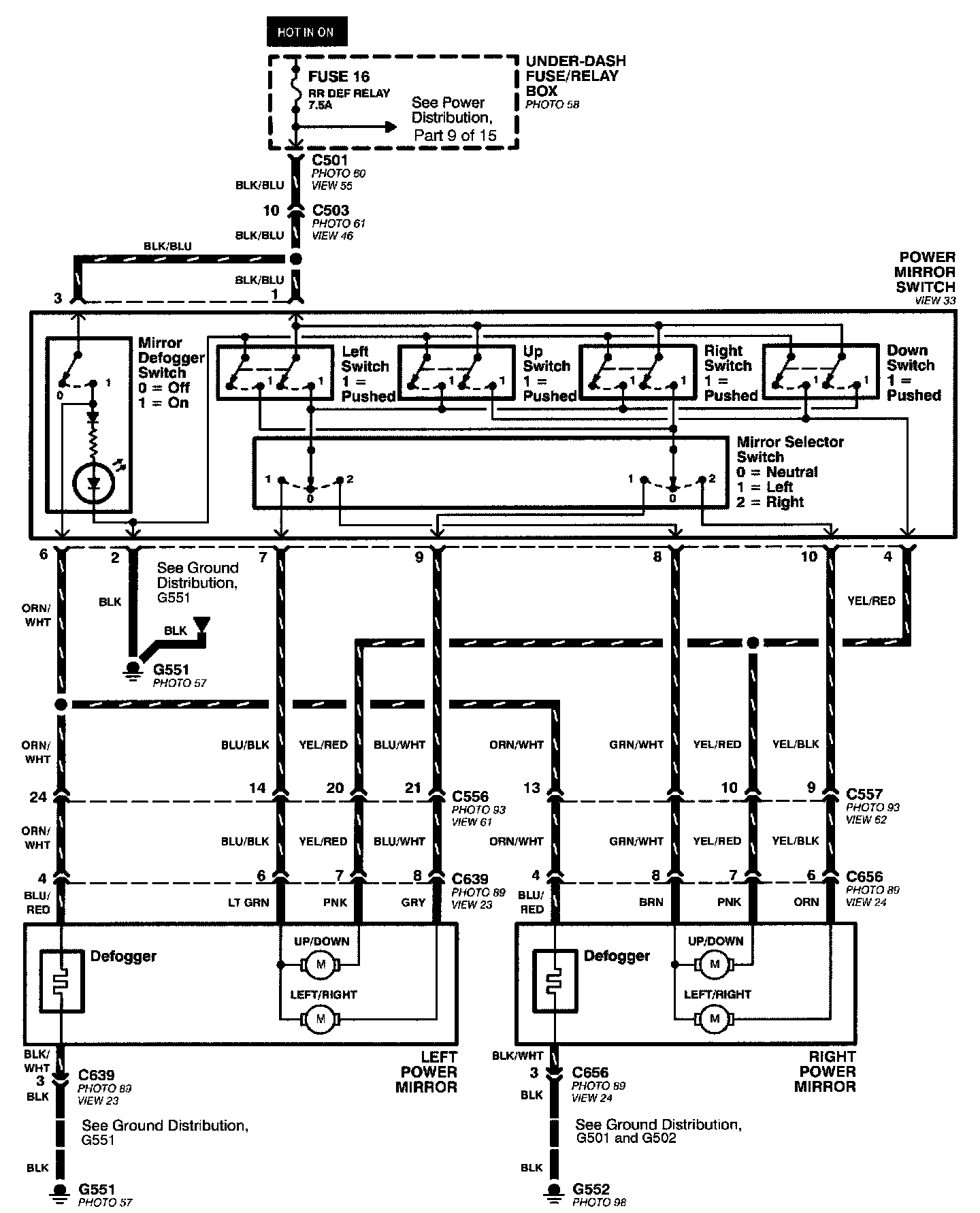

Power Mirrors (With Defogger):
