Wiring Diagrams

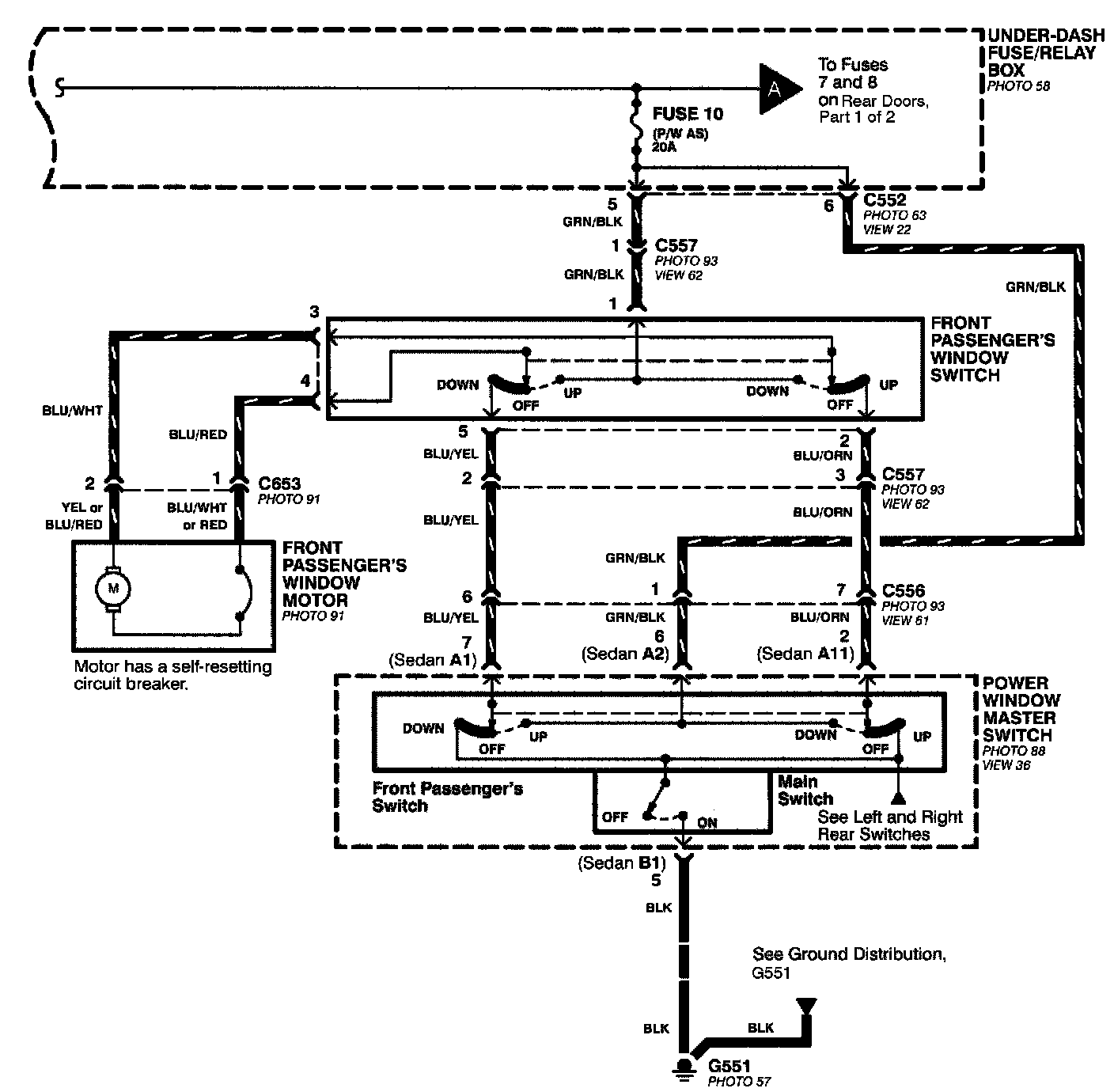

Driver's and Front Passenger's Doors Part 1 of 2:



Driver's and Front Passenger's Doors Part 2 of 2:



Rear Doors Part 1 of 2:



Rear Doors Part 2 of 2:
