Operation CHARM: Car repair manuals for everyone.
Home >> Honda >> 1998 >> Passport EX 2WD V6-3.2L DOHC (6VD1) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Heating and Air Conditioning >> System Diagram >> A/C Fan Diagrams

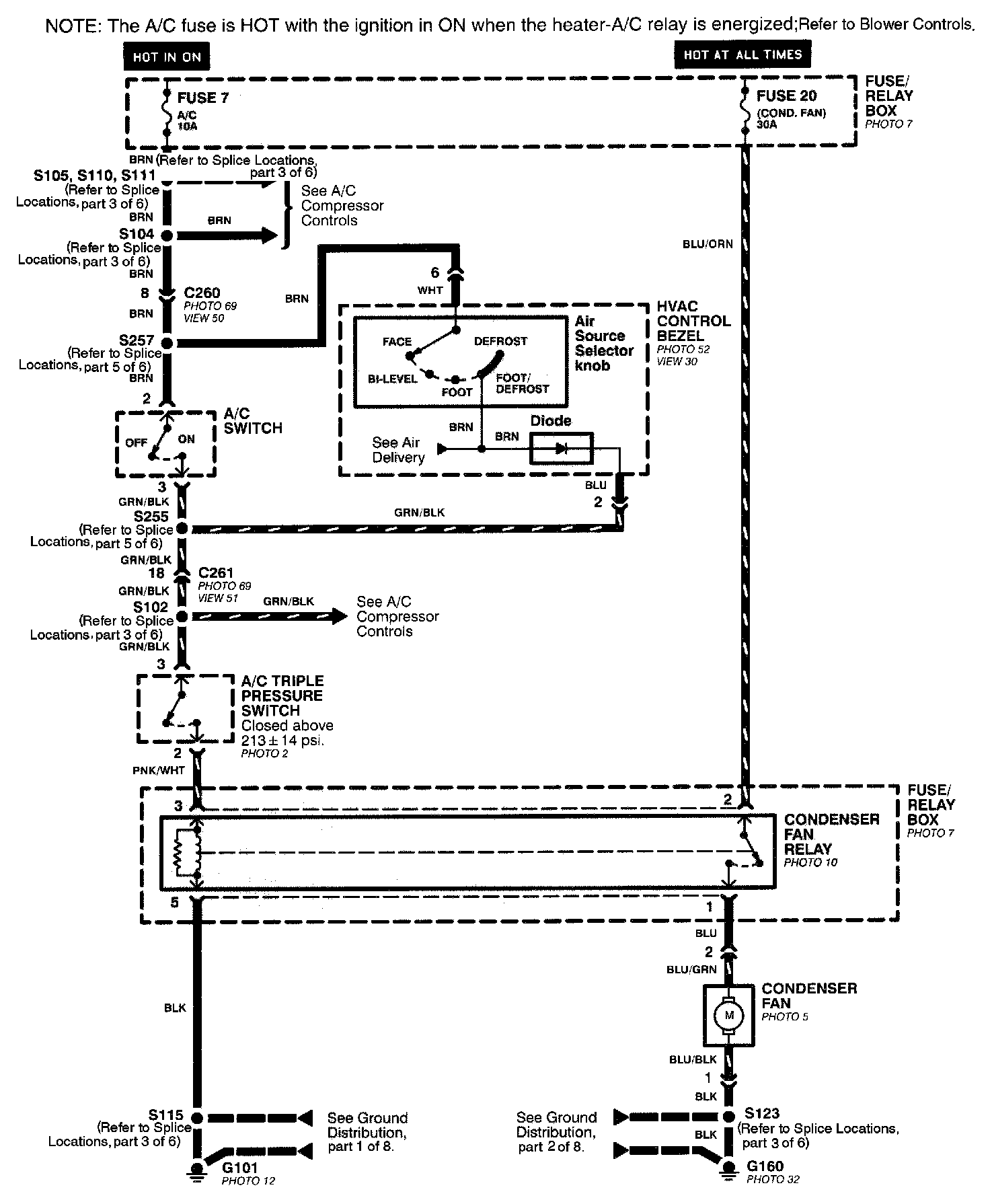

A/C Fan Diagrams
