Prelude Type-SH L4-2157cc 2.2L DOHC H22A4 (VTEC) 16V
>>
Repair and Diagnosis
>>
Diagrams
>>
Harness
>>

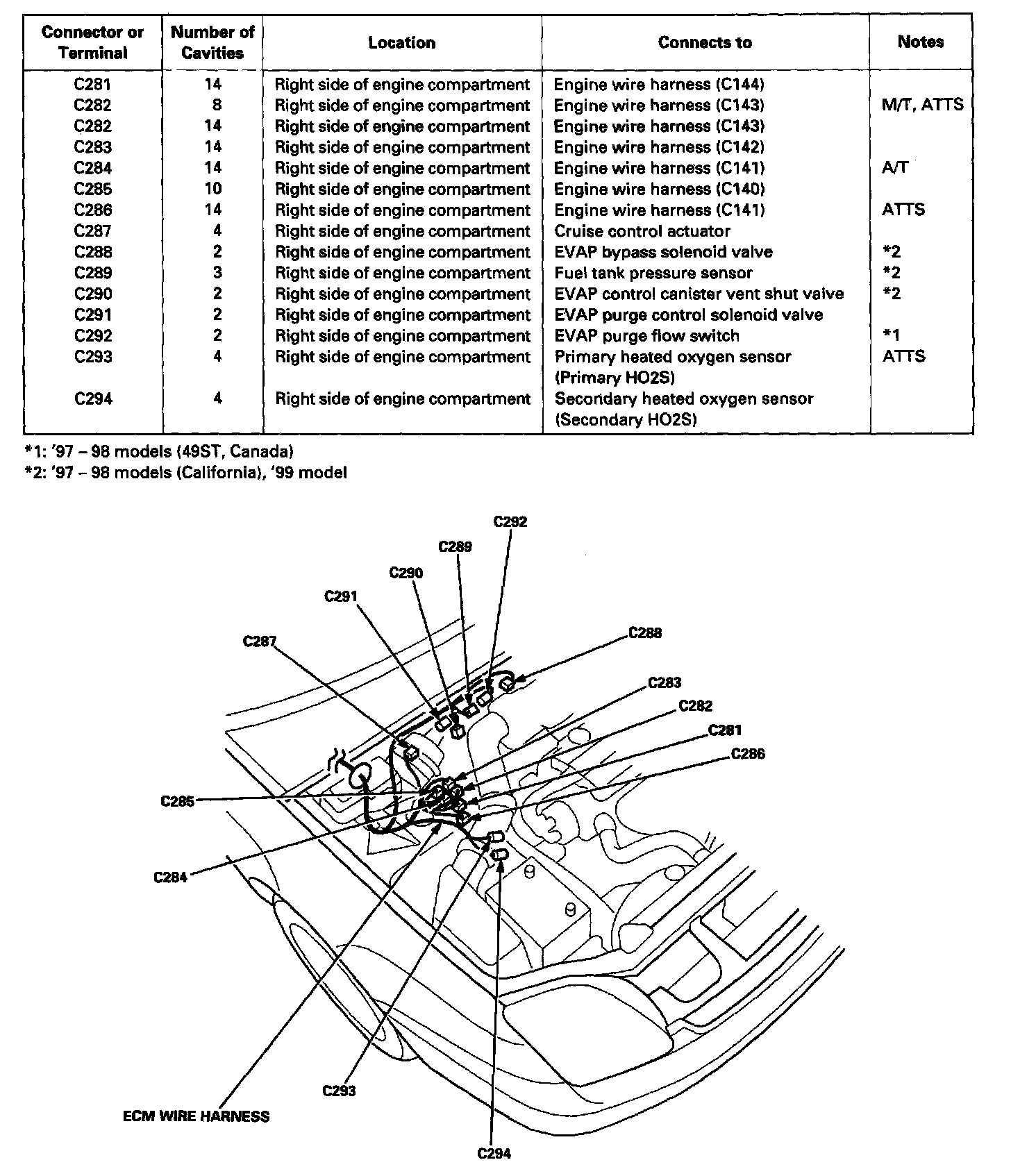

ECM Wire Harness (Engine Compartment Branch)
ECM Wire Harness (Engine Compartment Branch)
ECM Wire Harness (Engine Compartment Branch)
