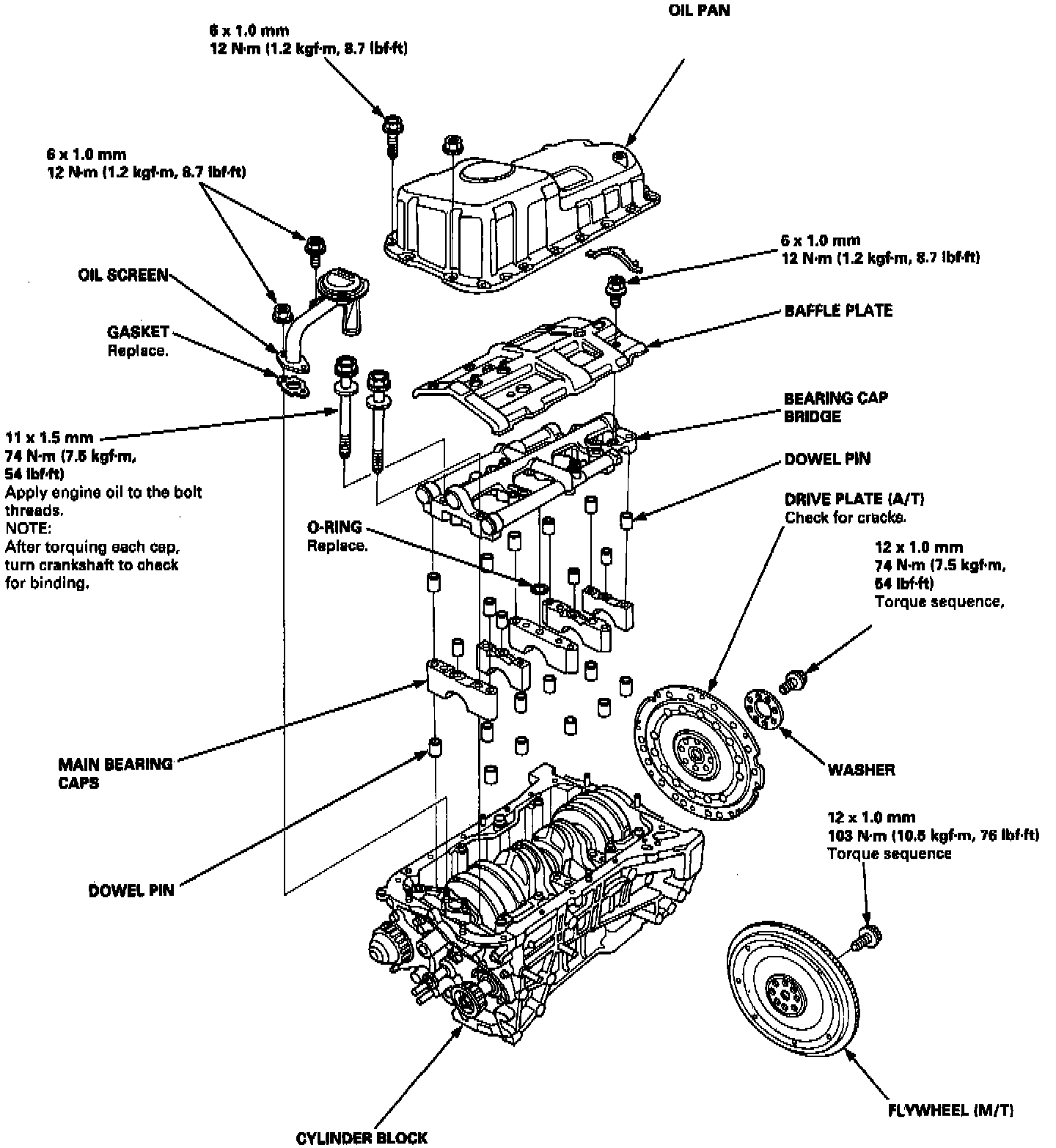

Cylinder Block Assembly: Diagrams

OIL:
- Lubricate all external parts with engine oil during reassembly.
- Lubricate all internal parts with engine oil during reassembly.

NOTE:
- Apply liquid gasket to the mating surfaces of the right side cover and oil pump case before installing them.
- Use liquid gasket, part No. 08718-0001 or 08718-0003.
- New rod bearings must be selected by matching connecting rod and crankshaft identification markings.
