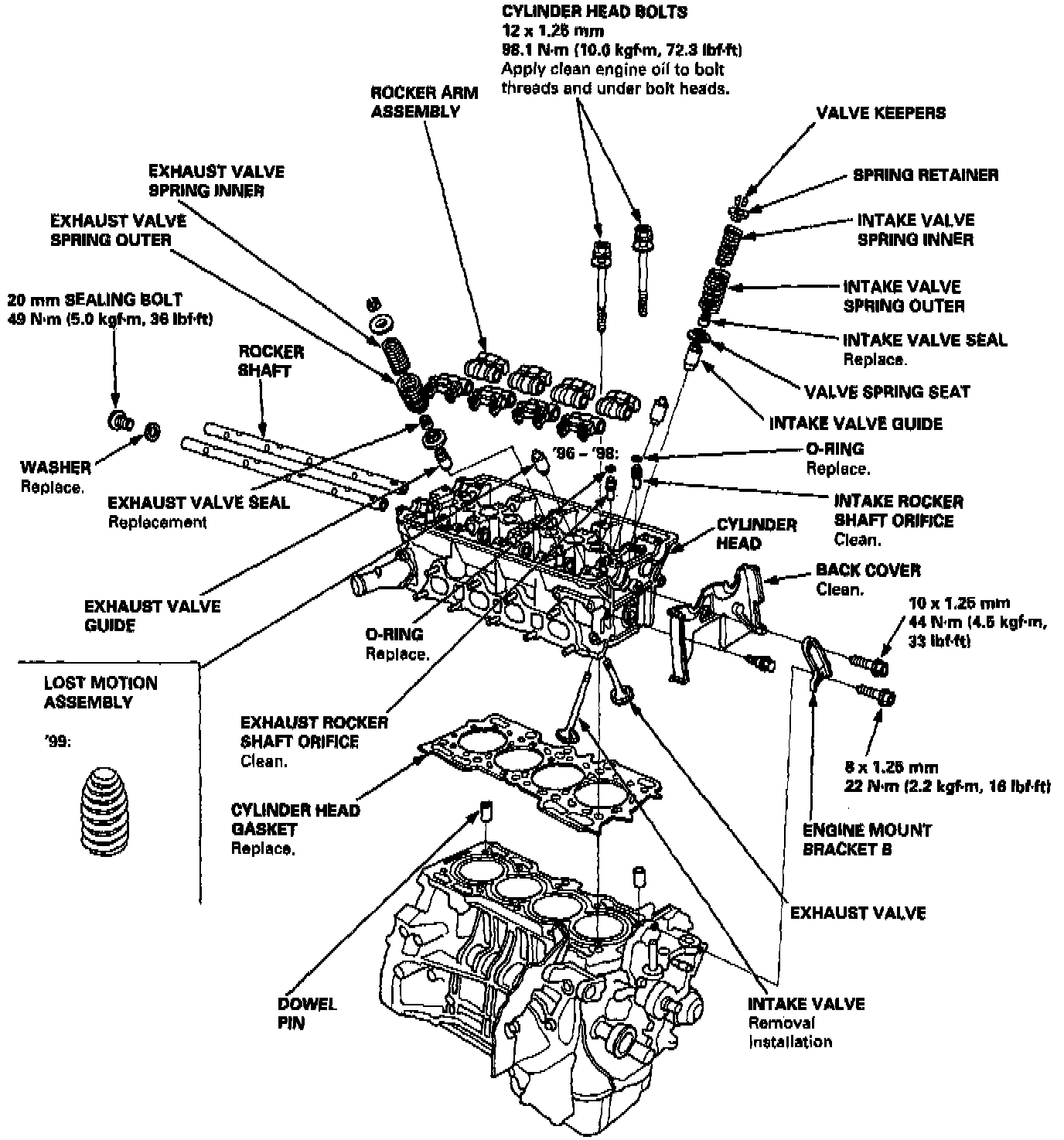

Cylinder Head Assembly: Diagrams

CAUTION:
- To avoid damaging the cylinder head, wait until the engine coolant temperature drops below 100°F (38°C) before removing it.
- In handling a metal gasket, take care not to fold it or damage the contact surface of the gasket.

NOTE:
- Use new O-rings and gaskets when reassembling.
- Clean the oil control orifice before installing.

OIL: Prior to reassembling, clean all the parts in solvent, dry them and apply lubricant to any contact parts.
