Operation CHARM
: Car repair manuals for everyone.
Home
>>
Honda
>>
1999
>>
Civic DX Hatchback L4-1590cc 1.6L SOHC MFI
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Power and Ground Distribution
>>

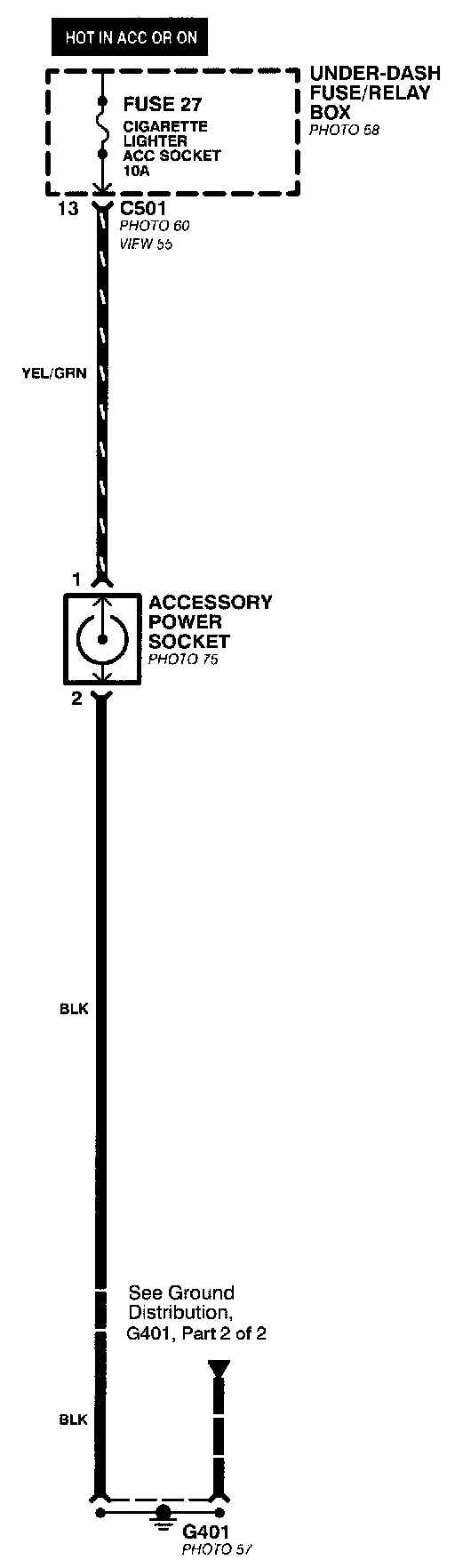

Auxiliary Power Outlet
Auxiliary Power Outlet
