Electrical Diagrams

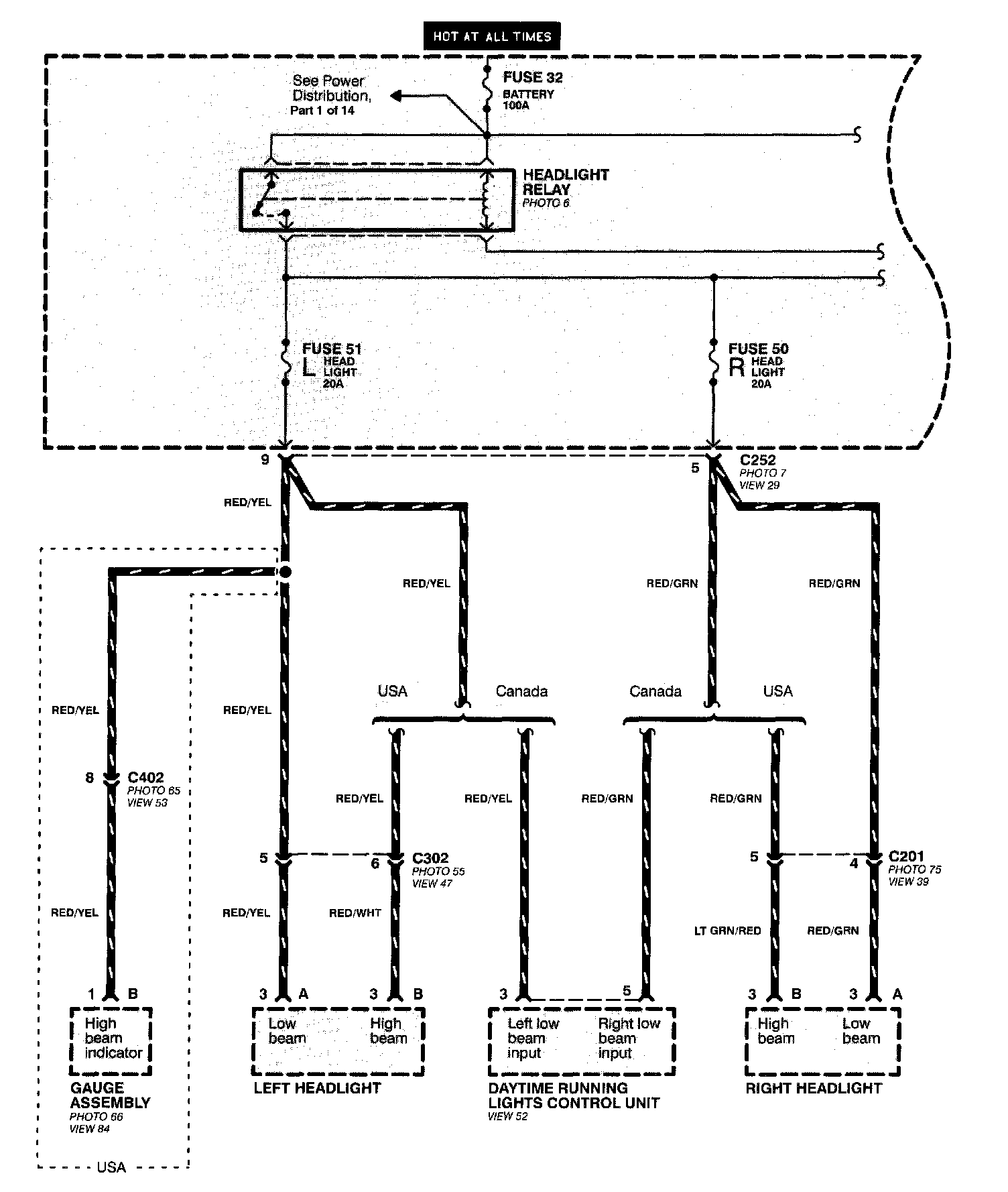

Headlight Switch (Part 1 Of 4):

Headlight Switch (Part 1 Of 4)
Daytime Running Light Control Unit
Gauge Assembly
Headlight Relay
Left Headlight
Right Headlight

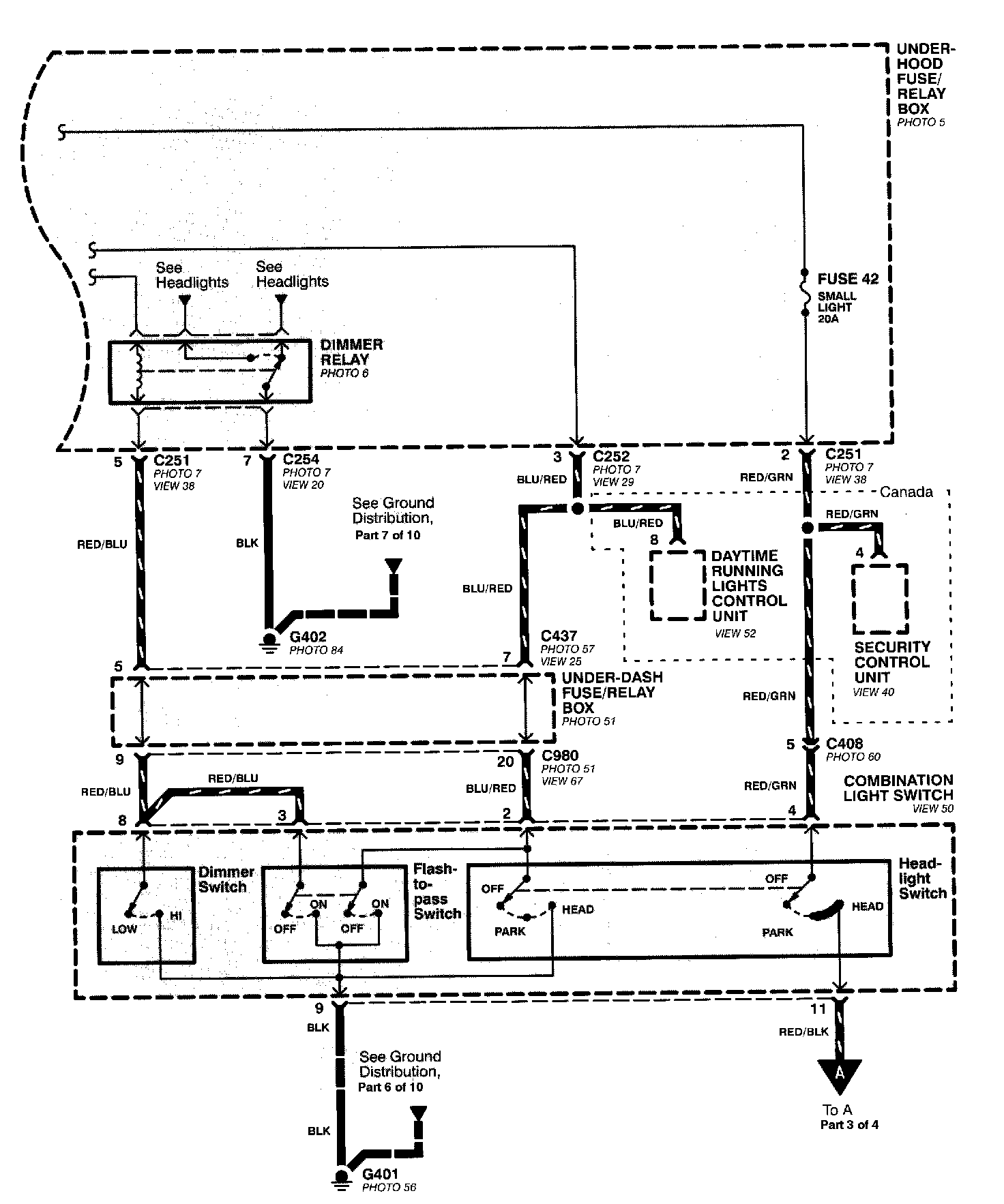

Headlight Switch (Part 2 Of 4):

Headlight Switch (Part 2 Of 4)
Combination Light Switch
- Dimmer Switch
- Flash-To-Pass Switch
- Headlight Switch
Daytime Running Lights Control Unit
Security System Connector
Under-Dash Fuse/Relay Box
Under-Hood Fuse/Relay Box
- Dimmer Relay

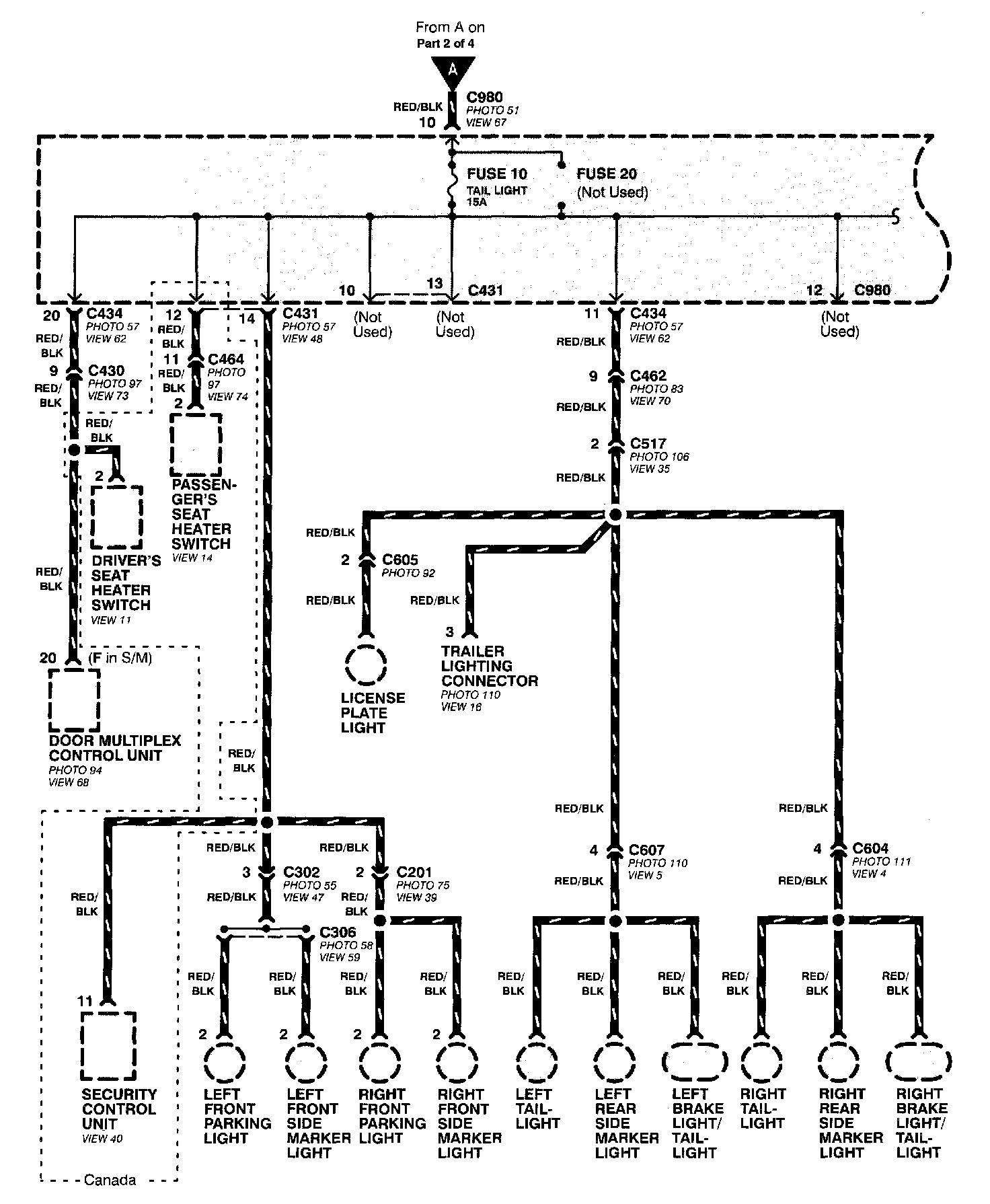

Headlight Switch (Part 3 Of 4):

Headlight Switch (Part 3 Of 4)
Door Multiplex Control Unit
Security Control Unit

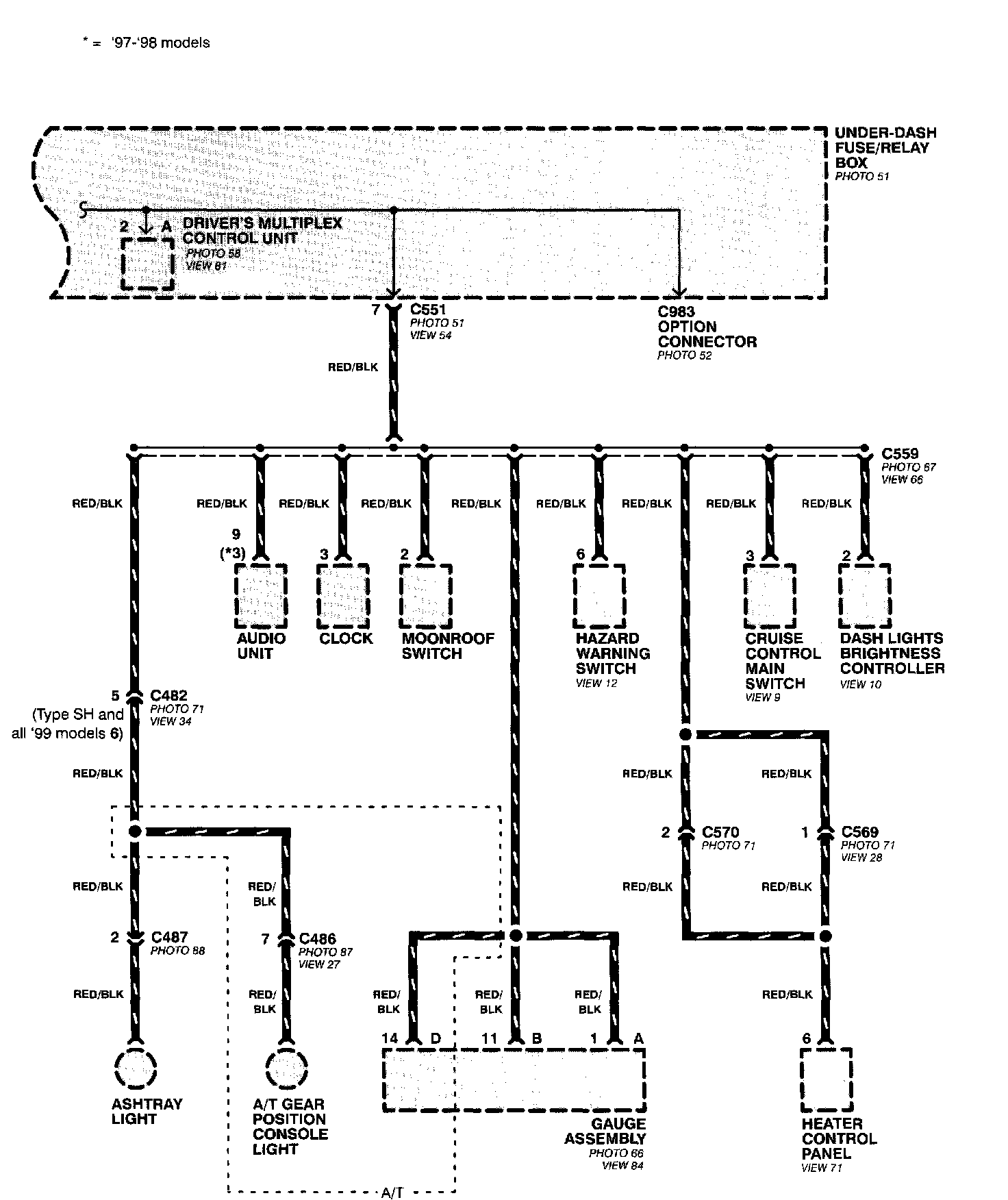

Headlight Switch (Part 4 Of 4):

Headlight Switch (Part 4 Of 4)
Audio Unit
Clock
Cruise Control Main Switch
Dash Lights Brightness Controller
Gauge Assembly
Hazard Warning Switch
Heater Control Panel
Moonroof Switch
Under-Dash Fuse/Relay Box
- Driver's Multiplex Control Unit
