System Specifications

Head Bolt Torque Sequence:

Cylinder Head Tightening Sequence

Tighten the cylinder head bolts sequentially in three steps.
1st step torque: 39 Nm (29 ft. lbs.)
2nd step torque: 69 Nm (51 ft. lbs.)
3rd step torque: 98.1 Nm (72.3 ft. lbs.)

Intake:

Intake Manifold and Components





Camshaft Holder Torque and Sequence





Main Bearing Tightening Sequence


1st step torque: 29 Nm (22 ft. lbs.)
2nd step torque: 74 Nm (54 ft. lbs.).

Cylinder Head:

Cylinder Head Cover, Camshaft, and Components

Cylinder Head Cont.:

Cylinder Head Components

Exhaust Manifold:

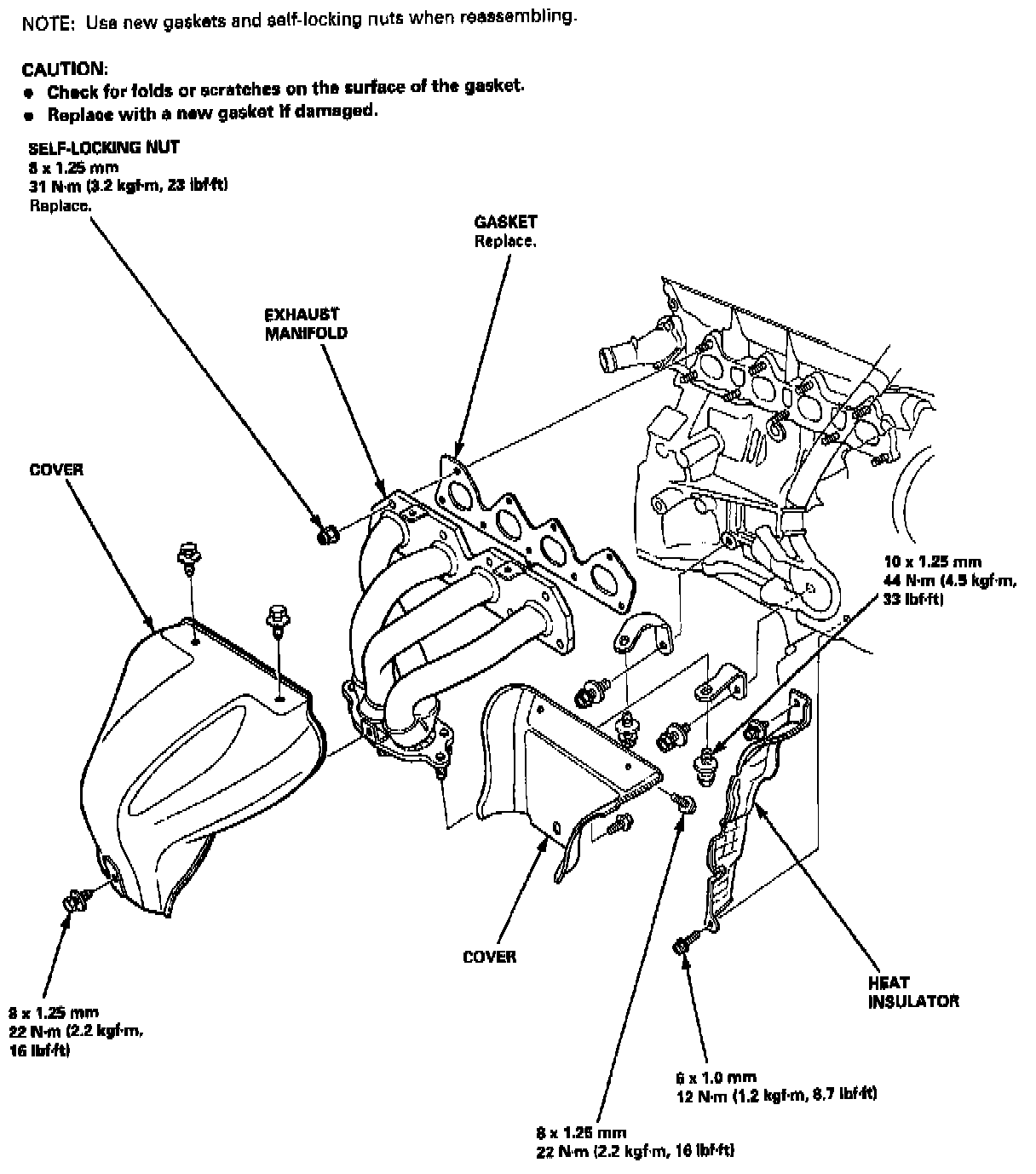

Exhaust Manifold

Timing Components:

Timing Components

Lower Engine:

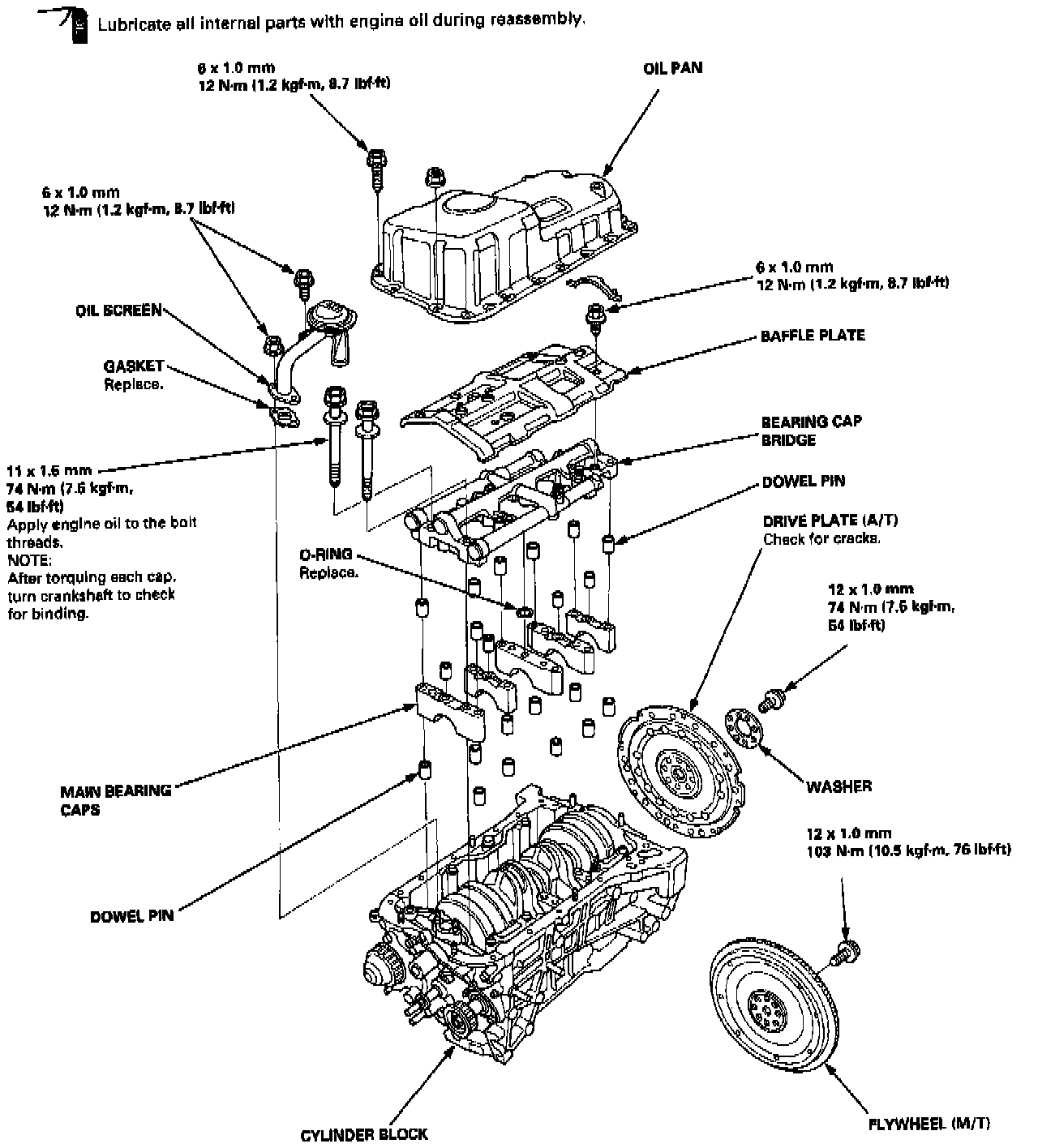

Oil Pan and Lower Block Assembly





Oil Pump, Balancer, and Rear Cover





Oil Jet and Breather Covers





Connecting Rod Bolts

Flywheel (M/T) Torque/Sequence:

Flywheel M/T

Drive Plate (A/T) Torque/Sequence:

Drive Plate A/T
