Driver's Dashboard Lower Cover Removal/Installation

Driver's Dashboard Lower Cover Removal/Installation

SRS components are located in this area. Review the SRS component locations, and precautions and procedures in the SRS section before performing repairs or service.

NOTE:
- When prying with a flat-tip screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
- Take care not to scratch the dashboard and related parts.

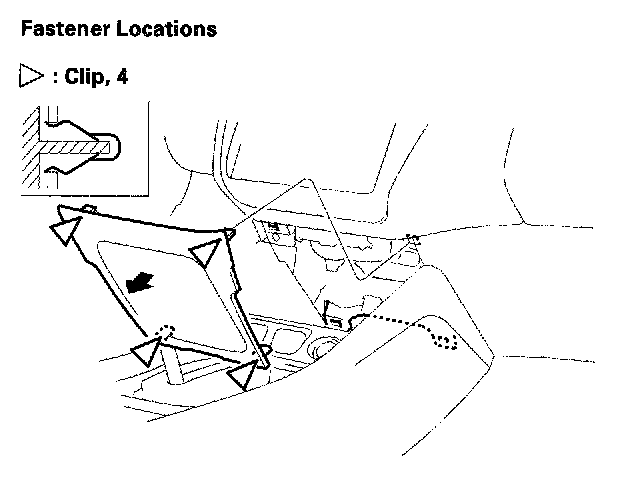

1. Detach the clips, then remove the dashboard center lower cover.

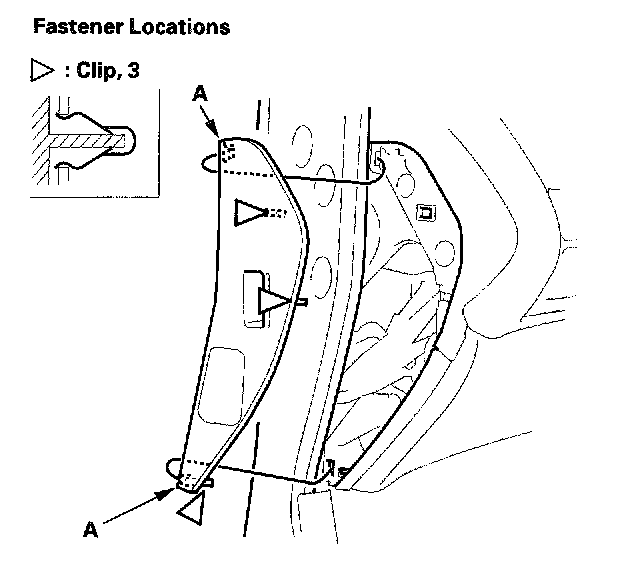

2. Detach the clips, and release the tabs (A), then remove the left fuse box cover.

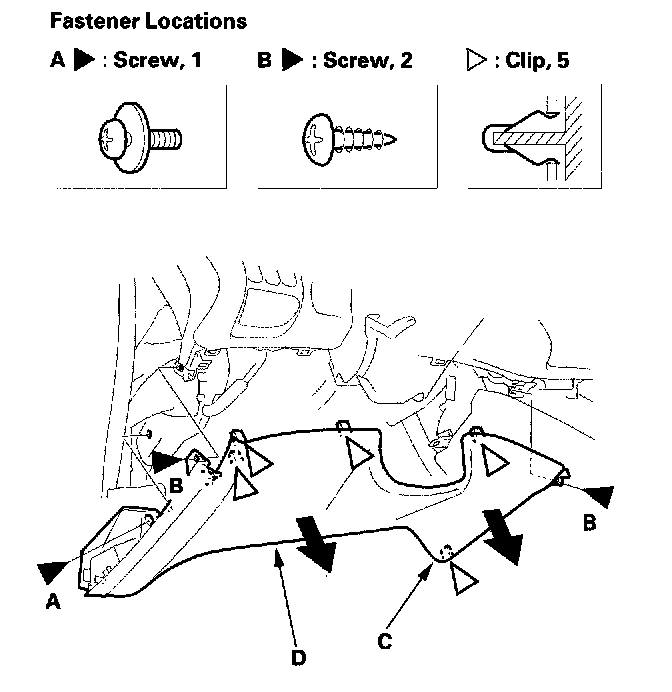

3. Remove the screws (A and B).
4. Detach the lower right clip (C) first by pulling down on the driver's dashboard lower cover (D), then detach the remaining clips and remove the lower cover.
5. Install the lower cover in the reverse order of removal.
