Lower Arm

Replacement
1. Raise the rear of the vehicle, and make sure it is securely supported. Remove the rear wheel.

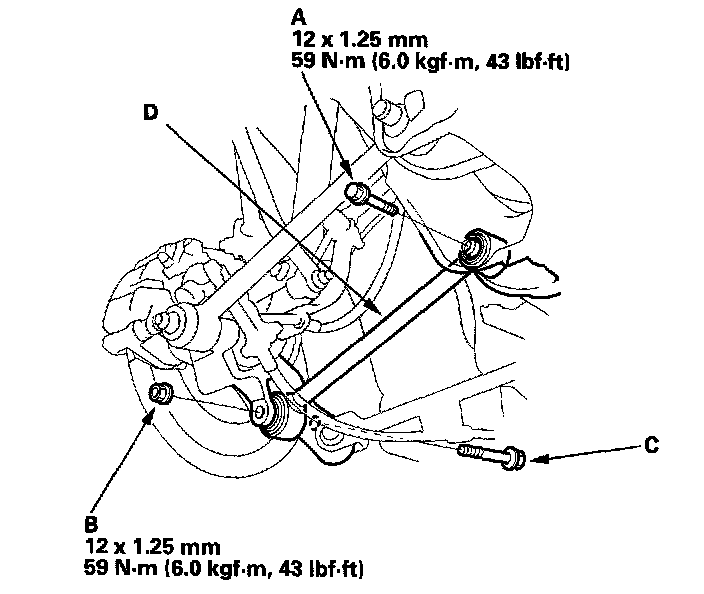

2. Remove the lower arm mounting bolt (A).
3. Remove the lower arm mounting nut (B) and mounting bolt (C).





4. Remove the lower arm (D) from the vehicle.
5. Install the lower arm in the reverse order of removal, and note these items:
- Tighten all mounting hardware to the specified torque values.
- Before installing the wheel, clean the mating surfaces on the brake disc and the inside of the wheel.
- Check the rear wheel alignment, and adjust it if necessary.
