Radiator Cooling Fan: Service and Repair

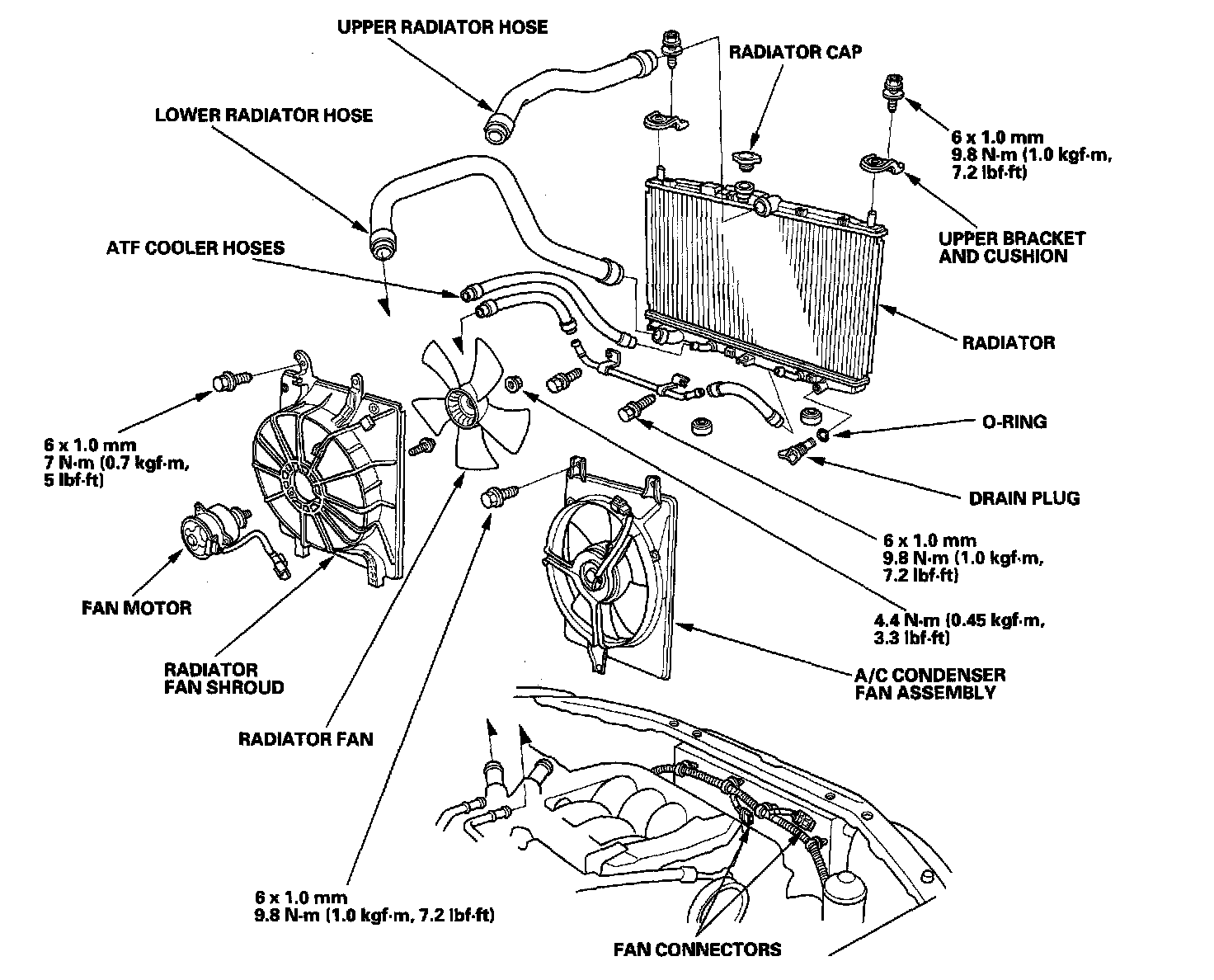

Radiator and Fans Replacement
1. Drain the engine coolant.
2. Remove the upper and lower radiator hoses, and ATF cooler hoses.
3. Disconnect the fan motor connectors.
4. Remove the radiator upper brackets, then pull up the radiator.
5. Remove the fan shroud assemblies and other parts from radiator.
6. Install the radiator in the reverse order of removal.
7. Set the upper and lower cushions securely.
8. Fill the radiator with engine coolant and bleed the air.
