Keyless Entry Module: Locations

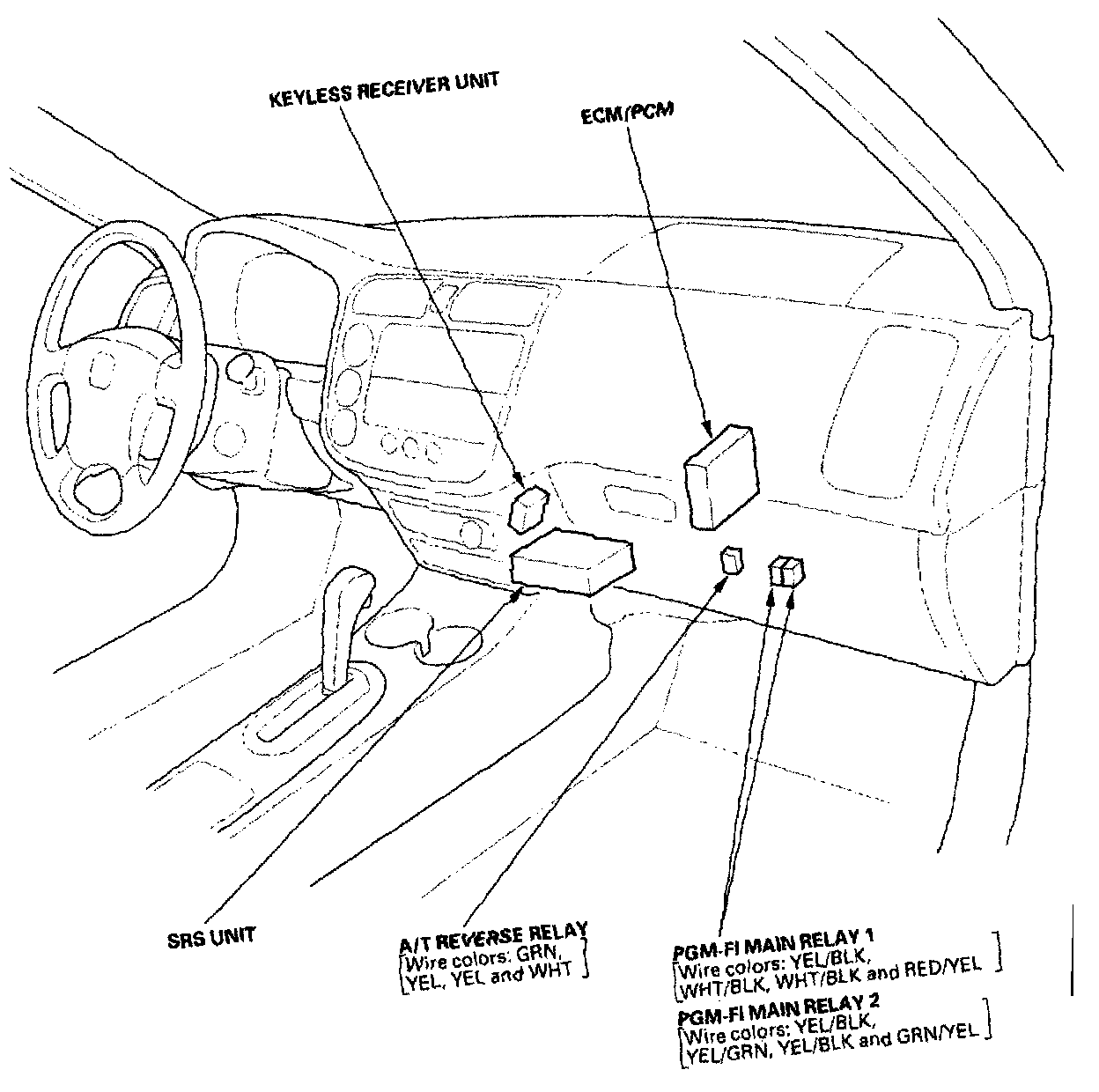

Relay And Control Unit Locations - Dashboard:

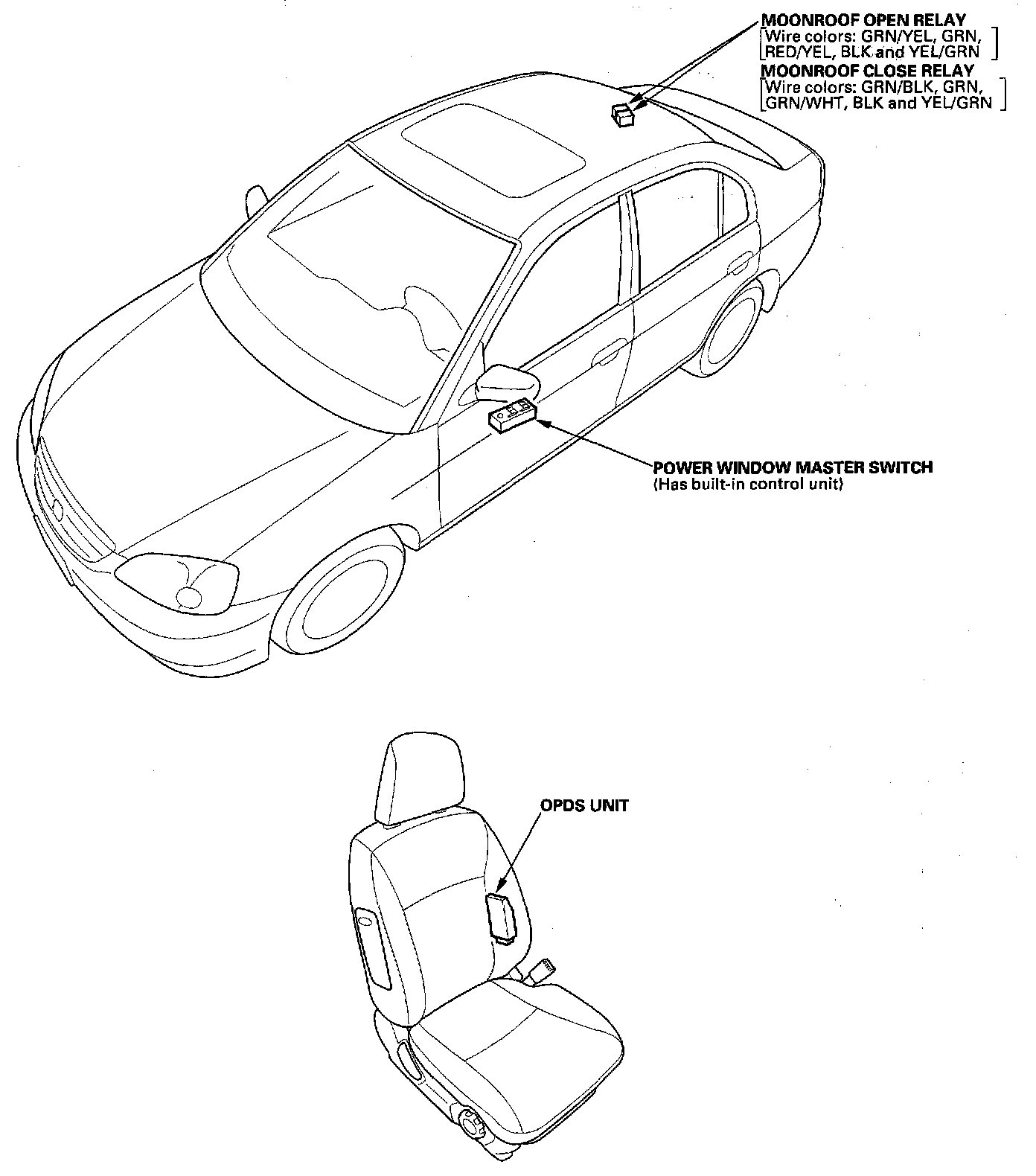

Relay And Control Unit Locations - Door, Roof And Seat:

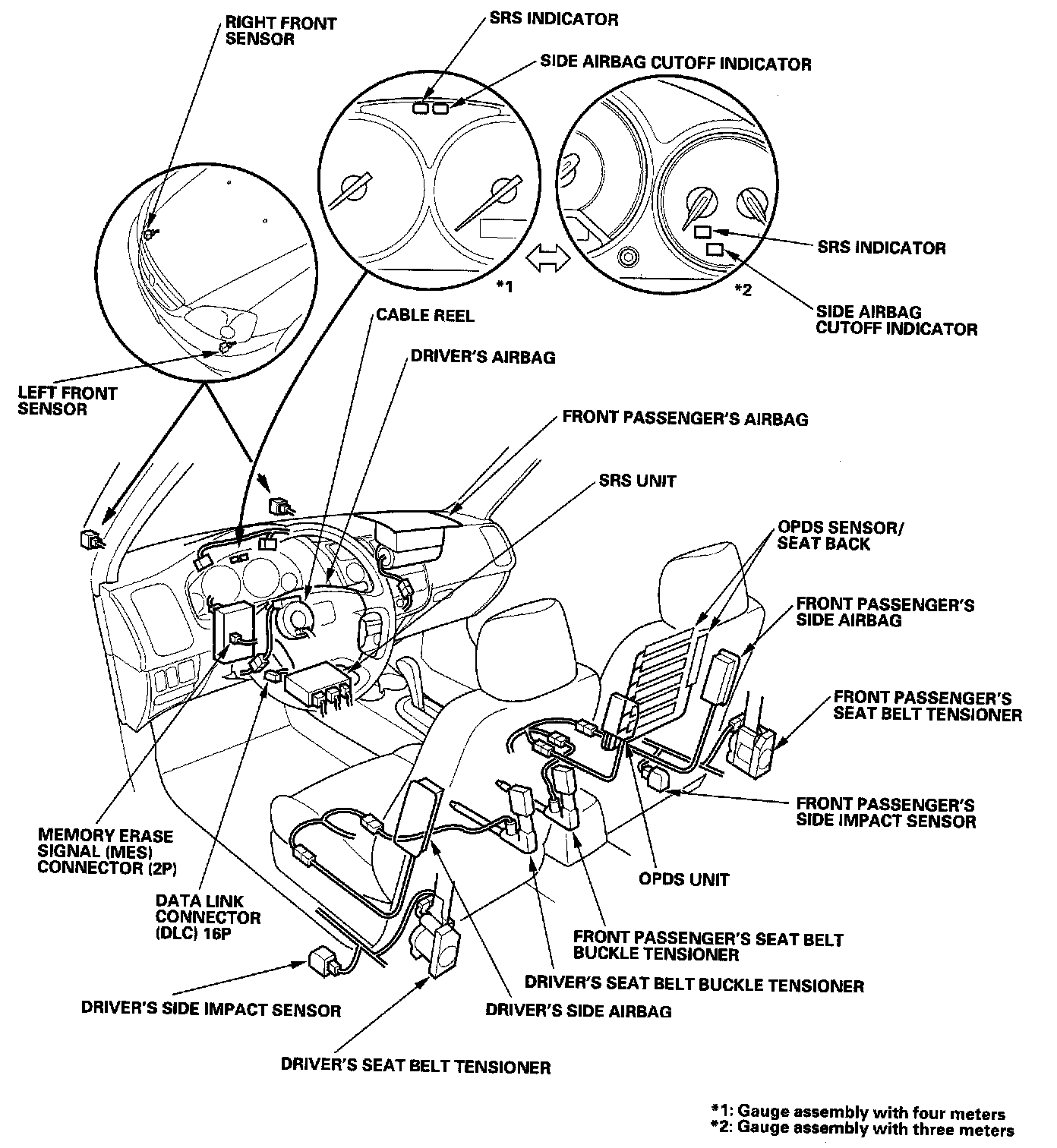

SRS Component Location Index:

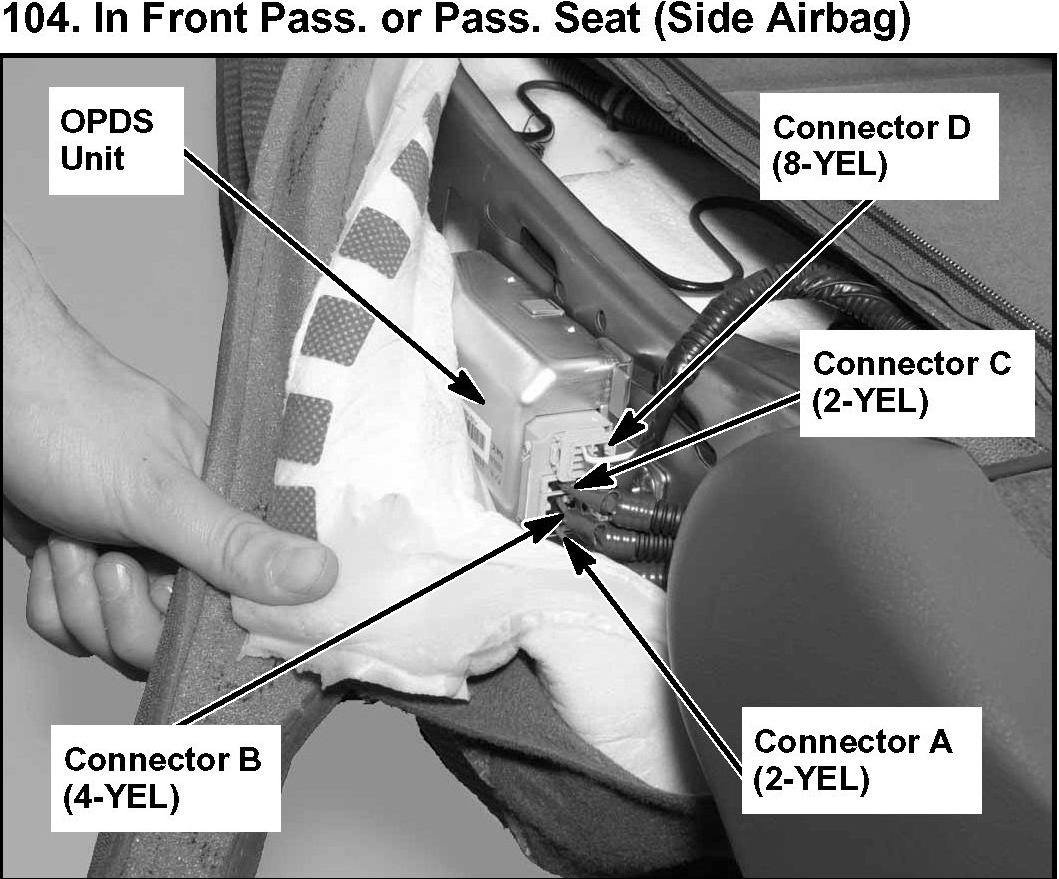

104. In Front Pass. Or Pass. Seat (Side Airbag):
