Impact Sensor: Diagrams

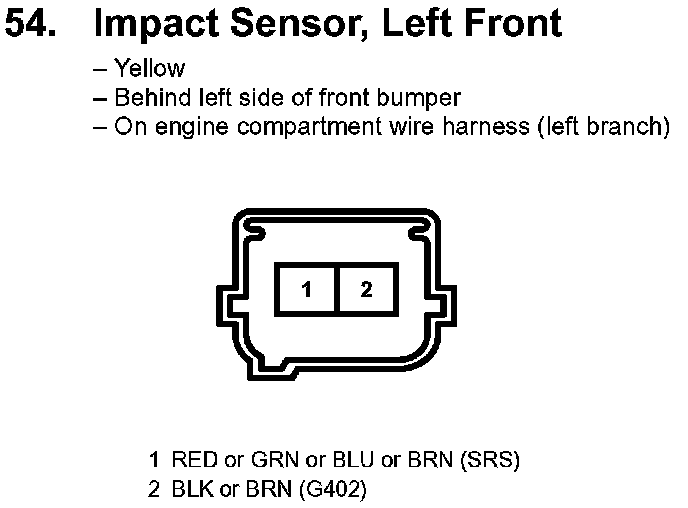

54. Impact Sensor, Left Front:



55. Impact Sensor, Right Front:

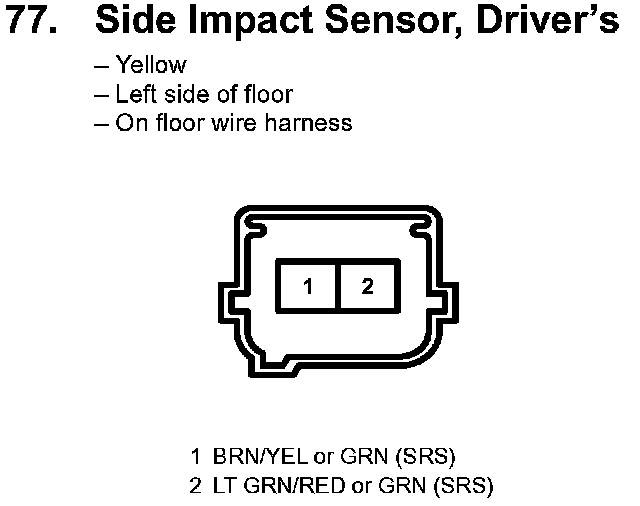

77. Side Impact Sensor, Driver's:

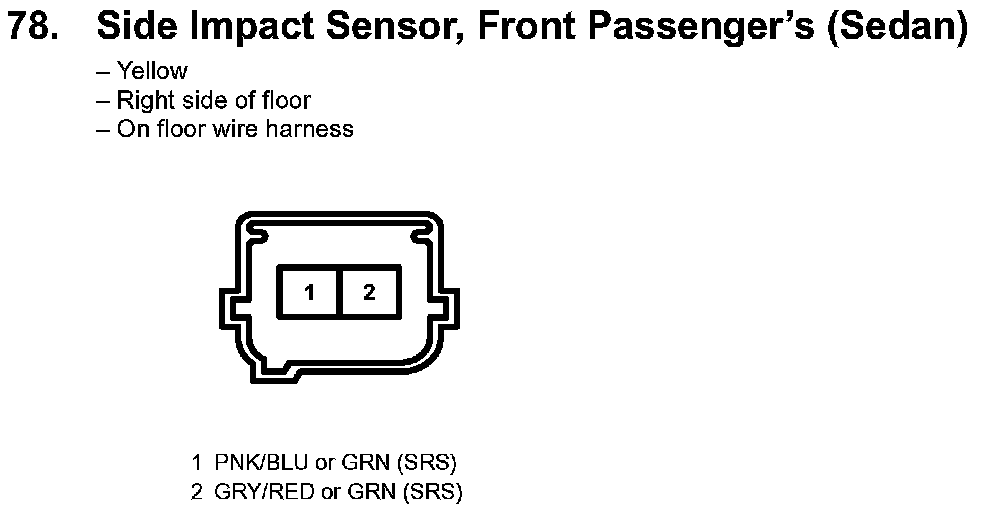

78. Side Impact Sensor, Front Passenger's (Sedan):

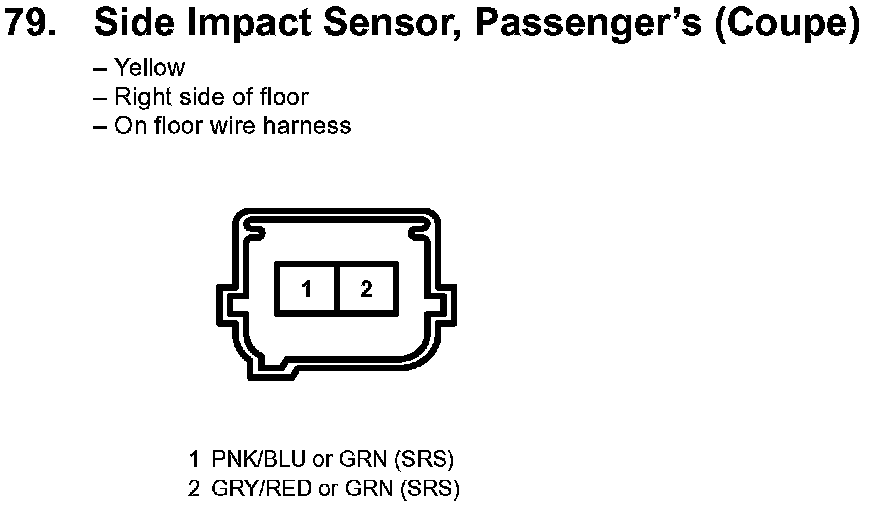

79. Side Impact Sensor, Passenger's (Coupe):
