Home >> Honda >> 2001 >> Odyssey LX V6-3.5L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Keyless Entry >> Keyless Entry Module

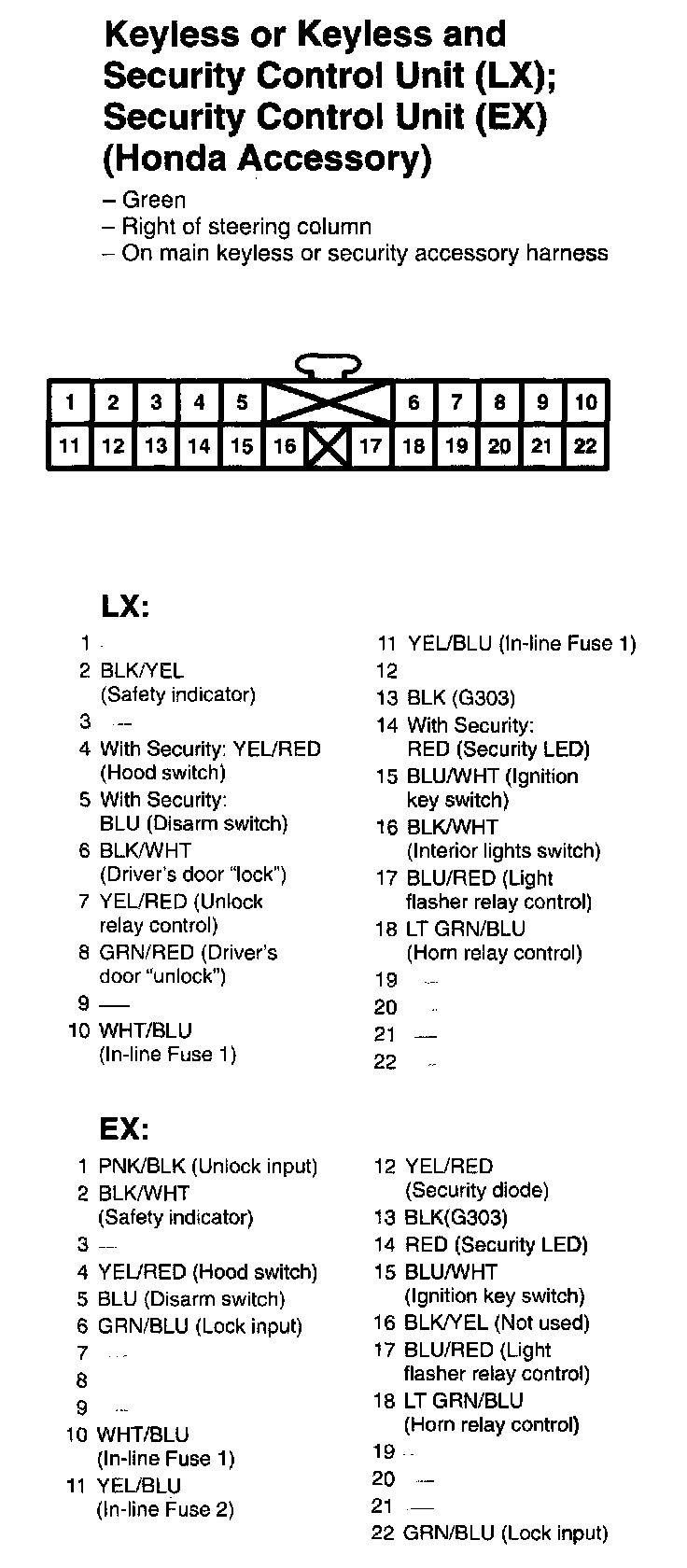

Keyless Entry Module





Keyless Or Keyless And Security Control Unit; Security Control Unit (Honda Accessory):
