Trunk / Liftgate Switch
Trunk / Liftgate Switch

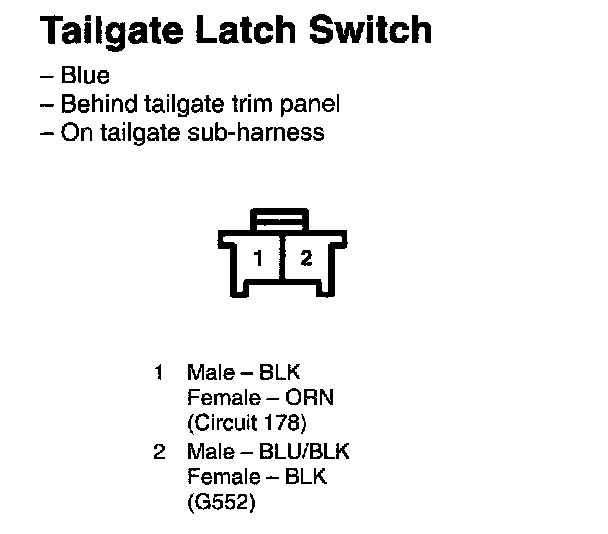

Tailgate Latch Switch:
Tail Key Cylinder Switch:

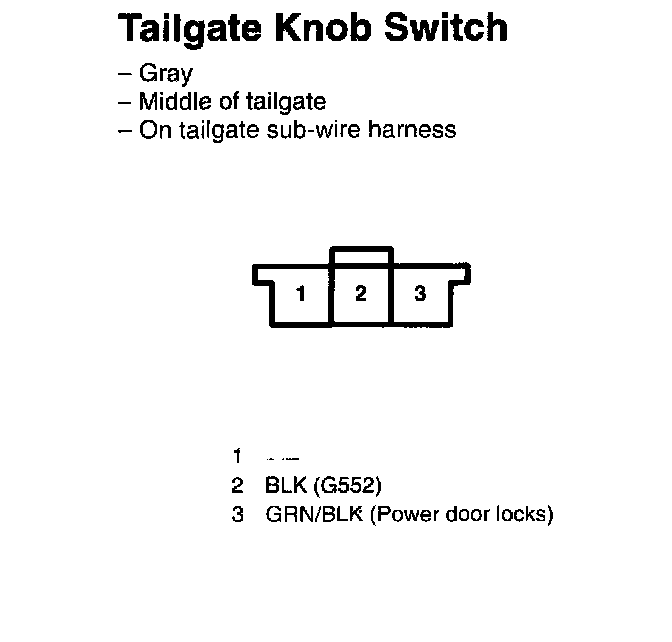

Tailgate Knob Switch:
