Console

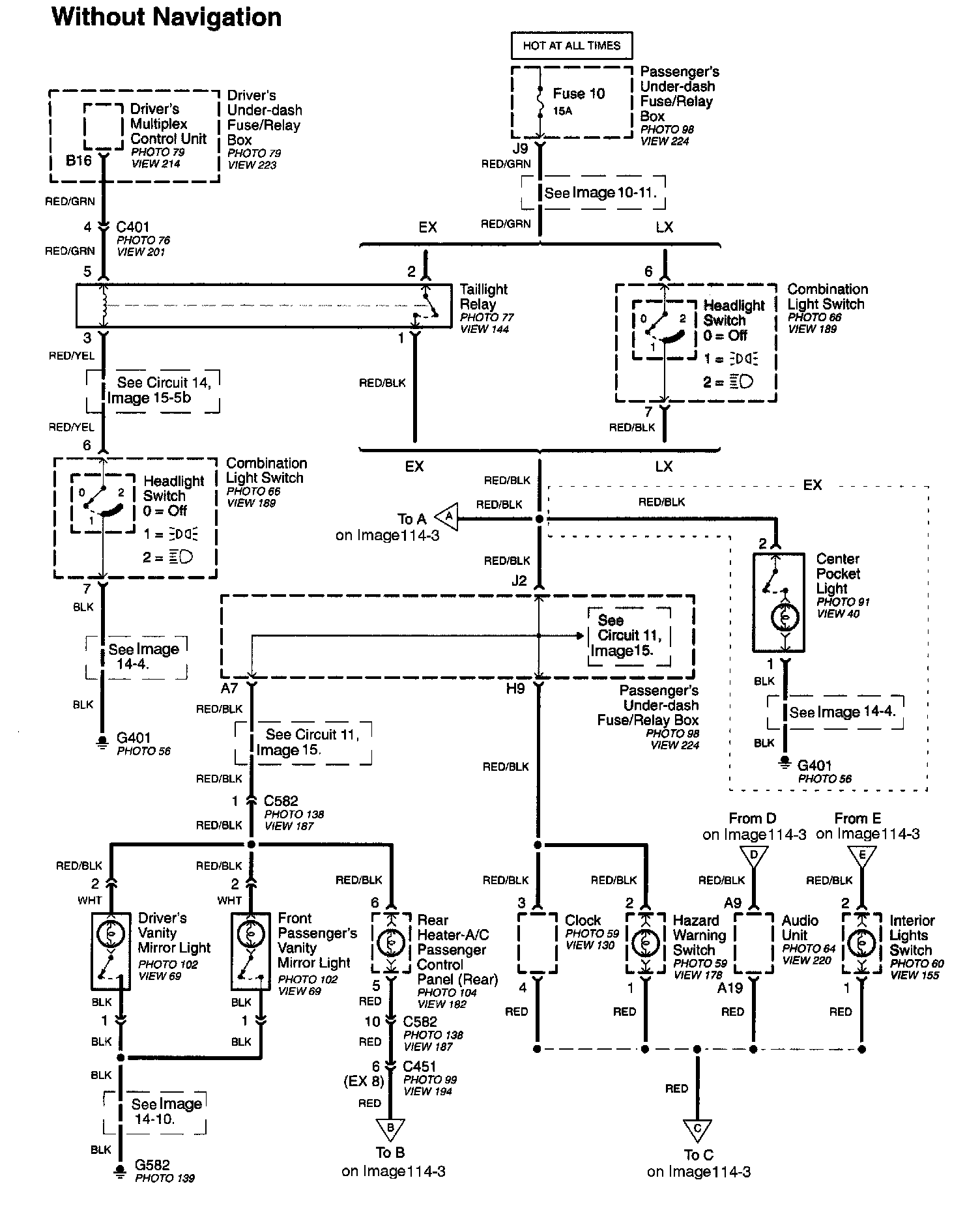

Dash And Console Lights (Without Navigation) Image 114-2:

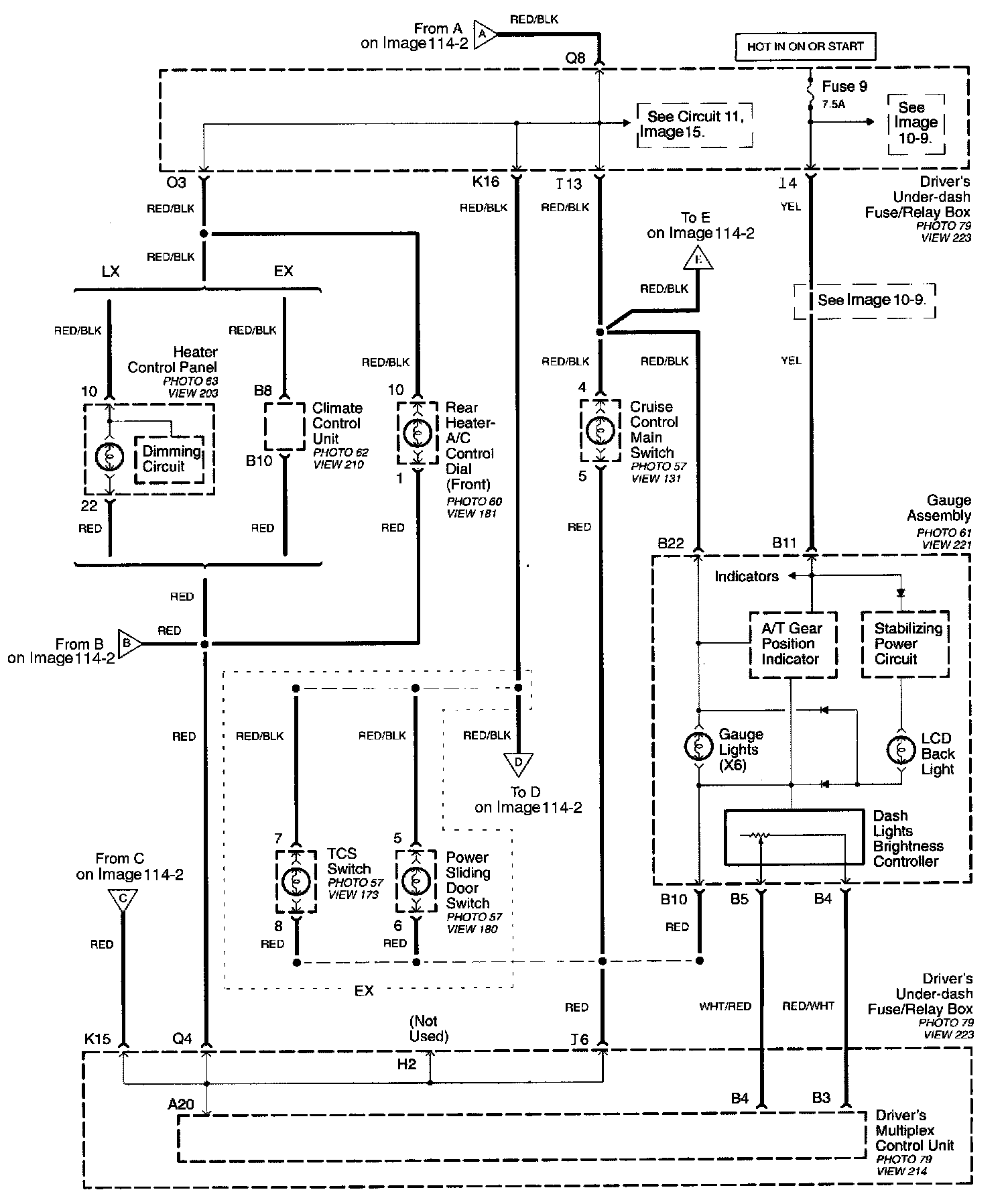

Dash And Console Lights (Without Navigation) Image 114-3:

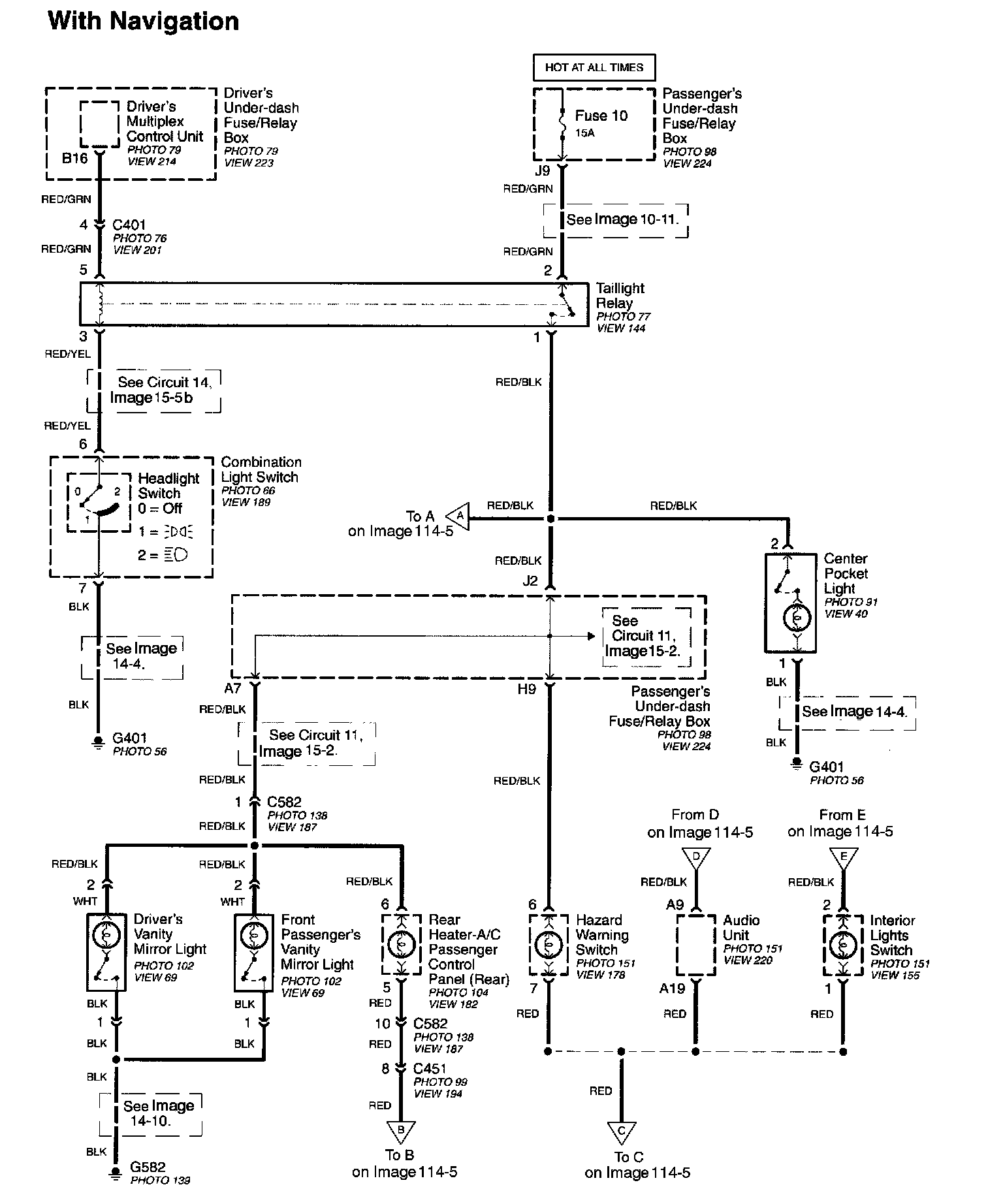

Dash And Console Lights (With Navigation) Image 114-4:

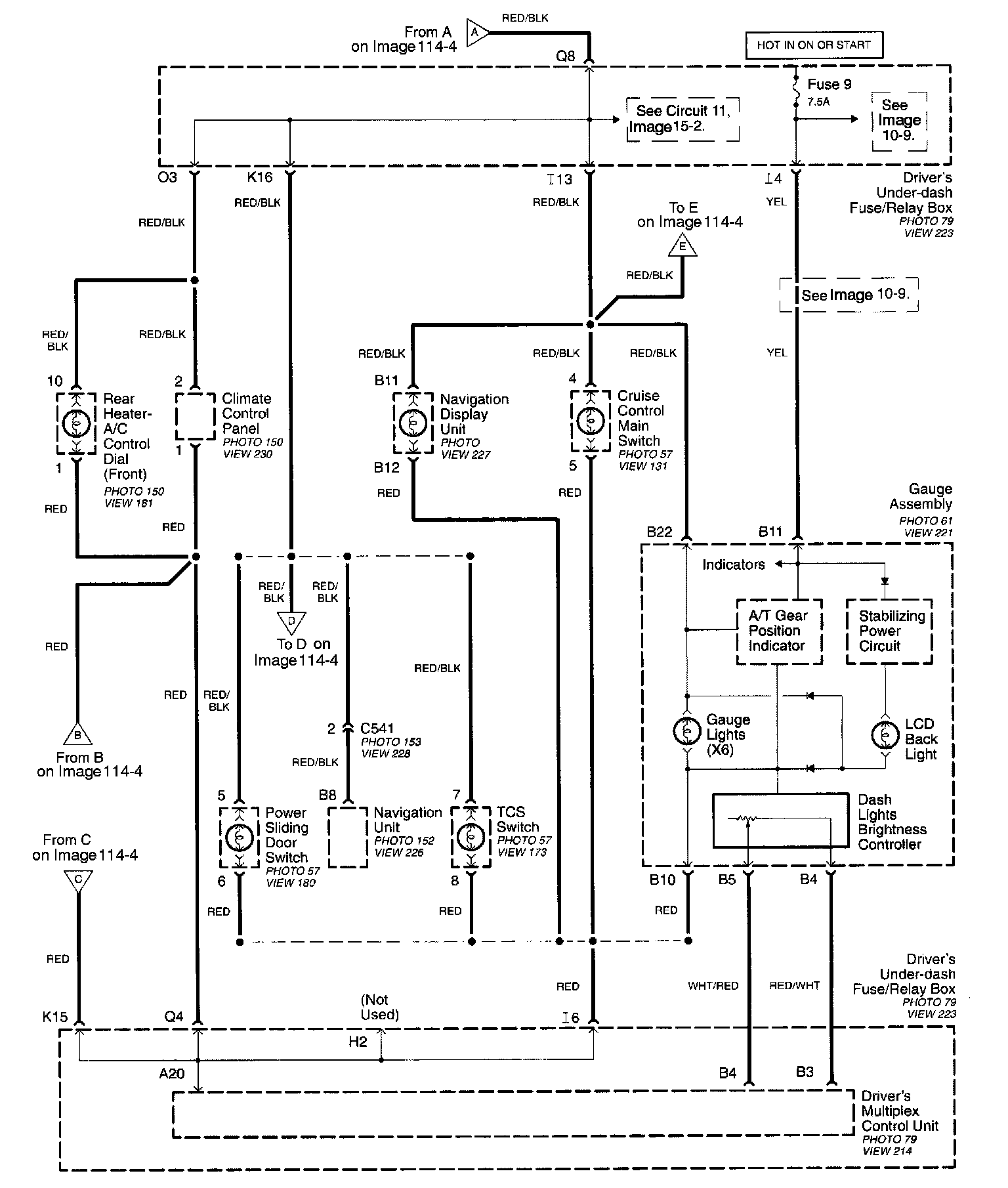

Dash And Console Lights (With Navigation) Image 114-5:

Dash Lights Brightness Controller - Circuit Diagram:
