Interior Lighting Module: Testing and Inspection
Control Unit Input Test1. Before testing the entry light control functions, troubleshoot the multiplex control system.
Multiplex Control Unit, Driver's:
2. Remove the driver's unit from the driver's under-dash fuse/relay box.
3. Inspect the connector and socket terminals to be sure they are all making good contact.
- If the terminals are bent, loose or corroded, repair them as necessary, and recheck the system.
- If the terminals look OK, go to step 4.

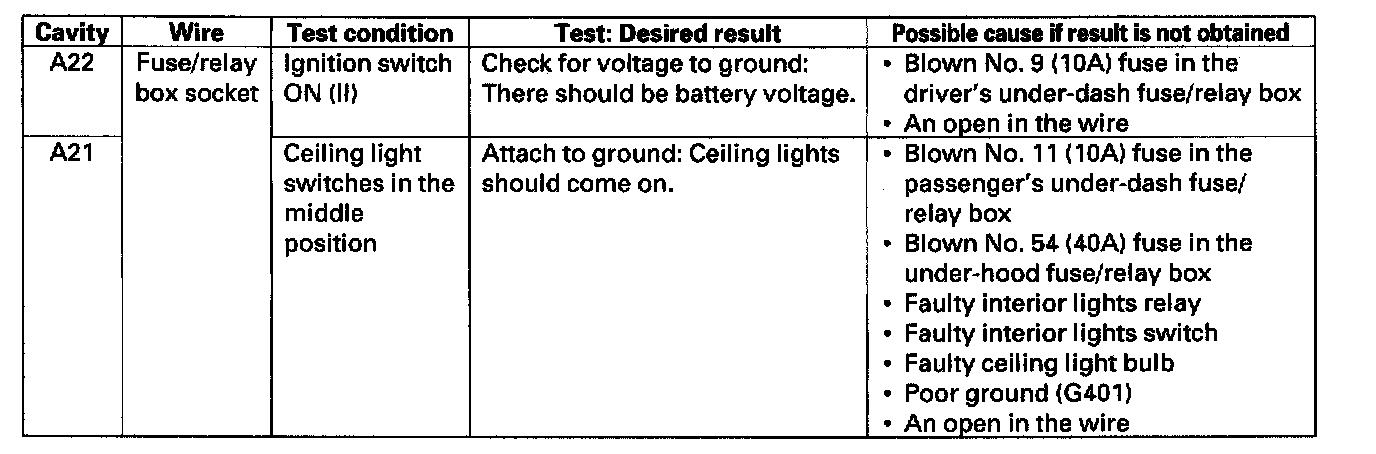

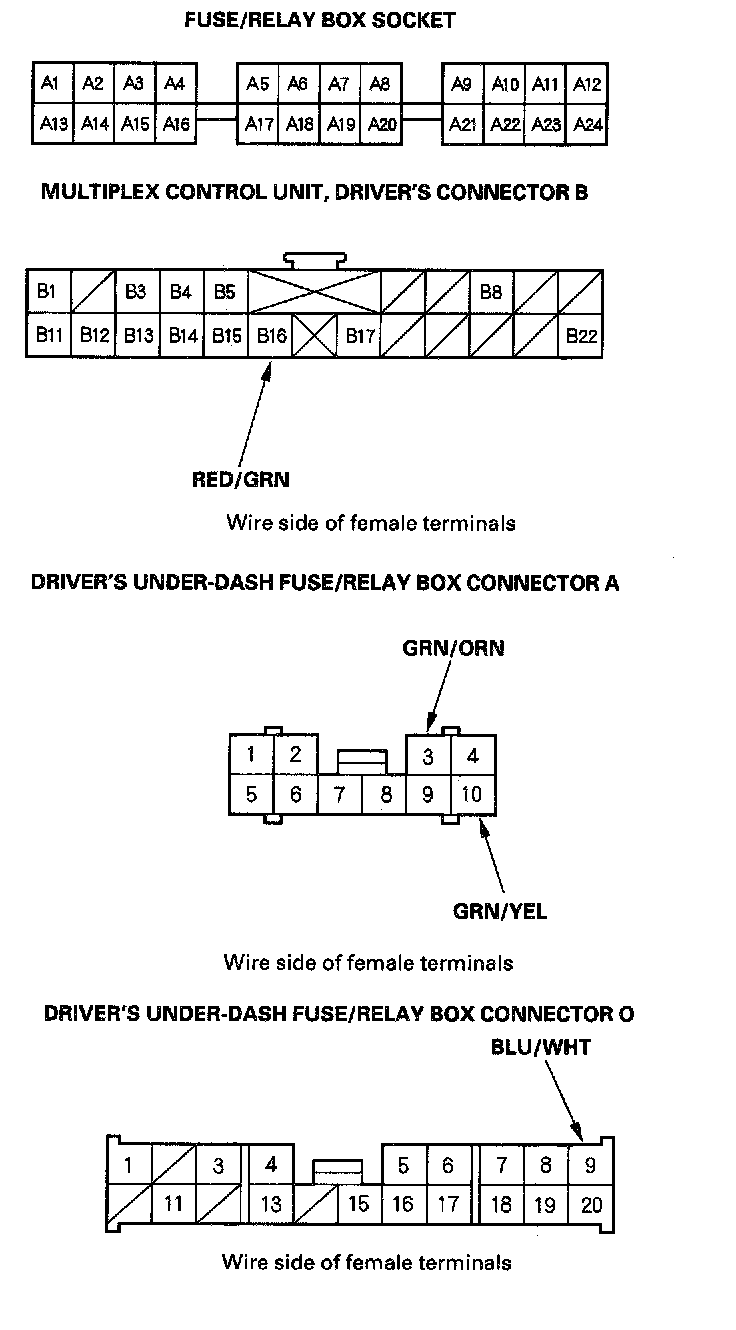

4. With the driver's unit still disconnected, make these input tests at the connector and fuse/relay box socket.
- If any test indicates a problem, find and correct the cause, then recheck the system.
- If all the input tests prove OK, go to step 5.

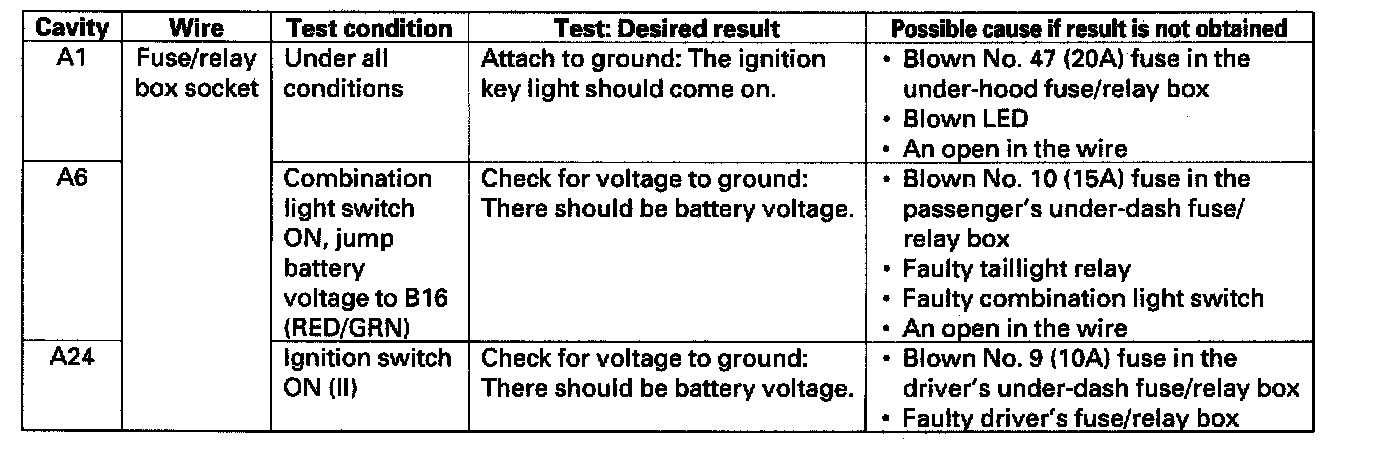

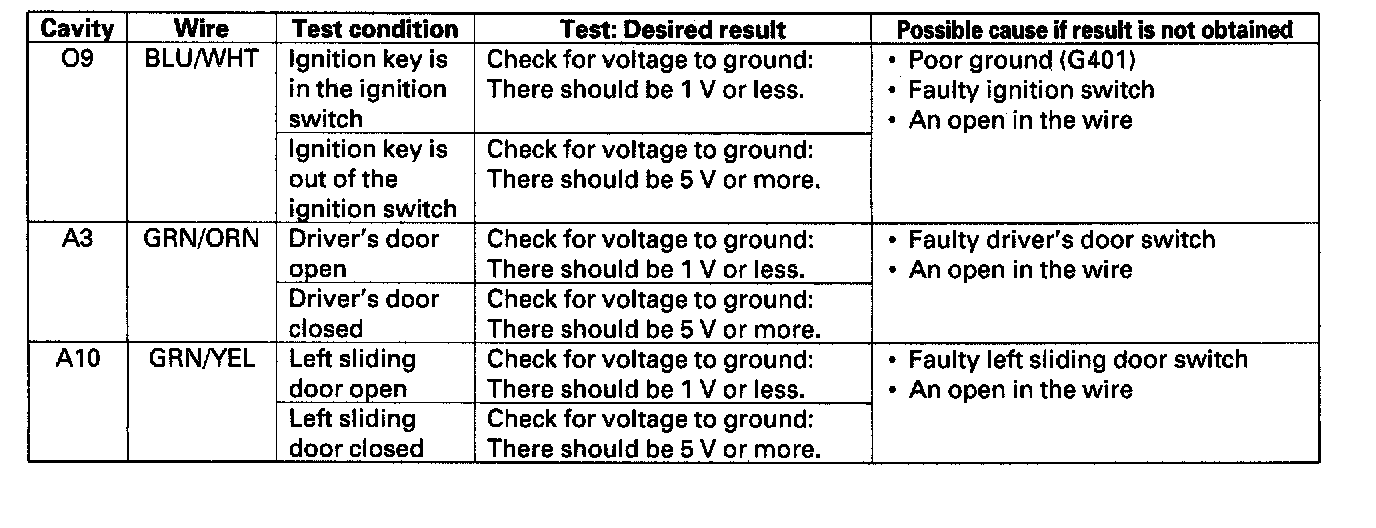

5. Reconnect the driver's multiplex control unit to the fuse/relay box, and perform the following input tests at the appropriate connectors on the back of the fuse/relay box.
- If any test indicates a problem, find and correct the cause, then recheck the system.
- If all the input tests prove OK, go to step 6.
Multiplex control unit, Passenger's:
6. Remove the passenger's unit from the passenger's under-dash fuse/relay box, and disconnect its connector.
7. Inspect the connector and socket terminals to be sure they are all making good contact.
- If the terminals are bent, loose or corroded, repair them as necessary, and recheck the system.
- If the terminals look OK, go to step 8.

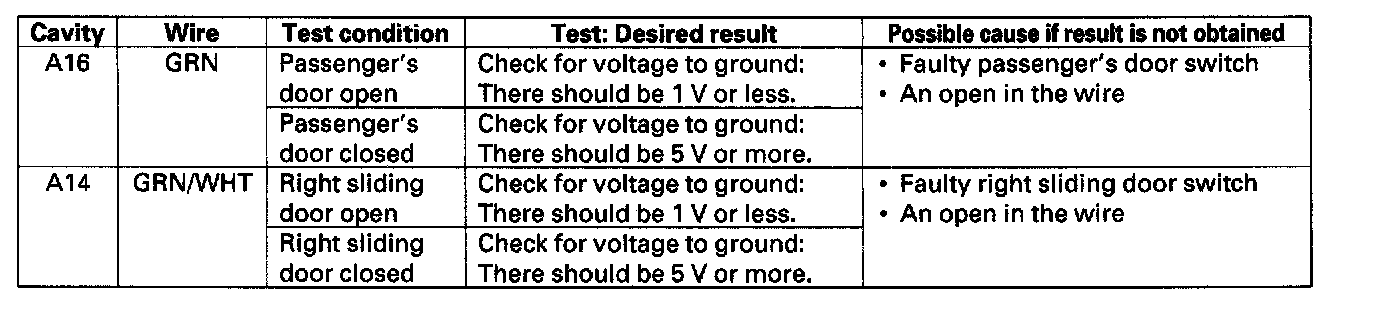

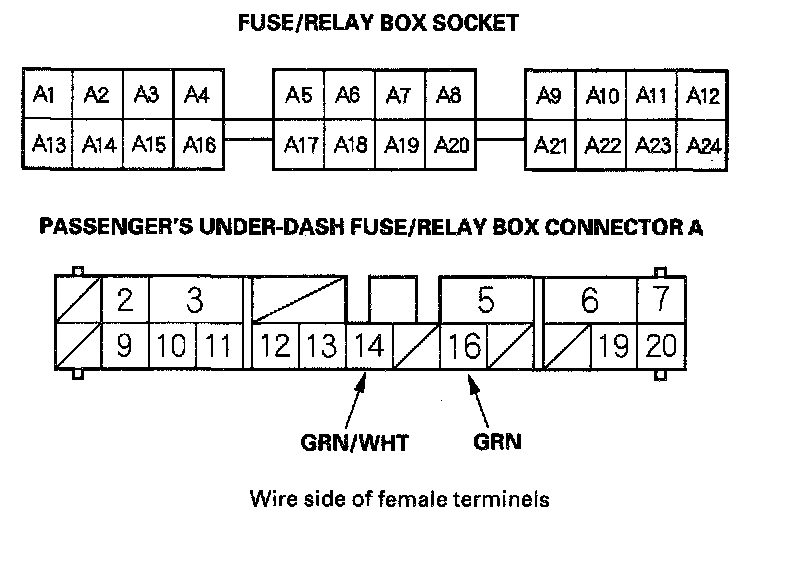

8. With the control unit still disconnected, make these input tests at the connector and fuse/relay box socket.
- If any test indicates a problem, find and correct the cause, then recheck the system.
- If all the input tests prove OK, go to step 9.
9. Reconnect the passenger's multiplex control unit to the fuse/relay box, and perform the following input tests at the appropriate connectors on the back of the fuse/relay box.
- If any test indicates a problem, find and correct the cause, then recheck the system.
- If all the input tests prove OK, go to step 10.
Multiplex Control Unit, Door:
10. Remove the driver's door panel and disconnect the 20P connector from the door unit.
11. Inspect all connector and socket terminals to be sure they are making good contact.
- If the terminals are bent, loose or corroded, repair them as necessary, and recheck the system.
- If the terminals look OK, go to step 12.

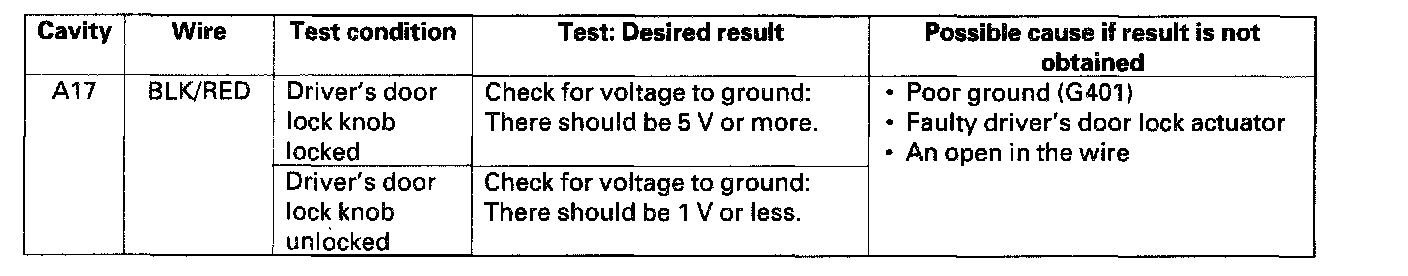

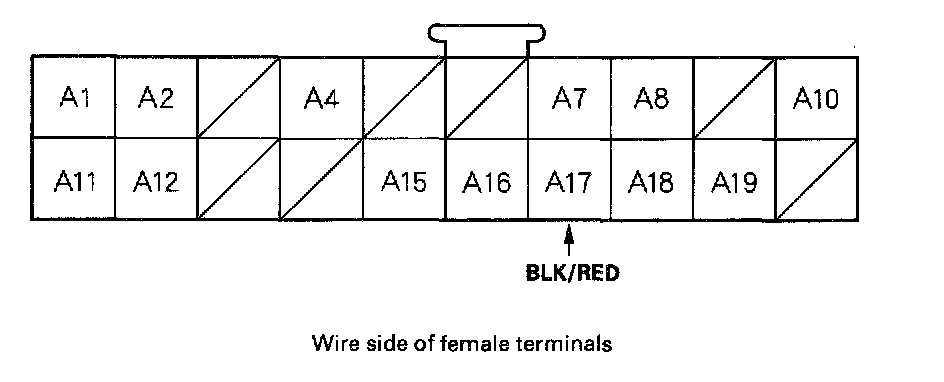

12. Reconnect the connectors to the door unit, and make the input test at the connector.
- If a test indicates a problem, find and correct the cause, then recheck the system.
- If the input test prove OK, go to step 13.
13. If all the input tests prove OK, one of the control units must be faulty. Substitute a known-good control unit for the one that is most likely at fault, then recheck the system. If the system works properly, the original control unit is faulty; replace it. If there is still a malfunction, substitute a known-good control unit for the next most likely unit to be at fault, and recheck. If the system works properly, the original unit is faulty; replace it.
